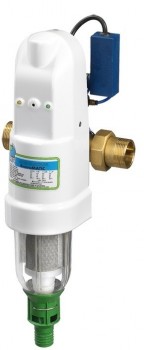

Bravomatic backwash filter (automatic) operating pressure: 10 bar - flow rate: 3000 - 7000 l/h

Bravomatic backwash filter (automatic) operating pressure: 10 bar - flow rate: 3000 - 7000 l/h

Bravomatic backwash filter (automatic) operating pressure: 10 bar - flow rate: 3000 - 7000 l/h

Uses:


Industrial water
Well water
Cooling water
Hydraulic systems
Pipelines
For filtering
Sand grains
Mud components
Chips
Rust particles
category_280962.jpg?time=1533654418

Product properties:

Filter head Polyacetal
Thread material (male thread) Brass
Filter cartridge Inox 304 - 90µm
Filter bowl Trogamid
Maximum operating temperature (°C) 80ºC
Maximum operating pressure (bar) max. 10 bar
Minimum operating pressure (bar) min. 1,5 bar
Pressure drop (bar) 0,2 bar



Dimensions:

SF-Article Flow rate (l/h) Male thread in inches (BSP) A (mm) B (mm) C (mm) D (mm) E (mm) F (mm)
WF/BRAVOMATIC-¾" 3000 l/h ¾" 175 440 160 180 170 260
WF/BRAVOMATIC-1" 4000 l/h 1" 175 440 160 180 170 260
WF/BRAVOMATIC-1¼" 5000 l/h 1¼" 175 440 160 180 170 260


Spare parts and accessories on request.
