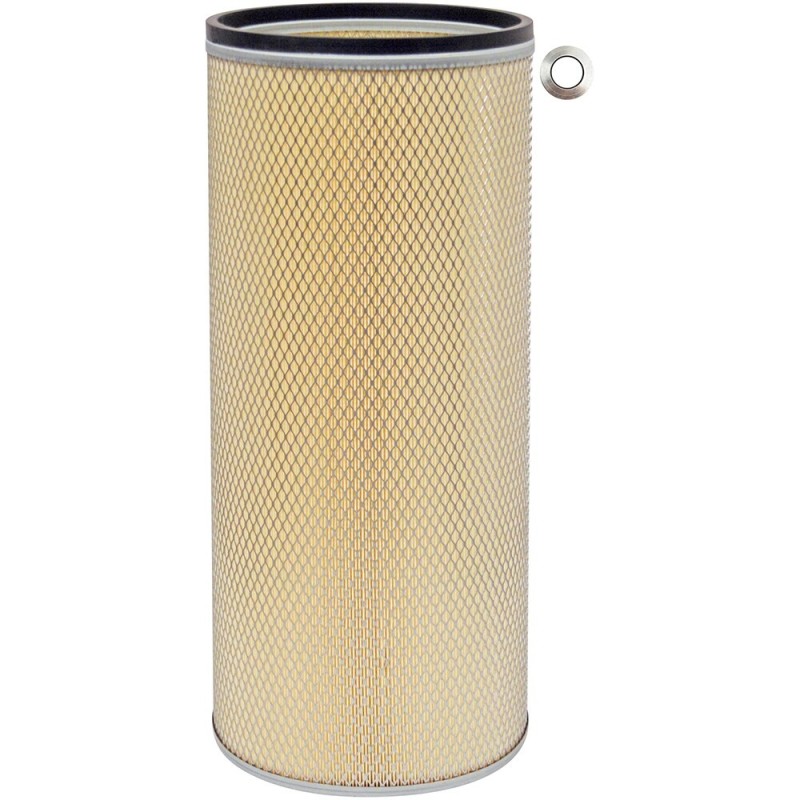

Baldwin PA2563, Inner Air Filter Element
50,69 £
Impuestos excluidos
Specifications
Length
571.5 mm (22.5 inch)
Overall Diameter
260.3 mm (10.25 inch)
Internal Diameter
23 mm (0.91 inch)
Product Type
Inner Air Element
Outside Diameter
10 1/4 (260.3)
Inside Diameter
29/32 (23.0) & 9 1/8 (231.8)
Gasket
Attached Gasket: [1] Attached; Furnished Gasket: [1] Included
Application
Caterpillar, Hitachi, Ingersoll-Rand, Koehring, Terex, Wabco Equipment
Compatible Competitor Part Number
Caterpillar 1N4864; Ingersoll-Rand 35298116; WABCO VE1061
Available in these brands
Cross References
ACDELCO
A954C
AIR REFINER
ARM128408
AIR SUPPLY COMP
121877
AMC
AE23160
AMERICAN PARTS
1582
93259
ASTEC
3018051124
ASTRA
98341524
ATLAS COPCO
1610413102
2652146966
AVELINGBARFORD
ABP3001559
BALDWIN
50010711
PA2563
BELL
220133
BIG A FILTER
93545
BITELLI
481228
BOMAG
901V2978
BOWES
LAF8408
CAMECO
61380377
CANADIAN FILTER CO
CFM885
CARQUEST
87259
87545
CASE
84428273
CASE-IH CNH
73170676
S6150584
CATERPILLAR
1N4864
2592023
3I0215
405523
4Q5523
CMI
P1023185121
COMPACTION AMERICA
330183813
CONTINENTAL
PCA2595SY
COOPERS
AES2015
CUMMINS
3013213
4020552
DEMAG
76141673
DONALDSON
G161006
G161020
P128406
P128408
P136991
P151966
P155698
STG161006
STG161010
DRESSER
1236971H1
DRILTECH
21237052
DYNAPAC
D964164810
ENMTP CPG
550799508
ERF (E.R.F.)
1485278
EUCLID
12570267
40416000
62414065
9053258
EUROFILTER
6117
F.G. WILSON
901051
FAMEL
FR1024
FAUN FRISCH
747083
FLEETGUARD
8200016
AA2903
AA2905
AF1604
AF4603
AF4603M
FLEETLIFE
FA8408
FLEETRITE
AAR82903
AAR82905
AFR81604
AFR84603
FMC
3A11533
FODEN
Y05761506
FORD
9576P128408
FRAM
CA2595SY
FREIGHTLINER
DNP128408
PPP128408
FURUKAWA
8970716103
GENERAL MOTORS CORP
25043781
9049958
GFF
AF559232
GIF
GA716
GONHER
GA242
GPC
FC610
GRAINGER
2NUY2
GUARDIAN FILTER CO
G128408
GUASCOR
7650184
7650279
HASTINGS PREMIUM FILTERS
AF659
HAVAM
HD7760
HEAVY DUTY AIR
A6991
A8408
HDA6991
HDA8408
HIFI
SA11554
HITACHI
4206273
E12570267
EU12570267
L4206273
X4206273
INGERSOLL
35298116
52146966
90305129
INGERSOLLRAND
39189055
JOHN DEERE
AT254113
AT280661
JOY
45906
KELTEC
KC265023
KOMATSU
2090178270
3090178270
848100087
KRALINATOR
LA885
KYSOR
460C044
LIEBHERR
5507995
550916414
7364870
LOESING
21015
MACK
3076CA2595SY
MAN
82083040003
MERTZ
2296568
MICRONIC-FILTER
2A0552
MORBARK
29321256
NAPA GOLD
2259
2545
NELSON
84723S
NUTECH
SS082
O & K
1413767
OCUATRO
ES430
ORENSTEIN KOPPEL
101157
OSHKOSH
3HA621
PERLINI
7W23A002
PUROLATOR
6948183
A73502
AF3502
REFILCO
AF2259
REICHDRILL
93PS4670
PS467093
RENAULT TRUCKS
5001845064
REYTOR
IT128408
RUSTON BUCYRUS
46163504
62303703
RYCO
HDA5494
SAKURA
A5715
A5718S
SANDVIK
SC4710053
SCHRAMM
50007894
SDMO
330570141
SF
SL8878
SISU
1293400342
SOFIMA
S7308A
SURE FILTER TECHNOLOGY
SFA1042SET
SFA8408S
TAMROCK
4710053
511191
TATA HITACHI
1107312
TAYLOR
4044915
TEREX
9052358
RD45906
TODD GT
2242907
TROJAN
461078400
UFI
2730800
UNITED CENTRAL INDUSTRIAL SUPP
686780
VERMEER
220166009
2201660091
407124001
VERSATILE
9809800
VIBROMAX
0403320034
VMC
AF128408
VME
VOE11033951
VOEGELE
507153
VOLKSWAGEN
22S129609
VOLVO
11033951
110339512
11705911
14515424
59144147
6241406
70320450
8032398
VOE11705911
WABCO
VE1061
WALGAHN-MOTORENTECHN
810708
810874
WHITE
303090604
WIRTGEN
91173
WIX
42259
42545
WOODGATE
WGA477S
WORKHORSE CUSTOM CHASSIS
W0000509
RICO Europe is an independent supplier. OEM names & part numbers are for reference only and do not imply affiliation.
Machine Details
| Manufacturer | Series | Model | Engine | Year | Serial | |
|---|---|---|---|---|---|---|
| BCMH | BH-Series | BH 8100 | Iveco CURSOR8 | 2003-> | n/a | View |
| BCMH | SB-Series | SB 10000 | Iveco CURSOR13 | 2007->2011 | n/a | View |
| BCMH | SB-Series | SB 9000 | Iveco CURSOR10 | 2004-> | n/a | View |
| BELL | B-Series | B 40 B | Mercedes | n/a | n/a | View |
| BELL | B-Series | B 40 C | Mercedes 442TI | n/a | n/a | View |
| BITELLI | SF-Series | SF 150DC | Mercedes OM 422.901-505LA | n/a | n/a | View |
| BITELLI | SF-Series | SF 150L | Mercedes OM 442LA | n/a | n/a | View |
| BITELLI | SF-Series | SF 200L | Mercedes OM 442LA | n/a | n/a | View |
| BITELLI | SF-Series | SF 200LE | Mercedes OM 502LA | n/a | n/a | View |
| CAT | 800-Series | 854 G | Cat 3508TA | n/a | n/a | View |
| DEMAG | H-Series | H 95 | Cummins KTA19C | n/a | n/a | View |
| EUCLID | R-Series | R 40 | Cummins QSK19 | 1998 | n/a | View |
| EUCLID | R-Series | R 40C | Cummins | n/a | n/a | View |
| HITACHI | EX-Series | EX 1800-2 | Cummins KTA19C | n/a | n/a | View |
| HITACHI | EX-Series | EX 1800-3 | Cummins QSK 19C | n/a | n/a | View |
| HITACHI | EX-Series | EX 1900-5 | Misubishi S12A2-YTAA1 | n/a | n/a | View |
| HITACHI | EX-Series | EX 3500 | Cummins KT38C | n/a | n/a | View |
| HITACHI | EX-Series | EX 8000 | Mistubishi S16RY1TAA22EA | n/a | n/a | View |
| INGERSOLL RAND | HP-Series | HP 1300 BWGM | G.M | n/a | n/a | View |
| INGERSOLL RAND | XP/XHP-Series | XP 1400 BWGM | G.M | n/a | n/a | View |
| KOMATSU | PC-Series | PC 750 SE-6 | Cummins | n/a | n/a | View |
| KOMATSU | PC-Series | PC 750-6 SE | Cummins | n/a | n/a | View |
| LIEBHERR | A/R-Series | R 984 Li | Cummins | n/a | <-990 | View |
| LIEBHERR | R-Series | R 984 LITRONIC | Cummins | n/a | <-990 | View |
| MATROT | M-Series | M 2011 | Deutz | 2003-> | n/a | View |
| MOREAU | LECTRA-Series | LECTRA V2 | Volvo | 2004-> | n/a | View |
| PLAISANCE EQPT | GALOTRAX-Series | GALOTRAX GX 500 | n/a | n/a | n/a | View |
| RIVARD | 1. | 300 TC 150 | Volvo TD121GP | n/a | n/a | View |
| RIVARD | 1. | 400 TR 250 | Volvo TWD1211P | n/a | n/a | View |
| SANDVIK | D-Series | D 45 KS | CATERPILLAR | n/a | n/a | View |
| SANDVIK | D-Series | D 50 KS | CATERPILLAR | n/a | n/a | View |
| SERCEL | NOMAD-Series | NOMAD 65 | VOLVO PENTA TWD1240VE | n/a | n/a | View |
| VANDEL | QS-Series | QS 450 | Cummins QSX15TIER3 | 2008-> | 145411-> | View |
| VANDEL | QS-Series | QS 500 | Cummins QSX15TIER3 | 2008-> | 150221-> | View |
| VANDEL | QS-Series | QS 550 | Cummins QSX15TIER3 | 2008-> | n/a | View |
| VOLVO | A-Series | A 40 | TD121G/TD122-GA/-KFE | n/a | n/a | View |
