OEM QualityBuilt to meet or exceed OEM standards.
Reliable ProtectionEffective filtration to protect your equipment.
Easy InstallationDirect fit for quick and easy servicing.

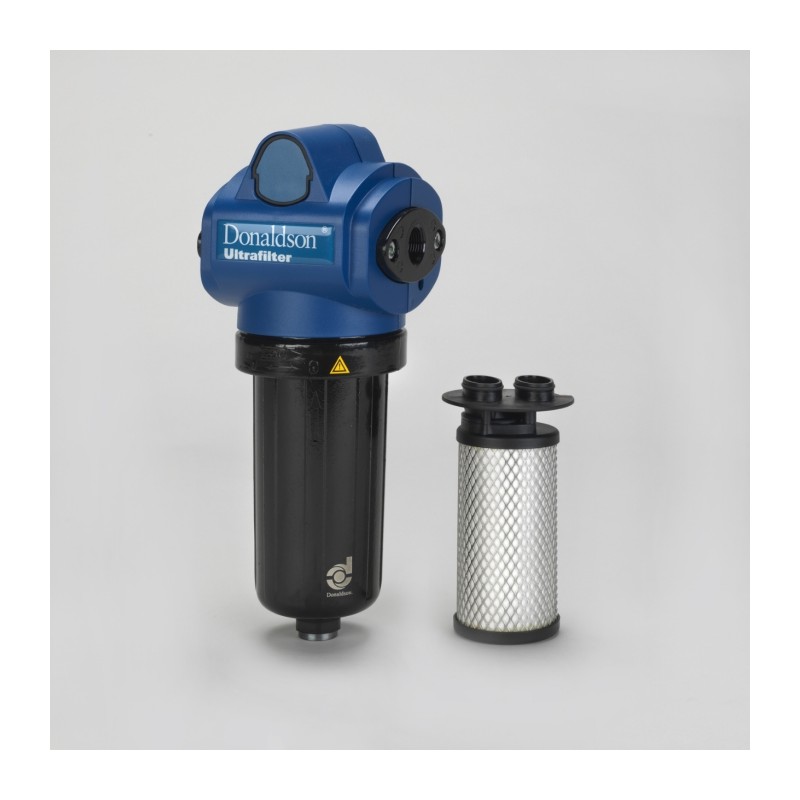

Donaldson 1C484366-KIT FILTER DF-A0210-PS ULTRA-FILTER STANDARD BSP PLUG
626,69 £
Impuestos excluidos
Specifications
Altura
360 mm (14.17 inch)
Part Number
1C484366-KIT
Length
140 mm (5.51 inch)
Country of Origin
Germany
Housing Model
DF
Housing Size
0210
Element Model
A
Element Size
Size 0210
Element Type
DF
Connection Type
G 3/4
Flow Rate Nominal (Air)
210 m³/h
Differential Pressure Gauge
Plate
Drain Type
Plug
Maximum Operating Pressure
16 bar (232 psi)
Maximum Operating Temperature
65 C (149 F)
Minimum Operating Temperature
1 C (34 F)
Filter Housing Material
Aluminum
Housing Gasket Material
Perbunan
Anchura
139 mm (5.47 inch)
Peso
2 kg (4.41 lb)
Drain Connection
G 1/2
PED 2014 68 EU
Yes
EAC
Yes
Available in these brands
| Brand | Reference | Availability | Price |
|---|---|---|---|
|
Donaldson
|
1C484366-KIT | Order on request | 626,69 £ |
Cross References
DONALDSON
1C484366KIT
RICO Europe is an independent supplier. OEM names & part numbers are for reference only and do not imply affiliation.
