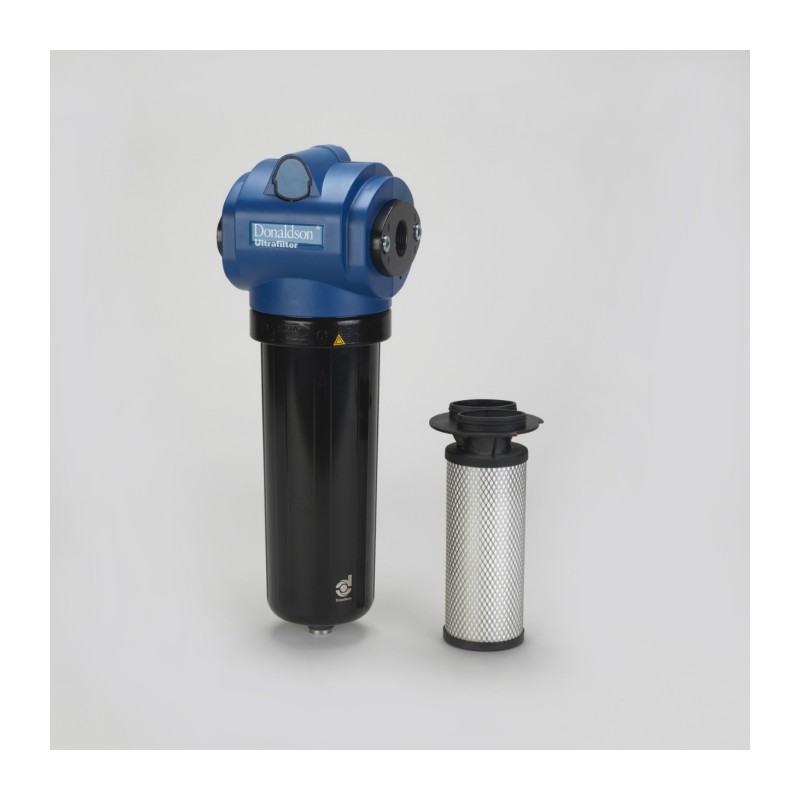

Donaldson 1C484726-KIT FILTER DF-A0600-PS ULTRA-FILTER STANDARD BSP PLUG

Ficha técnica

Altura

563 mm (22.17 inch)

Part Number

1C484726-KIT

Length

203 mm (7.99 inch)

Country of Origin

Germany

Housing Model

DF

Housing Size

0600

Element Model

A

Element Size

Size 0600

Element Type

DF

Connection Type

G 1 1/2

Flow Rate Nominal (Air)

600 m³/h

Differential Pressure Gauge

Plate

Drain Type

Plug

Maximum Operating Pressure

16 bar (232 psi)

Maximum Operating Temperature

65 C (149 F)

Minimum Operating Temperature

1 C (34 F)

Filter Housing Material

Aluminum

Housing Gasket Material

Perbunan

Width

190 mm (7.48 inch)

Peso

5.2 kg (11.46 lb)

Drain Connection

G 1/2

PED 2014 68 EU

Yes

EAC

Yes

Referencias específicas

MPN

1C484726-KIT
