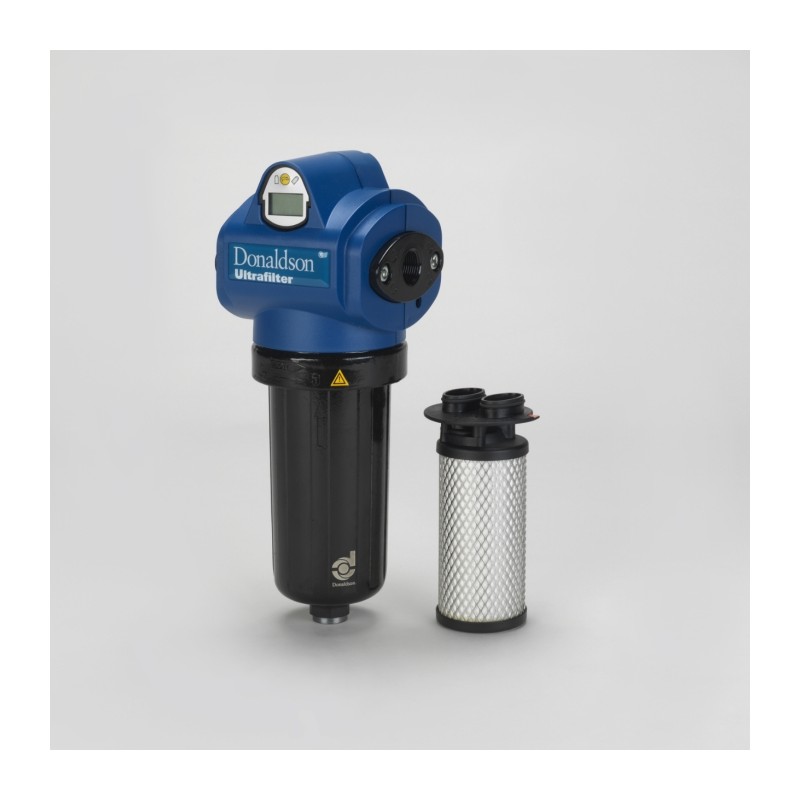

Donaldson 1C484146-KIT FILTER DF-A0070-ZS ULTRA-FILTER PLUS BSP ECONOMIZER PLUG

Ficha técnica

Altura

275 mm (10.83 inch)

Part Number

1C484146-KIT

Length

107 mm (4.21 inch)

Country of Origin

Germany

Housing Model

DF

Housing Size

0070

Element Model

A

Element Size

Size 0070

Element Type

DF

Connection Type

G 3/8

Flow Rate Nominal (Air)

70 m³/h

Differential Pressure Gauge

Economizer

Drain Type

Plug

Maximum Operating Pressure

16 bar (232 psi)

Maximum Operating Temperature

65 C (149 F)

Minimum Operating Temperature

1 C (34 F)

Filter Housing Material

Aluminum

Housing Gasket Material

Perbunan

Width

103 mm (4.06 inch)

Peso

0.9 kg (1.98 lb)

Drain Connection

G 1/2

PED 2014 68 EU

Yes

EAC

Yes

Referencias específicas

MPN

1C484146-KIT
