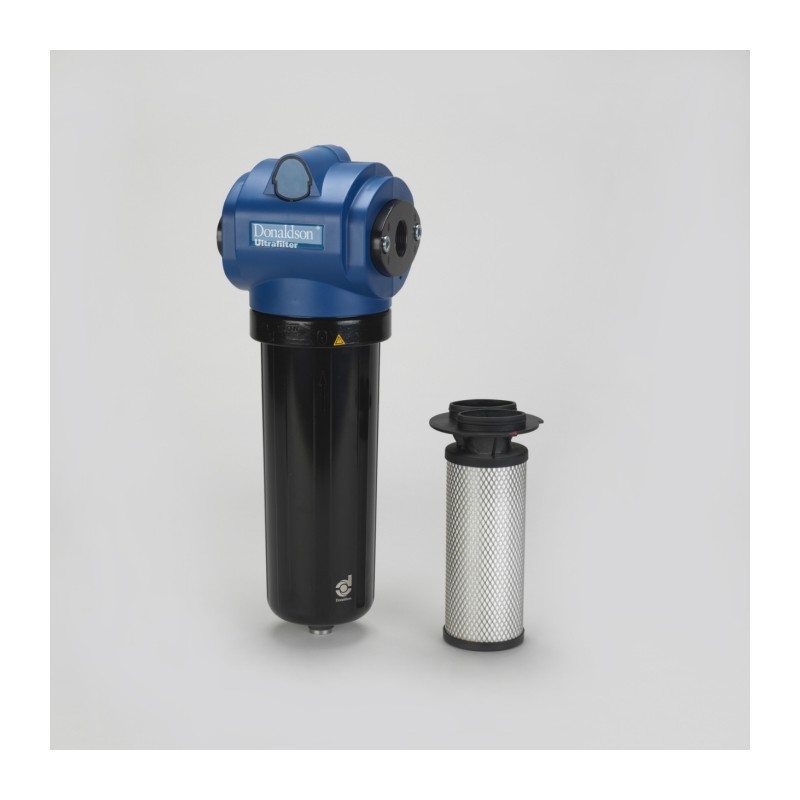

Donaldson 1C484606-KIT FILTER DF-A0450-PS ULTRA-FILTER STANDARD BSP PLUG
961,17 £
Impuestos excluidos
Specifications
Altura
563 mm (22.17 inch)
Part Number
1C484606-KIT
Length
203 mm (7.99 inch)
Country of Origin
Germany
Housing Model
DF
Housing Size
0450
Element Model
A
Element Size
Size 0450
Element Type
DF
Connection Type
G 1 1/4
Flow Rate Nominal (Air)
450 m³/h
Differential Pressure Gauge
Plate
Drain Type
Plug
Maximum Operating Pressure
16 bar (232 psi)
Maximum Operating Temperature
65 C (149 F)
Minimum Operating Temperature
1 C (34 F)
Filter Housing Material
Aluminum
Housing Gasket Material
Perbunan
Anchura
190 mm (7.48 inch)
Peso
5.2 kg (11.46 lb)
Drain Connection
G 1/2
PED 2014 68 EU
Yes
EAC
Yes
Available in these brands
| Brand | Reference | Availability | Price |
|---|---|---|---|
|
Donaldson
|
1C484606-KIT | Order on request | 961,17 £ |
Cross References
DONALDSON
1C484606KIT
