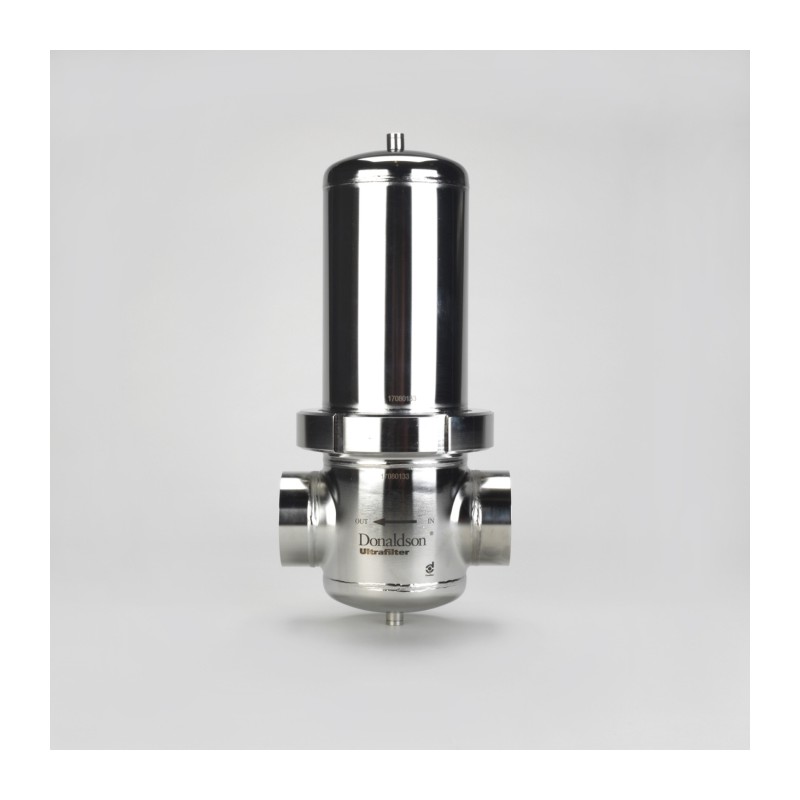

Donaldson 1C072313 STEAM HOUSING P-EGS 0030 3 INCH BSP 1.4404 FLUORAZ

Ficha técnica

Altura

509 mm (20.04 inch)

Part Number

1C072313

Model

P-EGS

Length

210 mm (8.27 inch)

Country of Origin

Germany

Housing Size

0030

Element Size

Size 10/50

Element Type

UF Push-In Connection

Connection Type

G 3

Maximum Operating Pressure

16 bar (232 psi)

Maximum Operating Temperature

200 C (392 F)

Minimum Operating Temperature

-25 C (-13 F)

Filter Housing Material

1.4404 / 316 Stainless Steel

Housing Gasket Material

Fluoraz®

Width

240 mm (9.45 inch)

Peso

11.2 kg (24.69 lb)

Drain Connection

G 1/4

PED 2014 68 EU

Yes

EAC

Yes

Vent Connection

G 1/4

Plug Type

Plug

Inner Surface Finish

Pickled and Passivated to Ra 63 µin / 1.6 µm

Outer Surface Finish

Pickled. Passivated and Polished to Ra 63 µin / 1.6 µm

Materials According to EC1935 2004

Yes

Materials According to FDA CFR Title 21

Yes

Plug Material

Stainless Steel

Flow Rate (Steam)

520 kg/h (1146.60 lb/h)

Referencias específicas

MPN

1C072313
