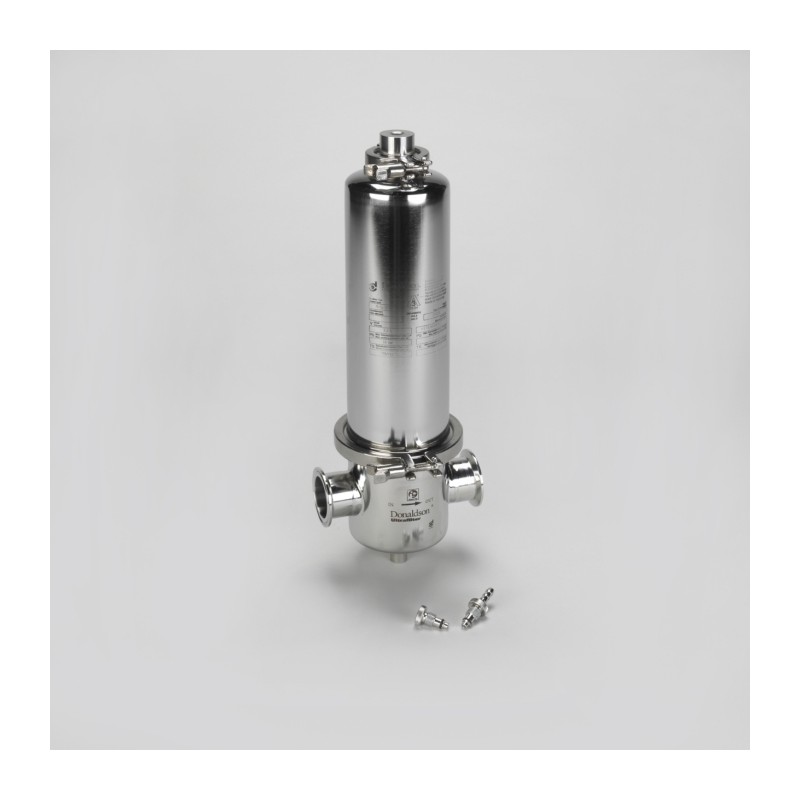

Donaldson 1C076244 FILTER HOUSING PG-EG 0072 DN 40 CLAMP 1.4404 3A CE

Ficha técnica

Altura

538 mm (21.18 inch)

Part Number

1C076244

Model

PG-EG

Length

125 mm (4.92 inch)

Country of Origin

Germany

Housing Size

0072

Element Size

Size 10/30

Element Type

UF Push-In Connection

Connection Type

DN 40 DIN 32676-B Tri-Clamp®

Flow Rate Nominal (Air)

720 m³/h

Maximum Operating Pressure

16 bar (232 psi)

Maximum Operating Temperature

150 C (302 F)

Minimum Operating Temperature

-25 C (-13 F)

Filter Housing Material

1.4404 / 316 Stainless Steel

Housing Gasket Material

EPDM

Width

164 mm (6.46 inch)

Peso

3.9 kg (8.60 lb)

Drain Connection

G 1/4 Pharma Valve

PED 2014 68 EU

Yes

EAC

Yes

Vent Connection

G 1/4 Pharma Plug

Plug Type

Pharma Valve

Pharma Valve Material

1.4404 / 316L Stainless Steel

Inner Surface Finish

Electropolished to Ra 32 µin / 0.8 µm

Outer Surface Finish

Electropolished to Ra 32 µin / 0.8 µm

3-A Certified

Yes

Materials According to EC1935 2004

Yes

Materials According to FDA CFR Title 21

Yes

Referencias específicas

MPN

1C076244
