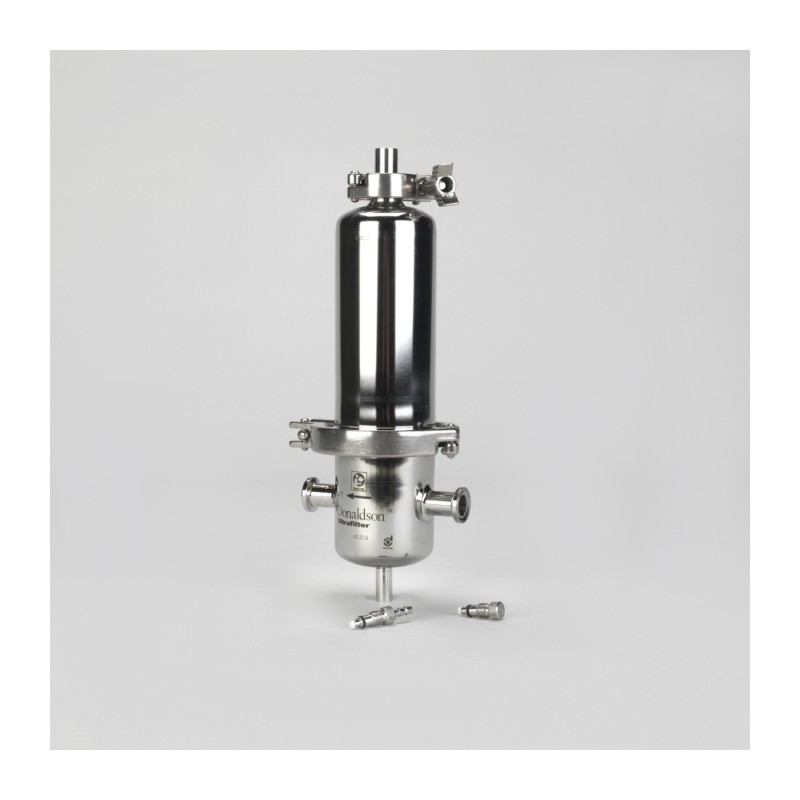

Donaldson 1C076242 FILTER HOUSING PG-EG 0018 DN 10 CLAMP 1.4404 3A PED ART4/3

Ficha técnica

Altura

344 mm (13.54 inch)

Part Number

1C076242

Model

PG-EG

Length

95 mm (3.74 inch)

Country of Origin

Germany

Housing Size

0018

Element Size

Size 05/20

Element Type

UF Push-In Connection

Connection Type

DN 10 DIN 32676-B Tri-Clamp®

Flow Rate Nominal (Air)

180 m³/h

Maximum Operating Pressure

16 bar (232 psi)

Maximum Operating Temperature

150 C (302 F)

Minimum Operating Temperature

-25 C (-13 F)

Filter Housing Material

1.4404 / 316 Stainless Steel

Housing Gasket Material

EPDM

Width

120 mm (4.72 inch)

Peso

1.7 kg (3.75 lb)

Drain Connection

G 1/8 Pharma Valve

PED 2014 68 EU

Yes

EAC

Yes

Vent Connection

G 1/8 Pharma Plug

Plug Type

Pharma Valve

Pharma Valve Material

1.4404 / 316L Stainless Steel

Inner Surface Finish

Electropolished to Ra 32 µin / 0.8 µm

Outer Surface Finish

Electropolished to Ra 32 µin / 0.8 µm

3-A Certified

Yes

Materials According to EC1935 2004

Yes

Materials According to FDA CFR Title 21

Yes

Referencias específicas

MPN

1C076242
