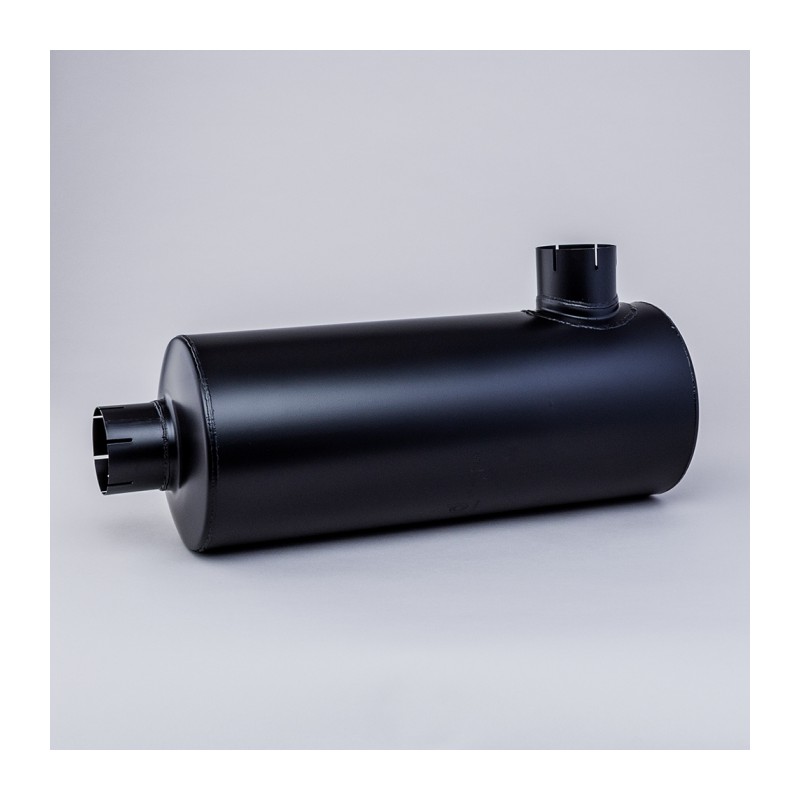

Donaldson M091048 MUFFLER ROUND STYLE 3
277,26 £
Impuestos excluidos
Specifications
Part Number
M091048
Country of Origin
United States
Body Diameter Maximum
229 mm (9.02 inch)
Rated Flow LR
24.5 m³/min (865 cfm)
Rated Flow HR
34 m³/min (1201 cfm)
Price Type
E
Style
Style 3
Overall Length
670 mm (26.38 inch)
Inlet Clock Position
6
Inlet Diameter
89 mm (3.50 inch)
Outlet Diameter
89 mm (3.50 inch)
Body Length
559 mm (22.01 inch)
Rated Flow MR
34 m³/min (1201 cfm)
Back Pressure Low-Range
25 mm Hg (0.98 inch Hg)
Back Pressure Mid-Range
51 mm Hg (2.01 inch Hg)
Back Pressure High-Range
51 mm Hg (2.01 inch Hg)
Attenuation LR
12 dBA
Attenuation HR
18 dBA
Available in these brands
| Brand | Reference | Availability | Price |
|---|---|---|---|
|
Donaldson
|
M091048 | Order on request | 277,26 £ |
Cross References
ALLMAND BROS
ME454M
AMERICAN AUGERS
8NG1002302
BADGER
1000882
DONALDSON
M091048
NELSON
201567N
PETTIBONE
LL847482
VERMEER
2962280907
296280907
