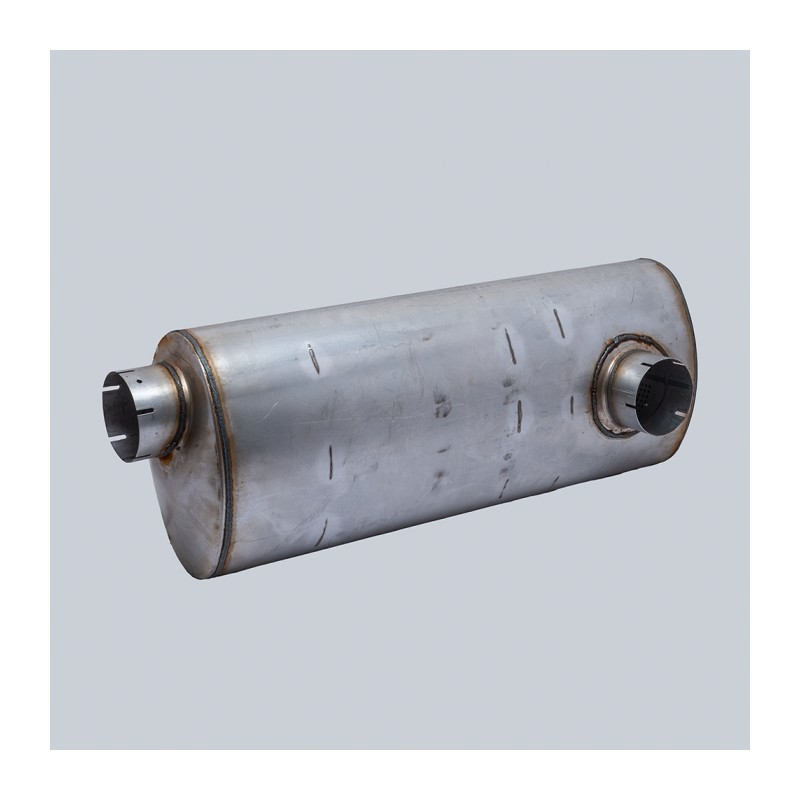

Donaldson M120235 MUFFLER OVAL STYLE 3

Ficha técnica

Part Number

M120235

Country of Origin

United States

Body Diameter Maximum

381 mm (15.00 inch)

Rated Flow LR

34.3 m³/min (1211 cfm)

Rated Flow HR

59.4 m³/min (2098 cfm)

Price Type

E

Style

Style 3

Overall Length

1013 mm (39.88 inch)

Inlet Clock Position

6

Outlet Clock Position

9

Inlet Diameter

127 mm (5.00 inch)

Outlet Diameter

127 mm (5.00 inch)

Body Length

911 mm (35.87 inch)

Rated Flow MR

48.5 m³/min (1713 cfm)

Back Pressure Low-Range

25 mm Hg (0.98 inch Hg)

Back Pressure Mid-Range

51 mm Hg (2.01 inch Hg)

Back Pressure High-Range

76 mm Hg (2.99 inch Hg)

Attenuation LR

15 dBA

Attenuation HR

20 dBA

Body Diameter Minimum

254 mm (10.00 inch)

Referencias específicas

MPN

M120235
