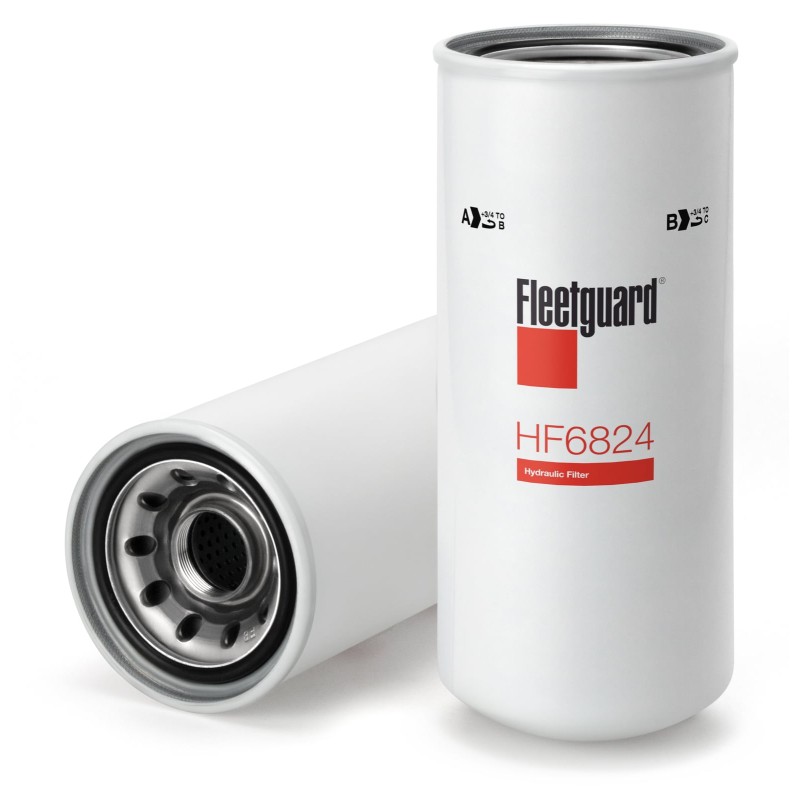

Fleetguard HF6824 Hydraulic Filter Spin-On
search
  • Fleetguard HF6824 Hydraulic Filter Spin-On
OEM QualityBuilt to meet or exceed OEM standards.
Reliable ProtectionEffective filtration to protect your equipment.
Easy InstallationDirect fit for quick and easy servicing.

Fleetguard HF6824 Hydraulic Filter Spin-On

Producto disponible para pedidos SKU: HF6824
106,22 £
Impuestos excluidos
Cantidad

Description

Fleetguard® HF6824 premium hydraulic spin-on filter with cellulose media is designed to help keep your precision hydraulic systems running as intended, providing a solution for various applications. This filter meets or exceeds the equipment OEM quality and performance and is the first aftermarket replacement available on the market today, bringing your operation top-quality performance and an overall unbeatable total cost of ownership.

Specifications

file_downloadDatasheet
Length 11.73 inch / 297.94 mm
Country of Origin Mexico
Media Type StrataPore
Gasket OD 4.11 inch / 104.27 mm
Taric Code 84212980
Thread Size 1.00 1/2-16 UN-2B
Largest OD 4.89 inch / 124.33 mm
Gasket Inside Diameter 3.58 inch / 90.81 mm
Seam OD 4.95 in / 125.73 mm
Standpipe NO
Length / Overall Height 11.78 inch / 299.26 mm
Particle Size at Beta 75 17.30 micron (c)
BPV OPENING DP 0.00 PSI / 0.00 kPa
Particle Size at Beta 200 20.20 micron (c)
TWA MICRON @ BETA=20 15.00 micron
TWA MICRON @ BETA=2 6.00 micron
TWA MICRON @ BETA=75 20.00 micron
TWA MICRON @ BETA=200 24.00 micron

Available in these brands

Brand Reference Availability Price
Fleetguard
HF6824 Order on request 106,22 £
Baldwin
BT8803-MPG Order on request 76,31 £
Donaldson
P550417 Order on request 97,47 £
Hifi
SH66053 Order on request 107,92 £
SF
SPH9298 Order on request 142,86 £

Cross References

AGCO
AG610114
CASE IH
149935A1
FLEETGUARD
HF6824
HITACHI
4230344
JOHN DEERE
AT102825
AT105661
AT105662
AT105663
AT172912
AT82192
AT82193
KOX
FH066
MACK
5839HF6834
NORMAN EQUIPMENT
51566
PALFINGER
PF10186

RICO Europe is an independent supplier. OEM names & part numbers are for reference only and do not imply affiliation.

Machine Details

Manufacturer Series Model Engine Year Serial
CHALLENGER TERRA GATOR TG 2104 John Deere POWERTECH 6081 HF070 n/a n/a View
EPIROC . SCOOPTRAM ST 7 Cummins n/a n/a View
JOHN DEERE 1. 640E n/a n/a n/a View
JOHN DEERE 500-Series 540 G John Deere 6059TDW06 n/a n/a View
JOHN DEERE 500-Series 548 G John Deere 6059TDW06 n/a n/a View
JOHN DEERE 600-Series 640 E John Deere 6068T n/a n/a View
JOHN DEERE 600-Series 640 G John Deere 6068TDW06 n/a n/a View
JOHN DEERE 600-Series 648 G John Deere 6068TDW06 n/a n/a View
JOHN DEERE 600-Series 648E Skidder n/a n/a n/a View
JOHN DEERE 700-Series 740 G John Deere 6076ADW03 n/a n/a View
JOHN DEERE 700-Series 748 G John Deere 6076TDW02 n/a n/a View
JOHN DEERE FORWARDER/TIMBERJACK 1. 540 G John Deere 6059TDW06 n/a n/a View
JOHN DEERE FORWARDER/TIMBERJACK 1. 548 G John Deere 6059TDW06 n/a n/a View
