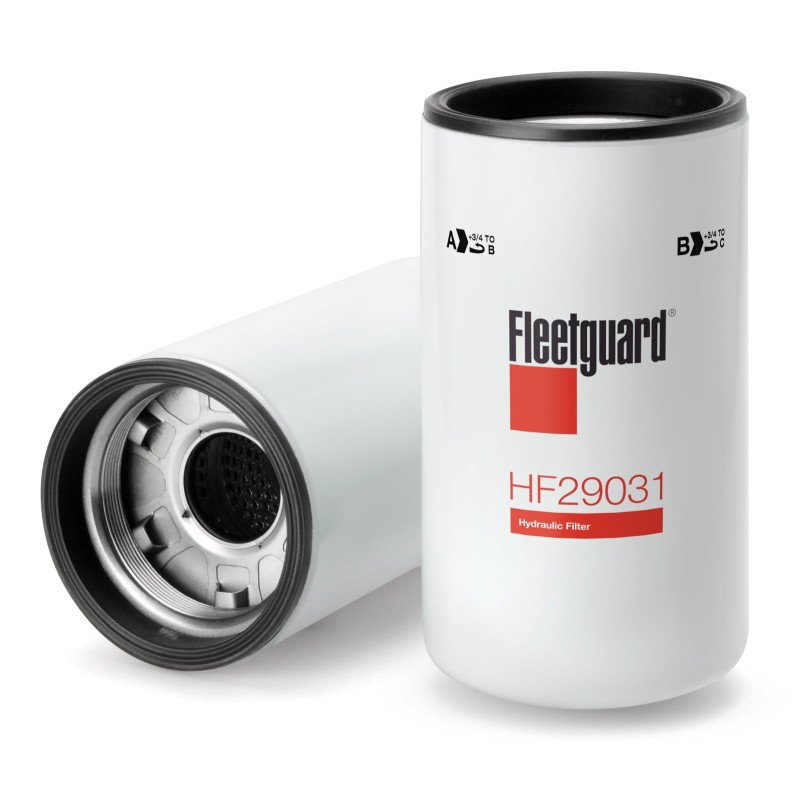

Fleetguard HF29031 Hydraulic Filter Spin-On
£79.75
VAT excluded
Average lead time 7-10 days
Description
Fleetguard® HF29031 hydraulic spin-on filter with synthetic media is designed to help keep your precision hydraulic systems running as intended, providing a solution for various applications. This filter meets or exceeds the equipment OEM quality and performance and is the first aftermarket replacement available on the market today, bringing your operation top-quality performance and an overall unbeatable total cost of ownership.
Specifications
file_downloadDatasheet
Length
8.92 inch / 226.52 mm
Country of Origin
Mexico
Gasket OD
4.68 inch / 118.88 mm
Taric Code
84212980
Thread Size
M90 X 2-7H INT
Largest OD
4.72 inch / 119.89 mm
Gasket Inside Diameter
4.00 inch / 101.60 mm
Seam OD
5.24 in / 132.99 mm
Standpipe
NO
Pressure Valve
No
Length / Overall Height
8.92 inch / 226.52 mm
Particle Size at Beta 75
15.80 micron (c)
BPV OPENING DP
0.00 PSI / 0.00 kPa
Particle Size at Beta 200
16.60 micron (c)
TWA MICRON @ BETA=20
14.00 micron
TWA MICRON @ BETA=2
5.00 micron
TWA MICRON @ BETA=75
18.00 micron
TWA MICRON @ BETA=200
19.00 micron
Available in these brands
Cross References
FLEETGUARD
HF29031
JOHN DEERE
AT189924
RICO Europe is an independent supplier. OEM names & part numbers are for reference only and do not imply affiliation.
Fleetguard® HF29031 hydraulic spin-on filter with synthetic media is designed to help keep your precision hydraulic systems running as intended, providing a solution for various applications. This filter meets or exceeds the equipment OEM quality and performance and is the first aftermarket replacement available on the market today, bringing your operation top-quality performance and an overall unbeatable total cost of ownership.
