Return Filter Tank Top Mounted

Return hydraulic filters are filters used in hydraulic systems to remove contaminants and impurities from the fluid, typically installed on the return line from the actuators back to the tank.

They work by straining the fluid as it returns to the tank, capturing particles, debris, and other contaminants before they re-enter the system.

Return filters help to protect the system components from damage and wear, and maintain the overall performance of the hydraulic system.

They are commonly used in industrial, mobile, and marine applications where the hydraulic system is subject to harsh environments and conditions.

The return filter design provides efficient filtration on the return line, ensuring clean fluid is maintained in the system, making return hydraulic filters a critical component for hydraulic filtration.

Return Filter Tank Top Mounted | RICO Europe

Subcategories

  • G ½" MPF 30 max. flow rate 40 l/min
    G ½" MPF 30 max. flow...

    Return Filter MPF 30 max. flow rate 40 l/min - thread G ½"

    The MPF return filter series are for tank top mounting in hydraulic and
    lubricating oil circuits
    Filter head: aluminium, port size G ½",
    cover: Zytel, bowl: Nylon, NBR seals
    Housings compatible with mineral oils to ISO 2943, aqueous emulsions,
    synthetic fluids, water and glycol
    Element material: resin impregnated paper media (P), inorganic microfiber (A)
    or wire mesh (M)
    Elements with NBR seal are compatible with mineral oils to ISO 2943, aqueous emulsions, synthetic fluids without HS-HFDR-HFDS-HFDU fluids,
    water and glycol (elements of W-series on enquiry)
    Optional FPM seals for HS-HFDR-HFDS-HFDU fluids to ISO 2943
    Working pressure max. 8 bar - working temperature -25°C - +110°C
    MPF030
    category_280930.jpg?time=1533651869
    MPF030 Material / fineness Q max (l/min) Seal Bypass valve opening pressure (bar)
    HY 18408 A 03 7 NBR 1,75 ± 10%
    HY 18409 A 06 10 NBR 1,75 ± 10%
    HY 18410 A 10 20 NBR 1,75 ± 10%
    HY 18411 A 25 37 NBR 1,75 ± 10%
    HY 18414 M 25 40 NBR 1,75 ± 10%
    HY 18415 M 60 40 NBR 1,75 ± 10%
    HY 18416 M 90 40 NBR 1,75 ± 10%
    HY 18412 P 10 38 NBR 1,75 ± 10%
    HY 18413 P 25 39 NBR 1,75 ± 10%
    max. flow rate measured with oil kinematic viscosity of 30 mm²/s and ?P 0,5 bar
  • G ½" - G 1" MPF 100 max. flow rate 360 l/min
    G ½" - G 1" MPF 100...

    Return Filter MPF 100 max. flow rate 360 l/min. - thread G ½" - G 1"

    he MPF return filter series are for tank top mounting in hydraulic and
    lubricating oil circuits
    Filter head: aluminium, port size G ½", G ¾" or G 1",
    cover: Zytel, bowl: Nylon, NBR seals
    Housings compatible with mineral oils to ISO 2943, aqueous emulsions,
    synthetic fluids, water and glycol
    Element material: resin impregnated paper media (P), inorganic microfiber (A)
    or wire mesh (M)
    Elements with NBR seal are compatible with mineral oils to ISO 2943, aqueous emulsions, synthetic fluids without HS-HFDR-HFDS-HFDU fluids,
    water and glycol (elements of W-series on enquiry)
    Optional FPM seals for HS-HFDR-HFDS-HFDU fluids to ISO 2943
    Working pressure max. 8 bar - working temperature -25°C - +110°C
    MPF100
    category_280931.jpg?time=1533651870
    MPF 100         MPF 100
    Length H (mm) H1 (mm) Ø e (mm)   Port size A
    1 99 120 38   G1 G ½"
    2 146 170 38   G2 G ¾"
    3 224 250 46,5   G3 G 1"


    MPF100-1 Material / fineness Q max (l/min) Seal Bypass valve opening pressure (bar)
    HY 18417 A 03 18 NBR 1,75 ± 10%
    HY 18418 A 06 26 NBR 1,75 ± 10%
    HY 18419 A 10 50 NBR 1,75 ± 10%
    HY 18420 A 25 110 NBR 1,75 ± 10%
    HY 18423 M 25 250 NBR 1,75 ± 10%
    HY 18424 M 60 250 NBR 1,75 ± 10%
    HY 18425 M 90 250 NBR 1,75 ± 10%
    HY 18421 P 10 110 NBR 1,75 ± 10%
    HY 18422 P 25 130 NBR 1,75 ± 10%
    max. flow rate measured with oil kinematic viscosity of 30 mm²/s and ?P 0,5 bar

    MPF100-2 Material / fineness Q max (l/min) Seal Bypass valve opening pressure (bar)
    HY 18426 A 03 31 NBR 1,75 ± 10%
    HY 18427 A 06 40 NBR 1,75 ± 10%
    HY 18428 A 10 80 NBR 1,75 ± 10%
    HY 18429 A 25 160 NBR 1,75 ± 10%
    HY 18432 M 25 360 NBR 1,75 ± 10%
    HY 18433 M 60 360 NBR 1,75 ± 10%
    HY 18434 M 90 360 NBR 1,75 ± 10%
    HY 18430 P 10 170 NBR 1,75 ± 10%
    HY 18431 P 25 190 NBR 1,75 ± 10%
    max. flow rate measured with oil kinematic viscosity of 30 mm²/s and ?P 0,5 bar

    MPF100-3 Material / fineness Q max (l/min) Seal Bypass valve opening pressure (bar)
    HY 18435 A 03 50 NBR 1,75 ± 10%
    HY 18436 A 06 65 NBR 1,75 ± 10%
    HY 18437 A 10 135 NBR 1,75 ± 10%
    HY 18438 A 25 240 NBR 1,75 ± 10%
    HY 18441 M 25 360 NBR 1,75 ± 10%
    HY 18442 M 60 360 NBR 1,75 ± 10%
    HY 18443 M 90 360 NBR 1,75 ± 10%
    HY 18439 P 10 260 NBR 1,75 ± 10%
    HY 18440 P 25 280 NBR 1,75 ± 10%
    max. flow rate measured with oil kinematic viscosity of 30 mm²/s and ?P 0,5 bar
    MPF104 series on enquiry
  • G 1¼" MPF 180 max. flow rate 445 l/min
    G 1¼" MPF 180 max....

    Return Filter MPF 180 max. flow rate 445 l/min. - thread G 1¼"

    The MPF return filter series are for tank top mounting in hydraulic and
    lubricating oil circuits
    Filter head and cover: aluminium, port size G 1 ¼",
    bowl: Nylon, NBR seals
    Housings compatible with mineral oils to ISO 2943, aqueous emulsions,
    synthetic fluids, water and glycol
    Element material: resin impregnated paper media (P), inorganic microfiber (A)
    or wire mesh (M)
    Elements with NBR seal are compatible with mineral oils to ISO 2943, aqueous emulsions, synthetic fluids without HS-HFDR-HFDS-HFDU fluids,
    water and glycol (elements of W-series on enquiry)
    Optional FPM seals for HS-HFDR-HFDS-HFDU fluids to ISO 2943
    Working pressure max. 8 bar - working temperature -25°C - +110°C
    MPF180
    category_280932.jpg?time=1533651871
    MPF 180
    Length H (mm) H1 (mm) Ø e (mm)
    1 235 250 47
    2 444 460 47


    MPF180-1 Material / fineness Q max (l/min) Seal Bypass valve opening pressure (bar)
    HY 18444 A 03 120 NBR 1,75 ± 10%
    HY 18445 A 06 135 NBR 1,75 ± 10%
    HY 18446 A 10 215 NBR 1,75 ± 10%

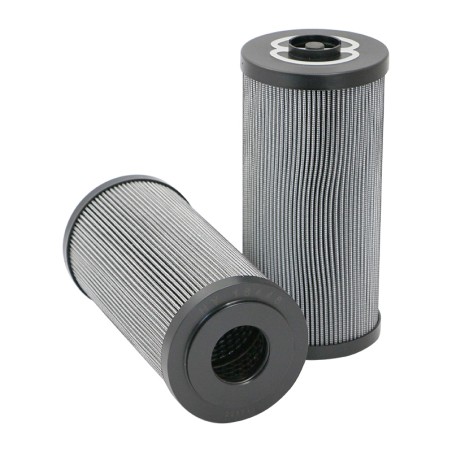

    HY 18447 A 25 300 NBR 1,75 ± 10%
    HY 18450 M 25 445 NBR 1,75 ± 10%

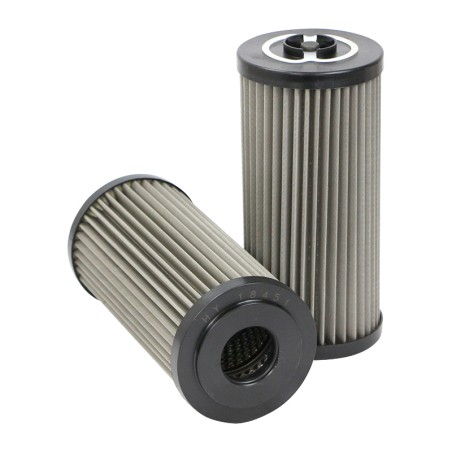

    HY 18451 M 60 445 NBR 1,75 ± 10%
    HY 18452 M 90 445 NBR 1,75 ± 10%
    HY 18448 P 10 320 NBR 1,75 ± 10%
    HY 18449 P 25 380 NBR 1,75 ± 10%
    max. flow rate measured with oil kinematic viscosity of 30 mm²/s and ?P 0,5 bar

    MPF180-2 Material / fineness Q max (l/min) Seal Bypass valve opening pressure (bar)

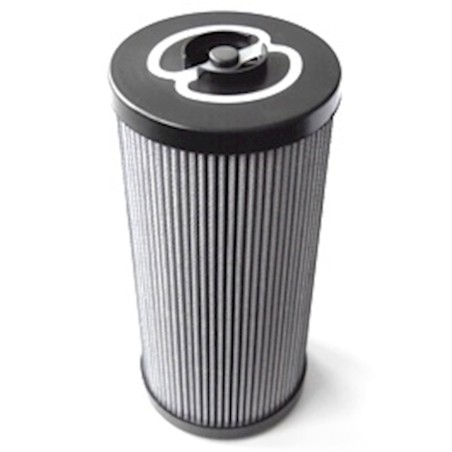

    HY 18930 A 06 235 NBR 1,75 ± 10%
    HY 18923 A 10 330 NBR 1,75 ± 10%
    HY 18914 A 25 385 NBR 1,75 ± 10%

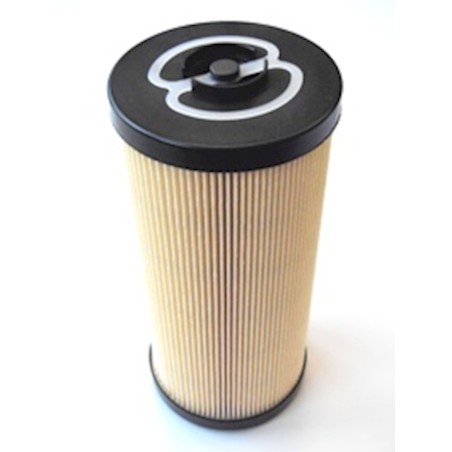

    HY 18925 P10 385 NBR 1,75 ± 10%
    HY 18904 P 25 390 NBR 1,75 ± 10%
    max. flow rate measured with oil kinematic viscosity of 30 mm²/s and ?P 0,5 bar

    MPF180-2/184, MPF190/194 series on enquiry
  • G 1¼" - G 2" MPF 400 max. flow rate 800 l/min
    G 1¼" - G 2" MPF 400...

    Return Filter MPF 400 max. flow rate 800 l/min. - thread G 1¼" - G 2"

    The MPF return filter series are for tank top mounting in hydraulic and
    lubricating oil circuits
    Filter head and cover: aluminium, port size G 1¼", G 1½" or G 2",
    bowl: Nylon, NBR seals
    Housings compatible with mineral oils to ISO 2943, aqueous emulsions,
    synthetic fluids, water and glycol
    Element material: resin impregnated paper media (P), inorganic microfiber (A)
    or wire mesh (M)
    Elements with NBR seal are compatible with mineral oils to ISO 2943, aqueous emulsions, synthetic fluids without HS-HFDR-HFDS-HFDU fluids,
    water and glycol (elements of W-series on enquiry)
    Optional FPM seal for HS-HFDR-HFDS-HFDU fluids to ISO 2943
    Working pressure max. 8 bar - working temperature -25°C - +110°C
    MPF400
    category_280933.jpg?time=1533651871
    MPF 400         MPF 400
    Length H (mm) H1 (mm) Ø e (mm)   Port size A
    1 180 200 51   G1 G 1¼"
    2 240 250 64   G2 G 1½"
    3 290 310 64   G3 G 2"


    MPF400-1 Material / fineness Q max (l/min) Seal Bypass valve opening pressure (bar)
    HY 18453 A 03 150 NBR 1,75 ± 10%
    HY 18454 A 06 175 NBR 1,75 ± 10%
    HY 18455 A 10 335 NBR 1,75 ± 10%
    HY 18456 A 25 550 NBR 1,75 ± 10%
    HY 18459 M 25 680 NBR 1,75 ± 10%
    HY 18460 M 60 680 NBR 1,75 ± 10%
    HY 18461 M 90 680 NBR 1,75 ± 10%
    HY 18457 P 10 385 NBR 1,75 ± 10%
    HY 18458 P 25 600 NBR 1,75 ± 10%
    max. flow rate measured with oil kinematic viscosity of 30 mm²/s and ?P 0,5 bar

    MPF400-2 Material / fineness Q max (l/min) Seal Bypass valve opening pressure (bar)
    HY 18462 A 03 230 NBR 1,75 ± 10%
    HY 18463 A 06 250 NBR 1,75 ± 10%
    HY 18464 A 10 440 NBR 1,75 ± 10%
    HY 18465 A 25 660 NBR 1,75 ± 10%
    HY 18468 M 25 750 NBR 1,75 ± 10%
    HY 18469 M 60 750 NBR 1,75 ± 10%
    HY 18470 M 90 750 NBR 1,75 ± 10%
    HY 18466 P 10 550 NBR 1,75 ± 10%
    HY 18467 P 25 690 NBR 1,75 ± 10%
    max. flow rate measured with oil kinematic viscosity of 30 mm²/s and ?P 0,5 bar

    MPF400-3 Material / fineness Q max (l/min) Seal Bypass valve opening pressure (bar)
    HY 18471 A 03 250 NBR 1,75 ± 10%
    HY 18472 A 06 295 NBR 1,75 ± 10%
    HY 18473 A 10 470 NBR 1,75 ± 10%
    HY 18474 A 25 680 NBR 1,75 ± 10%
    HY 18477 M 25 800 NBR 1,75 ± 10%
    HY 18478 M 60 800 NBR 1,75 ± 10%
    HY 18479 M 90 800 NBR 1,75 ± 10%
    HY 18475 P 10 700 NBR 1,75 ± 10%
    HY 18476 P 25 750 NBR 1,75 ± 10%
    max. flow rate measured with oil kinematic viscosity of 30 mm²/s and ?P 0,5 bar

    MPF450/451 series on enquiry
  • G 2" - 2" SAE-300psi/M MPF 750 max. flow rate 900 l/min
    G 2" - 2" SAE-300psi/M...

    Return Filter MPF 750 max. flow rate 900 l/min. - thread G 2" - 2"SAE-300psi/M

    The MPF return filter series are for tank top mounting in hydraulic and
    lubricating oil circuits
    Filter head and cover: aluminium, port size G 2" or
    flange 2"SAE - 3000 psi/M, bowl: Nylon, NBR seals
    Housings compatible with mineral oils to ISO 2943, aqueous emulsions,
    synthetic fluids, water and glycol
    Element material: resin impregnated paper media (P), inorganic microfiber (A)
    or wire mesh (M)
    Elements with NBR seal are compatible with mineral oils to ISO 2943, aqueous emulsions, synthetic fluids without HS-HFDR-HFDS-HFDU fluids,
    water and glycol (elements of W-series on enquiry)
    Optional FPM seal for HS-HFDR-HFDS-HFDU fluids to ISO 2943
    Working pressure max. 8 bar - working temperature -25°C - +110°C
    MPF750
    category_280934.jpg?time=1533651872
    MPF750-1 Material / fineness Q max (l/min) Seal Bypass valve opening pressure (bar)
    HY 18480 A 03 390 NBR 1,75 ± 10%

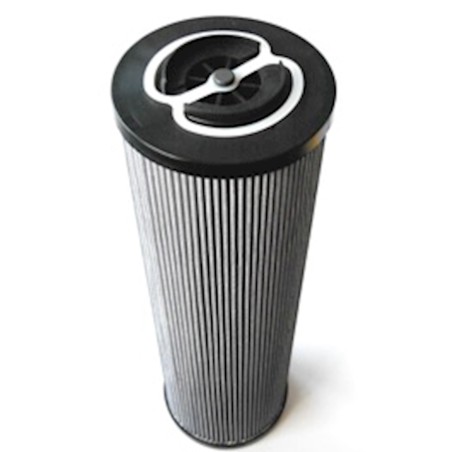

    HY 18481 A 06 450 NBR 1,75 ± 10%
    HY 18482 A 10 625 NBR 1,75 ± 10%

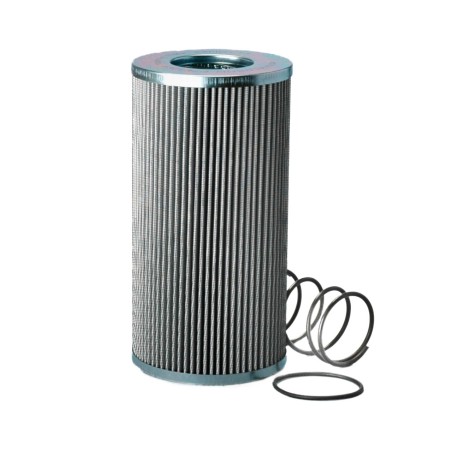

    HY 18483 A 25 780 NBR 1,75 ± 10%
    HY 18486 M 25 900 NBR 1,75 ± 10%
    HY 18487 M 60 900 NBR 1,75 ± 10%

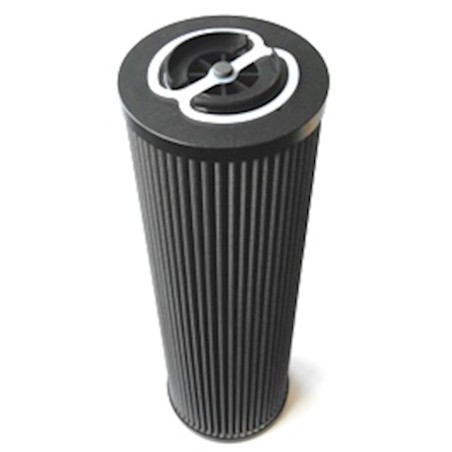

    HY 18488 M 90 900 NBR 1,75 ± 10%

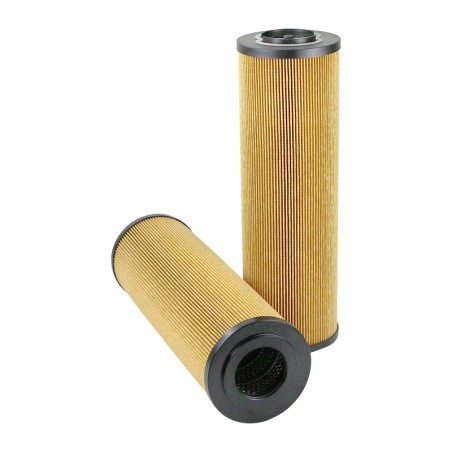

    HY 18484 P 10 700 NBR 1,75 ± 10%

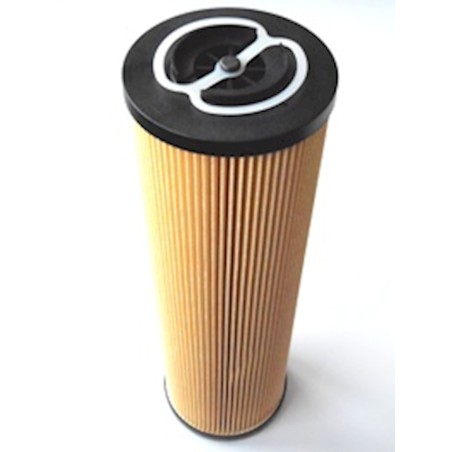

    HY 18485 P 25 750 NBR 1,75 ± 10%
    max. flow rate measured with oil kinematic viscosity of 30 mm²/s and ?P 0,5 bar
