G 3" Hydraulic Suction Strainers

For protecting pumps in the suction path of hydraulic systems from any coarse contaminants that may enter the tank
Suitable for filtration of hydraulic fluids and lubricants
Operating temperature -20°C to +100°C
Information on volume flow dependent on test liquid and test conditions*
Flow direction from outside to inside
Increased filter surface by means of corrugation
High operational reliability due to inner perforated framework
Suction must take place below the level of the oil
Optional: can be supplied with bypass

Suction Strainer G 3" (Size B)

Suction Strainer G 1 1/4" Hydraulic Suction Strainers G 1 1/4"

SF Article Length
L1
(mm)		 Length
L2
(mm)		 Diameter D (mm) Size
K
(mm)		 Fineness (µm) Material Mesh Material Thread Material Base Valve (bar) / Magnet Volume flow** (l/min)
HY 18629 270 245 130 101 60 Wire Nylon Nylon - 525
HY 18630 270 245 130 101 90 Wire Nylon Nylon - 525
HY 18631 270 245 130 101 250 Wire Nylon Nylon - 525
HY 18575 270 245 150 105 125 Wire Plastic galvanized - 455
HY 9659 277 245 130 101 60 Wire Nylon Nylon 0,3 525
HY 18630-
BYP		 277 245 130 101 90 Wire Nylon Nylon 0,3 525
HY 18632 330 303

130

 101 60 Wire Nylon Nylon - 525

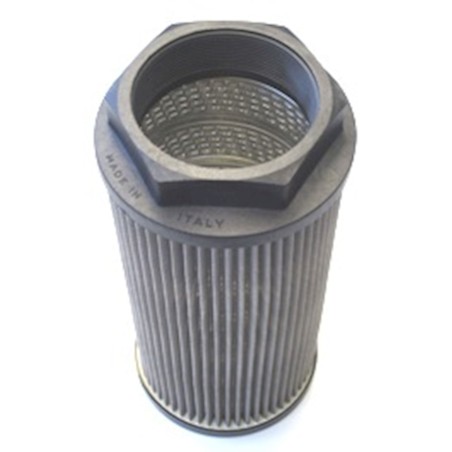

HY 18633 330 303 130 101 90 Wire Nylon Nylon - 525

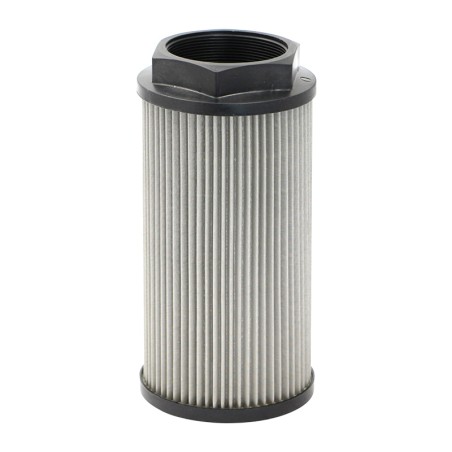

HY 18634 330 303 130 101 250 Wire Nylon Nylon - 525

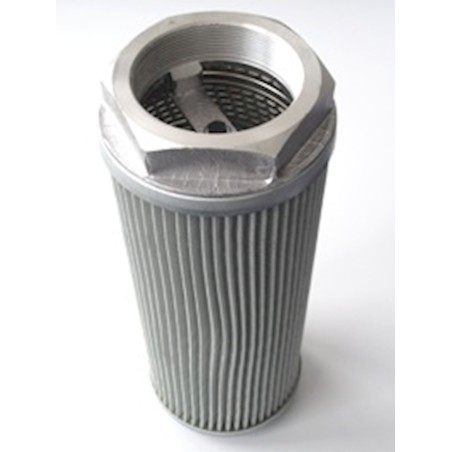

HY 18541 333 300 136 106 60 Wire Aluminium galvanized - 525
HY 18542 333 300 136 106 90 Wire Aluminium galvanized - 525
HY 18543 333 300 136 106 250 Wire Aluminium galvanized - 525

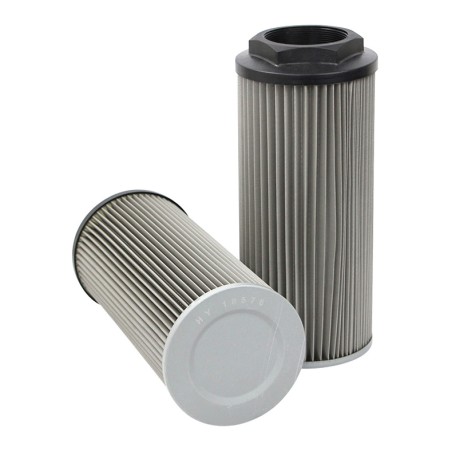

HY 18576 352 325 150 106 125 Wire Aluminium galvanized - 570

For other sizes please enquire
