Return Filter MPF 180 max. flow rate 445 l/min. - thread G 1¼"

G 1¼" MPF 180 max. flow rate 445 l/min

Return Filter MPF 180 max. flow rate 445 l/min. - thread G 1¼"

The MPF return filter series are for tank top mounting in hydraulic and
lubricating oil circuits
Filter head and cover: aluminium, port size G 1 ¼",
bowl: Nylon, NBR seals
Housings compatible with mineral oils to ISO 2943, aqueous emulsions,
synthetic fluids, water and glycol
Element material: resin impregnated paper media (P), inorganic microfiber (A)
or wire mesh (M)
Elements with NBR seal are compatible with mineral oils to ISO 2943, aqueous emulsions, synthetic fluids without HS-HFDR-HFDS-HFDU fluids,
water and glycol (elements of W-series on enquiry)
Optional FPM seals for HS-HFDR-HFDS-HFDU fluids to ISO 2943
Working pressure max. 8 bar - working temperature -25°C - +110°C
MPF180
category_280932.jpg?time=1533651871
MPF 180
Length H (mm) H1 (mm) Ø e (mm)
1 235 250 47
2 444 460 47


MPF180-1 Material / fineness Q max (l/min) Seal Bypass valve opening pressure (bar)

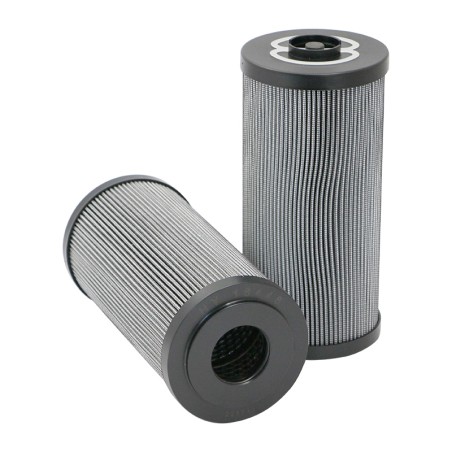

HY 18444 A 03 120 NBR 1,75 ± 10%
HY 18445 A 06 135 NBR 1,75 ± 10%
HY 18446 A 10 215 NBR 1,75 ± 10%
HY 18447 A 25 300 NBR 1,75 ± 10%
HY 18450 M 25 445 NBR 1,75 ± 10%
HY 18451 M 60 445 NBR 1,75 ± 10%
HY 18452 M 90 445 NBR 1,75 ± 10%
HY 18448 P 10 320 NBR 1,75 ± 10%
HY 18449 P 25 380 NBR 1,75 ± 10%
max. flow rate measured with oil kinematic viscosity of 30 mm²/s and ?P 0,5 bar

MPF180-2 Material / fineness Q max (l/min) Seal Bypass valve opening pressure (bar)
HY 18930 A 06 235 NBR 1,75 ± 10%
HY 18923 A 10 330 NBR 1,75 ± 10%
HY 18914 A 25 385 NBR 1,75 ± 10%
HY 18925 P10 385 NBR 1,75 ± 10%
HY 18904 P 25 390 NBR 1,75 ± 10%
max. flow rate measured with oil kinematic viscosity of 30 mm²/s and ?P 0,5 bar

MPF180-2/184, MPF190/194 series on enquiry
