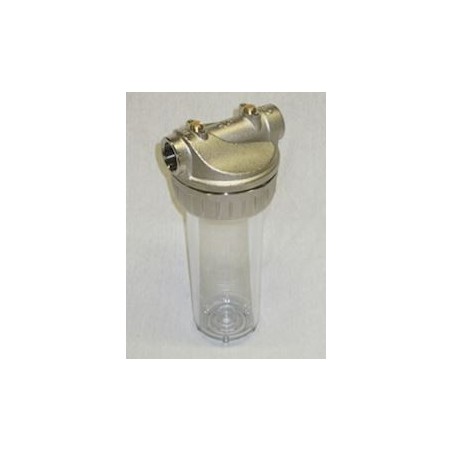

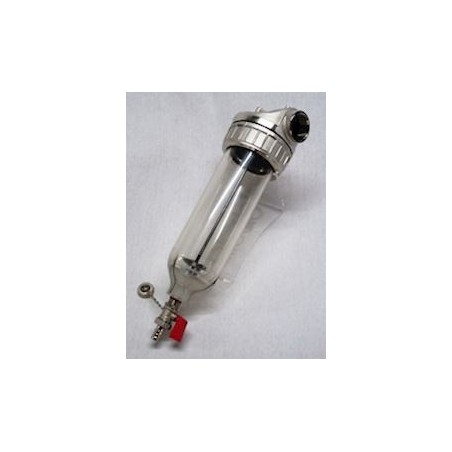

WF/M 1 housing: with and without drain tap in the housing container

WF/M 1 housing: with and without drain tap in the housing container operating pressure: 5-10 bar - flow rate: 2000-8000l/h

Uses:


Water treatment
Chemicals and pharmaceuticals industry
Food and beverages
Photographic industry
Product properties:

Filter head Brass
Thread material Brass
Filter bowl Polycarbonate (TP)
Bowl union nut Brass
Seal - filter bowl NBR
Maximum temperature resistance (°C) 50°C
Maximum operating pressure (bar) 10 bar


Dimensions:

Size Capacity (l/h) Width (Thr.-Thr.) (mm) Height (filter head - bowl base) (mm) Thread size in inches (BSP) Element series, see
5"Mignon 2000 l/h 90 mm 175 mm G½" SW 5/…
10" 6000 l/h 135 mm 337 mm G½", G¾", G1", G1¼", G1½", G2" SW 10/…
20" 8000 l/h 135 mm 571 mm G¾", G1", G1½", G2" SW 20/…


The complete spare parts and accessories list can be found on the data sheet "WF/M 1 housing: Spare parts and accessories".

Filter cartridges for 5" Mignon housings are available in the following series:
Depth filtration: PO / polypropylene,
Surface filtration: N / nylon, P / paper,
Inox version: M / Solinox RA, MX / Retinox

Filter cartridges for 10" and 20" housings are available in all series.
