Racor

About Racor

Racor actively participates in industry-wide research and the development of biodiesel fuel filtration challenges.

Racor is a global leader in fuel, air, oil, and coolant filtration systems for internal combustion engines and fuel delivery.


The company’s product line includes fuel filter/water separator systems, high flow filter vessels and elements, oil filter systems, automatic transmission filters, heavy-duty engine air filters, crankcase ventilation filter systems, and coolant products.


Applications include engine-powered equipment in the on-highway, off-highway, marine, agriculture, and stationary power markets.

Read more
Racor Filters | RICO EUROPE

Subcategories

  • 200 series Spin-On diesel fuel filter/water separator
    200 series Spin-On...
    Cast aluminium heads with multiple ports
    400 series with powerful primer pumps, integrated into mounting heads
    Optional: 400 series with head heater suitable for biodiesel
    See-through bowls constructed of high grade polymers to inspect water-level
    Polymer bowls suitable up to 120°C, they won't discolour from exposure to alcohol, additives and UV light
    Optional: cast aluminium bowls
    Positive seal self-venting drain eliminates leaks and speeds service
    Optional: water sensor to signal service (not for petrol)
    Aquabloc II media is corrugated, allowing greater surface area exposure for fuel filtration and an increased dirt-holding capacity
    Spin-On replacement elements available in 2µm, 10µm and 30µm

    SF-part number Maximum Flow Rate Port Size Micron Rating Inlet Outlet Spin-On Replacement Element
    215R30MTC 57 L/h M14x1,5 30µm 1 2 R15P
    230R10MTC 113 L/h M14x1,5 10µm 1 2 R20T
    230R30MTC 113 L/h M14x1,5 30µm 1 2 R20P
    245R30MTC 170 L/h M14x1,5 30µm   2 R25P

    category_281034.jpg?time=1534607464

  • 400 series Spin-On diesel fuel filter/water separator
    400 series Spin-On...
    Cast aluminium heads with multiple ports
    400 series with powerful primer pumps, integrated into mounting heads
    400 series with head heater suitable for biodiesel, 12 Volt d.c. - 42 Volt d.c.
    See-through bowls constructed of high grade polymers to inspect water-level
    Polymer bowls suitable up to 120°C, they won't discolour from exposure to alcohol, additives and UV light
    Optional: cast aluminium bowls
    Optional: 12 Volt d.c. or 24 Volt d.c.- 200 Watt bowl heater
    Optional: water sensor to signal service (not for petrol)
    Aquabloc II media is corrugated, allowing greater surface area exposure for fuel filtration and an increased dirt-holding capacity
    Spin-On replacement elements available in 2µm, 10µm and 30µm

    category_281035.jpg?time=1534607524
    SF-part number Maximum Flow Rate Port Size Micron Rating Inlet Outlet Spin-On Replacement Element
    445R30MTC 170 L/h M16x1,5 30µm 2 2 R45P
    460R10MTC 227 L/h M16x1,5 10µm 2 2 R60T
    460R30MTC 227 L/h M16x1,5 30µm 2 2 R60P
    460R30 227 L/h 3/8"-18 NPTF 30µm 2 2 R60P
    490R10MTC 340 L/h M16x1,5 10µm 2 2 R90T
    490R30MTC 340 L/h M16x1,5 30µm 2 2 R90P
    490R2430MTC with 24V bowl heater 340 L/h M16x1,5 30µm 2 2 R90P
    4120R10MTC 545 L/h M16x1,5 10µm 2 2 R120T
    4120R30MTC 545 L/h M16x1,5 30µm 2 2 R120P
    biodiesel version
    460RHH10MTC with 12V-42V head heater 227 L/h M16x1,5 10µm 2 2 R60T-D-MAX
    490RHH10MTC with 12V-42V head heater 340 L/h M16x1,5 10µm 2 2 R90T-D-MAX
    4160RHH10MTC with 12V-42V head heater 600 L/h M16x1,5 10µm 2 2 R160T

    460RHH, 490RHH and 4160RHH power input 300W/28V respectively 200W/15V.

  • 600 series Spin-On diesel fuel filter/water separator
    600 series Spin-On...
    Cast aluminium heads with multiple ports
    600 series with powerful primer pumps, integrated into mounting heads
    Optional: 600 series with head heater suitable for biodiesel
    See-through bowls constructed of high grade polymers to inspect water-level
    Polymer bowls suitable up to 120°C, they won't discolour from exposure to alcohol, additives and UV light
    Optional: cast aluminium bowls
    Optional: 12 Volt d.c. or 24 Volt d.c. - 200 Watt bowl heater
    Optional: water sensor to signal service (not for petrol)
    Aquabloc II media is corrugated, allowing greater surface area exposure for fuel filtration and an increased dirt-holding capacity
    Spin-On replacement elements available in 2µm, 10µm und 30µm
    category_281036.jpg?time=1534607524
    SF-part number Maximum Flow Rate Port Size Micron Rating Inlet Outlet Spin-On Replacement Element
    645R30MTC 170 L/h M16x1,5 30µm 4 3 R45P
    660R10 227 L/h 3/8"-18 NPTF 10µm 4 3 R60T
    690R10MTC 340 L/h M16x1,5 10µm 4 3 R90T
    690R30MTC 340 L/h M16x1,5 30µm 4 3 R90P
    690R2430MTC with 24V bowl heater 340 L/h M16x1,5 30µm 4 3 R90P
    6120R10MTC 545 L/h M16x1,5 10µm 4 3 R120T
    6120R30MTC 545 L/h M16x1,5 30µm 4 3 R120P
    6120R2430MTC with 24V bowl heater 545 L/h M16x1,5 30µm 4 3 R120P
    6120R30 545 L/h 3/8"-18 NPTF 30µm 4 3 R120P
  • Fuel Filter Funnel
    Fuel Filter Funnel
    Racor-Filter Funnel (RFF) suitable for petrol, diesel heating oil and kerosene
    Pre filtration for refuelling out of fuel can and barrel
    Separates damaging free water (not used for emulsion) and contaminates from fuel
    Great for refuelling lawn mowers, chain saws, power generators, boat motors, construction equipment and site vehicles, etc.
    rugged construction
    PTFE coated stainless steel filter
    Self Cleaning
    4 sizes, 4 flow rates
    category_281037.jpg?time=1533756698
    Racor-part number Maximum Flow Rate Micron Rating Height Diameter
    RFF1C 10 L/min. 100µm 152 mm 89 mm
    RFF3C 15 L/min. 147µm 229 mm 140 mm
    RFF8C 19 L/min. 149µm 254 mm 216 mm
    RFF15C 57 L/min. 74µm 254 mm 216 mm

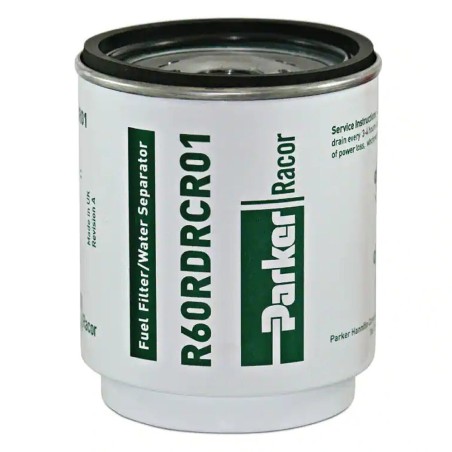

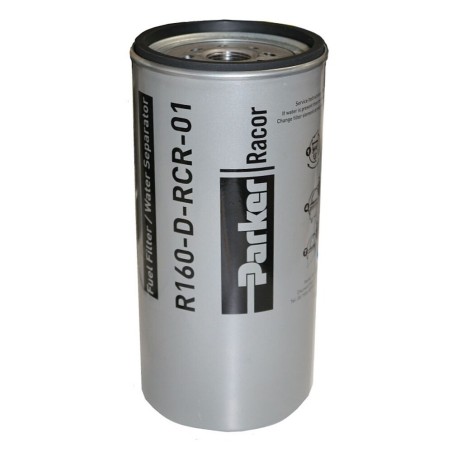

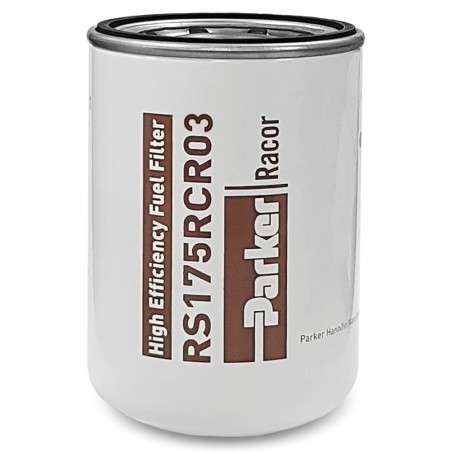

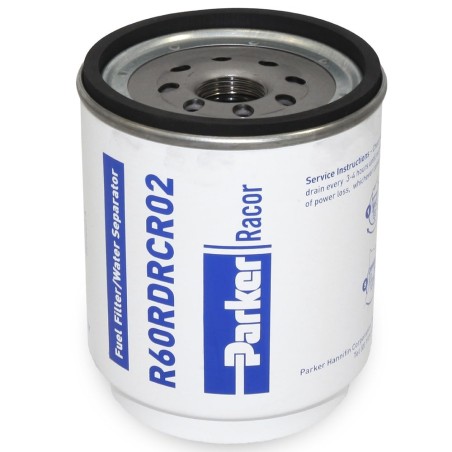

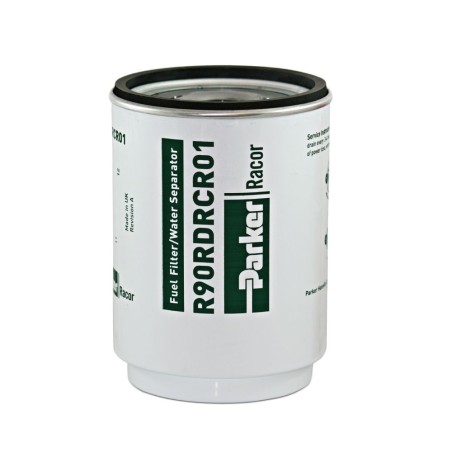

  • Spin-On Replacement Filters
    Spin-On Replacement...
    Racor Aquabloc II media is corrugated, allowing graeter surface area exposure for fuel filtration and an increased
    dirt-holding capacity
    Replacement Elements incl. Head and bowl seal

    Spin-On Replacement Elements are colour-coded : Brown = 2 Micron, Blue = 10 Micron, Red = 30 Micron

    category_281038.jpg?time=1534607522

    Replacement Elements Micron Rating Application   Replacement Elements Micron Rating Application
    R 12S 2µm 120A   R 60S 2µm 460R/660R
    R 12T 10µm 120A   R 60T 10µm 460R/660R
    R 12P 30µm 120A   R 60P 30µm 460R/660R
    R 15S 2µm 215R   R 60T-D-MAX 10µm 460RHH
    R 15T 10µm 215R   R 90S 2µm 490R/690R
    R 15P 30µm 215R   R 90T 10µm 490R/690R
    R 20S 2µm 230R   R 90P 30µm 490R/690R

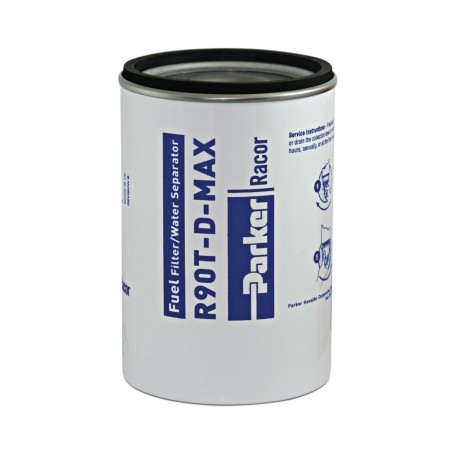

    R 20T 10µm 230R   R 90T-D-MAX 10µm 490RMSC/490RHH
    R 20P 30µm 230R   R 90P-D-MAX 30µm
    R 25S 2µm 245R   R 120S 2µm 4120R/6120R
    R 25T 10µm 245R   R 120T 10µm 4120R/6120R
    R 25P 30µm 245R   R 120P 30µm 4120R/6120R
    R 45S 2µm 445R/645R   R 160T 10µm 4160R
    R 45T 10µm 445R/645R   R 160P 30µm 4160R

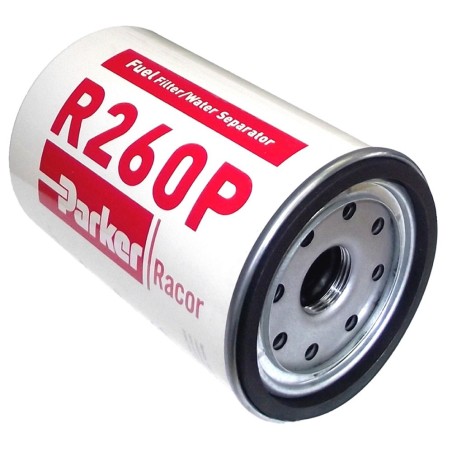

    R 45P 30µm 445R/645R   R 260T 10µm 260R
    R 52T 10µm 152R   R 260P 30µm 260R

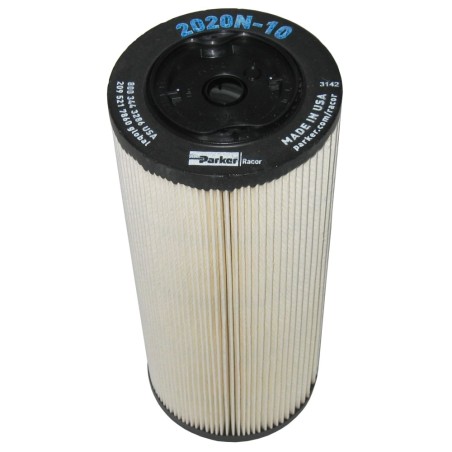

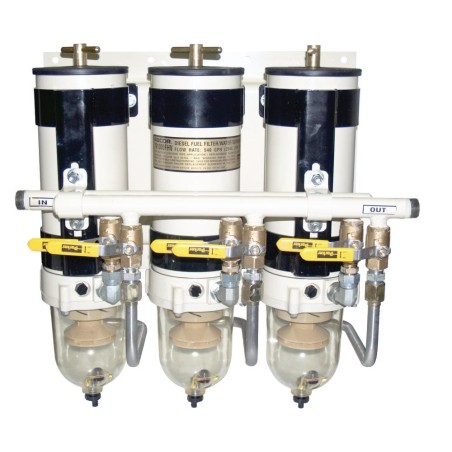

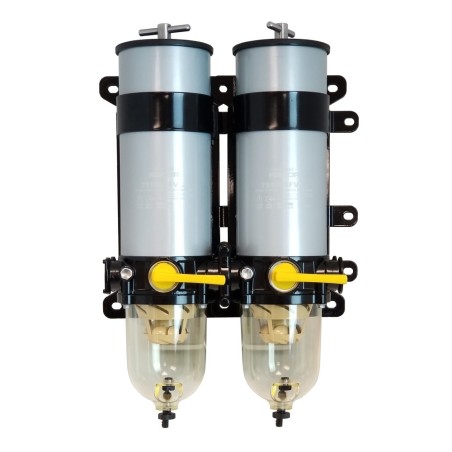

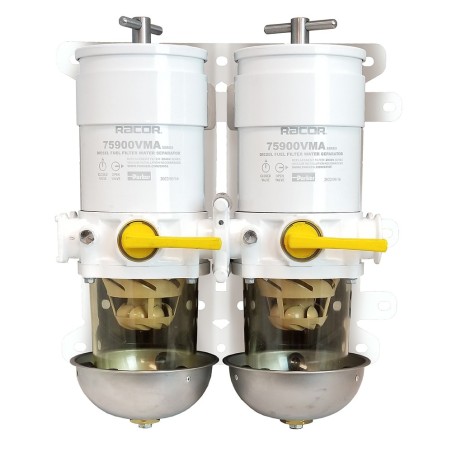

  • Turbine Replacement Elements
    Turbine Replacement...
    Racor Aquabloc II media is a blend of high grade cellulose compounded with resins and a special chemical treatmen
    Racor Replacement Elements with a complete kit of all seals
    End caps are colour-coded : Brown = 2 Micron, Blue = 10 Micron, Red = 30 Micron
    category_281033.jpg?time=1533817180
    Turbine Replacement Element Micron Rating Application
    2010SM-OR 2µm 500er Turbine
    2010TM-OR 10µm 500er Turbine
    2010PM-OR 30µm 500er Turbine
    2020SM-OR 2µm 1000er Turbine
    2020TM-OR 10µm 1000er Turbine
    2020PM-OR 30µm 1000er Turbine
    2040SM-OR 2µm 900er Turbine
    2040TM-OR 10µm 900er Turbine
    2040PM-OR 30µm 900er Turbine
