Suction Strainer Hydraulic Filters
Suction strainer hydraulic filters protect pumps by filtering contaminants before they enter the hydraulic system, ensuring longer pump life and smoother operation.
Use our Cross Reference or Part Finder Tool to find filters for your machinery.
Subcategories
-
G 1/4" Hydraulic...
For protecting pumps in the suction path of hydraulic systems from any coarse contaminants that may enter the tank Suitable for filtration of hydraulic fluids and lubricants Operating temperature -20°C to +100°C Information on volume flow dependent on test liquid and test conditions* Flow direction from outside to inside Increased filter surface by means of corrugation High operational reliability due to inner perforated framework Suction must take place below the level of the oil Optional: can be supplied with bypass Suction Strainer G ¼" (Size B).
For other sizes please enquire.
SF Article Length
L1
(mm)Length
L2
(mm)Diameter D (mm) Size
K
(mm)Fineness (µm) Material Mesh Material Thread Material Base Valve
/
MagnetVolume flow* (l/min) HY22495 45 36 63 19 150 Wire electro galvanized - 7 HY5975 57 51 32 22 90 Wire galvanized galvanized - 7 HY15775 57 51 45 22 90 Wire galvanized galvanized - 11 HY15740 60 41 46 22 100 V2A galvanized galvanized - 10 -
G 3/8" Hydraulic...
For protecting pumps in the suction path of hydraulic systems from any coarse contaminants that may enter the tank
Suitable for filtration of hydraulic fluids and lubricants
Operating temperature -20°C to +100°C
Information on volume flow dependent on test liquid and test conditions*
Flow direction from outside to inside
Increased filter surface by means of corrugation
High operational reliability due to inner perforated framework
Suction must take place below the level of the oil
Optional: can be supplied with bypassSuction Strainer G 3/8" (Size B)
For other sizes please enquireSF Article Length
L1
(mm)Length
L2
(mm)Diameter D (mm) Size
K
(mm)Fineness (µm) Material Mesh Material Thread Material Base Valve / Magnet Volume flow* (l/min) HY 5971 34 27 80 22 100 Wire galvanized galvanized - 14 HY 5990 35 26 50 22 90 Wire galvanized galvanized - 14 HY 5992 35 27 80 22 90 Wire galvanized galvanized - 16 HY 5976 59 51 32 22 90 Wire galvanized galvanized - 14 HY 15741 60 41 46 22 100 V2A PA6GF30 galvanized - 15 HY 18580 78 66 52 30 60 Wire Nylon Nylon - 10 HY 18581 78 66 52 30 90 Wire Nylon Nylon - 10 HY 18583 78 66 52 30 250 Wire Nylon Nylon - 10 HY 12119 78 69 52 22 30 Cellulose Aluminium Steel - 5 HY 12120 78 69 52 22 60 Wire Aluminium Steel - 10 HY 12118 78 69 52 22 90 Wire Aluminium Steel - 10 HY 18490 97 75 50 28 60 Wire Aluminium galvanized - 10 HY 18491 97 75 50 28 90 Wire Aluminium galvanized - 10 HY 18492 97 75 50 28 250 Wire Aluminium galvanized - 10 HY 18562 106 95 44 22 125 Wire Plastic galvanized - 15 HY 90338 106 97 50 22 30 Cellulose galvanized galvanized - 15 -
G 1/2" Hydraulic...
For protecting pumps in the suction path of hydraulic systems from any coarse contaminants that may enter the tank
Suitable for filtration of hydraulic fluids and lubricants
Operating temperature -20°C to +100°C
Information on volume flow dependent on test liquid and test conditions*
Flow direction from outside to inside
Increased filter surface by means of corrugation
High operational reliability due to inner perforated framework
Suction must take place below the level of the oil
Optional: can be supplied with bypassSuction Strainer G ½" (Size B)
For other sizes please enquire.SF Article Length
L1
(mm)Length
L2
(mm)Diameter D (mm) Size
K
(mm)Fineness (µm) Material Mesh Material Thread Material Base Valve (bar) Volume flow* (l/min) HY15742-

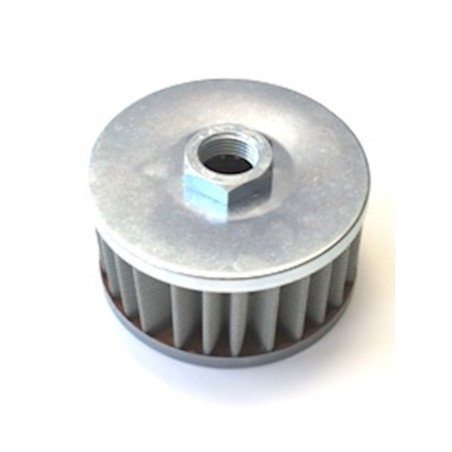

V4A55 41 61 27 100 V4A V4A V4A - 30 HY15742 55 42 61 27 100 V2A PA6GF30 galvanized - 30 HY9614 58 51 99 30 250 Wire galvanized galvanized - 25 HY11725 60 45 57 36 130 V2A Plastic galvanized - 16 HY18584 78 66 52 30 60 Wire Nylon Nylon - 15 HY18584-BYPASS 78 66 52 30 60 Wire Nylon Nylon 0,3 15 HY18585 78 66 52 30 90 Wire Nylon Nylon - 15 HY18587 78 66 52 30 250 Wire Nylon Nylon - 15 HY10268 80 59 45 22 100 V2A Steel Steel - 15 HY12124 88 77 69 27 60 Wire Aluminium galvanized - 17 HY12122 88 77 69 27 90 Wire Aluminium galvanized - 17 HY18588 95 85 70 41 60 Wire Nylon Nylon - 15 HY18589 95 85 70 41 90 Wire Nylon Nylon - 15 HY18590 95 85 70 41 250 Wire Nylon Nylon - 15 HY18493 97 75 50 28 60 Wire Aluminium galvanized - 15 HY18494 97 75 50 28 90 Wire Aluminium galvanized - 15 HY18495 97 75 50 28 250 Wire Aluminium galvanized - 15 HY13614 97 89 44 30 75 Wire Polyamid Polyamid - 15 HY18589-BYPASS 102 85 70 41 90 Wire Nylon Nylon 0,3 15 HY9986 102 95 63 30 120 Wire galvanized galvanized - 26 HY9209 103 92 70 65 105 Wire Aluminium galvanized - 20 HY18563 105 96 44 27 125 Wire Plastic galvanized - 15 HY18496 107 80 70 28 60 Wire Aluminium galvanized - 15 HY18497 107 80 70 28 90 Wire Aluminium galvanized - 15 HY18498 107 80 70 28 250 Wire Aluminium galvanized - 15 HY18563-BYPASS 108 94 46 35 125 V2A Nylon galvanized 0,17 15 HY18921 140 129 70 41 250 Wire Nylon Nylon - 25 -
G 3/4" Hydraulic...
For protecting pumps in the suction path of hydraulic systems from any coarse contaminants that may enter the tank
Suitable for filtration of hydraulic fluids and lubricants
Operating temperature -20°C to +100°C
Information on volume flow dependent on test liquid and test conditions*
Flow direction from outside to inside
Increased filter surface by means of corrugation
High operational reliability due to inner perforated framework
Suction must take place below the level of the oil
Optional: can be supplied with bypassSuction Strainer G ¾" (Size B)
For other sizes please enquireSF Article Length
L1
(mm)Length
L2
(mm)Diameter D (mm) Size
K
(mm)Fineness (µm) Material Mesh Material Thread Material Base Valve (bar)/ Magnet Volume flow** (l/min) HY 90244 72 69 62 32 150 Wire Electro- galvanized - 51 HY 90331 79 67 75 36 150 Wire Aluminium Steel - 50 HY 15743 87 75 61 32 100 V2A PA6GF30 galvanized - 50 HY 10349 90 74 59 36 100 V2A Steel Steel - 35 HY 10270 90 74 70 36 100 V2A Steel Steel - 35 HY 18591 95 83 70 41 60 Wire Nylon Nylon - 30 HY 18592 95 83 70 41 90 Wire Nylon Nylon - 30 HY 18593 95 83 70 41 250 Wire Nylon Nylon - 30 HY 18564 111 95 65 42 125 Wire Plastic galvanized - 25 HY 18500 114 80 70 42 90 Wire Aluminium galvanized - 32 HY 18501 114 80 70 42 250 Wire Aluminium galvanized - 32 HY 13509 127 110 63 46 75 Wire Polyamide Polyamide - 40 HY 13275 127 110 63 46 125 Wire Polyamide Polyamide - 40 HY 5983 136 129 89 36 60 V2A galvanized - 35 HY 18594 140 128 70 41 60 Wire Nylon Nylon - 30 HY 18594-
BYP144 128 70 41 60 Wire Nylon Nylon 0,3 30 HY 18595 140 128 70 41 90 Wire Nylon Nylon - 30 HY 18595-
BYP144 128 70 41 90 Wire Nylon Nylon 0,3 30 HY 18597 140 128 70 41 250 Wire Nylon Nylon - 30 HY 18931 144 134 65 41 90 Wire Nylon Nylon - 30 HY 18502 159 125 70 42 60 Wire Aluminium galvanized - 45 HY 18502-Magnet 159 125 70 42 60 Wire Aluminium galvanized Magnet 45 HY18503 159 125 70 42 90 Wire Aluminium galvanized - 45 HY 18503-Magnet 159 125 70 42 90 Wire Aluminium galvanized Magnet 45 HY 18504 159 125 70 42 252 Wire Aluminium galvanized - 45 -
G 1" Hydraulic Suction...
For protecting pumps in the suction path of hydraulic systems from any coarse contaminants that may enter the tank
Suitable for filtration of hydraulic fluids and lubricants
Operating temperature -20°C to +100°C
Information on volume flow dependent on test liquid and test conditions*
Flow direction from outside to inside
Increased filter surface by means of corrugation
High operational reliability due to inner perforated framework
Suction must take place below the level of the oil
Optional: can be supplied with bypassSuction Strainer G 1" (Size B)
For other sizes please enquireSF Article Length
L1
(mm)Length
L2
(mm)Diameter D (mm) Size K (mm) Fineness (µm) Material Mesh Material Thread Material Base Valve (bar)/ Magnet Volume flow* (l/min) HY 90310 85 72 82 41 150 Wire Electro- galvanized - 91 HY 15807 87 66 87 41 100 V2A galvanized galvanized - 60 HY 11555 95 76 78 55 130 V2A Plastic galvanized - 100 HY 12131 97 83 95 46 30 Cellulose Aluminium Steel - 20 HY 12132 97 83 95 46 60 Wire Aluminium Steel - 43 HY 12130 97 83 95 46 90 Wire Aluminium Steel - 43 HY 12133 97 83 95 46 250 Wire Aluminium Steel - 43 HY 15744 108 87 87 41 100 V2A PA6GF30 galvanized - 80 HY 15744-
V4A108 87 86 41 100 V4A V4A V4A - 80 HY 17098 111 96 86 65 125 V2A Nylon galvanized - 50 HY 18566 114 94 94 51 125 Wire Plastic galvanized - 47 HY 90528 120 109 70 41 125 Wire Nylon Nylon - 50 HY 10276 133 117 70 41 100 V2A Steel Steel - 60 HY 10279 133 117 70 41 100 V2A Steel Steel 0,3 60 HY 9308 140 122 64 42 25 Cellulose Plastic galvanized - 30 HY 18565 140 126 65 42 125 Wire Plastic galvanized - 43 HY 9232 140 126 85 41 105 Wire Aluminium galvanized - 80 HY 18598 140 128 70 41 60 Wire Nylon Nylon - 50 HY 18599 140 128 70 41 90 Wire Nylon Nylon - 50 HY 18600 140 128 70 41 250 Wire Nylon Nylon - 50 HY 18565-
BYP141 124 64 54 125 V2A Nylon galvanized 0,17 50 HY 12135 142 131 75 46 30 Cellulose Aluminium Steel - 25 HY 12136 142 132
75 46 60 Wire Aluminium Steel - 45 HY 12134 142 133 70 46 90 Wire galvanized galvanized - 45 HY 18510 145 114 99 42 60 Wire Aluminium verzint - 50 HY 18511 145 114 99 42 90 Wire Aluminium galvanized - 50 HY 18513 145 114 99 42 250 Wire Aluminiu galvanized - 50 HY 18598-
BYP146 129 70 41 60 Wire Nylon Nylon 0,3 50 HY 18599-
BYP146 129 70 41 90 Wire Nylon Nylon 0,3 50 HY 18512-
MAGNET148 114 99 42 90 Wire Aluminium galvanized Magnet 50 HY 18513-
MAGNET148 114 99 42 250 Wire Aluminium galvanized Magnet 50 HY 15749 152 132 87 41 100 V2A PA6GF30 galvanized - 120 HY 18507 159 129 70 42 60 Wire Aluminium galvanized - 50 HY 18508 159 125 70 42 90 Wire Aluminium galvanized - 50 HY 18509 159 125 70 42 250 Wire Aluminium galvanized - 50 HY 13276 159 142 63 46 125 Wire Polyamide Polyamide - 50 HY 13276-
BYP177 142 63 46 125 Wire Polyamide Polyamide 0,2 50 HY 90138 180 172 75 46 90 Wire Aluminium galvanized - 90 HY 9139 198 186 70 46 10 Cellulose Nylon galvanized - 30 HY 9111 320 300 70 41 40 Wire Steel Steel - 40 HY 13280 322 305 65 42 25 Microfiber Plastic galvanized - 20 -
G 1-1/4" Hydraulic...
For protecting pumps in the suction path of hydraulic systems from any coarse contaminants that may enter the tank
Suitable for filtration of hydraulic fluids and lubricants
Operating temperature -20°C to +100°C
Information on volume flow dependent on test liquid and test conditions*
Flow direction from outside to inside
Increased filter surface by means of corrugation
High operational reliability due to inner perforated framework
Suction must take place below the level of the oil
Optional: can be supplied with bypassSuction Strainer G 1¼" (Size B) SF Article Length
L1
(mm)Length
L2
(mm)Diameter D (mm) Size
K
(mm)Fine- ness (µm) Material Mesh Material Tread Material Base Valve (bar)/
MagnetVolume
flow* (l/min)HY 22881 87 71 104 50 60 Wire Electro- galvanized - 140 HY 90243 87 71 104 50 150 Wire Electro- galvanized - 140 HY 12140 94 78 140 60 60 Wire Aluminium Steel - 64 HY 12138 94 78 140 60 90 Wire Aluminium Steel - 65 HY 15745 122 101 99 46 100 V2A PA6GF30 galvanized - 150 HY 11955 130 111 78 55 130 V2A Plastic galvanized - 130 HY 18601 135 116 99 69 60 Wire Nylon Nylon - 90 HY 18602 135 116 99 69 90 Wire Nylon Nylon - 90 HY 18603 135 116 99 69 250 Wire Nylon Nylon - 90 HY 18906 135 116 99 69 500 Wire Nylon Nylon - 90 HY 15745-
V4A143 102 11 050 100 V4A V4A V4A - 150 HY 18514 147 114 99 60 60 Wire Aluminium galvanized - 90 HY 18514-MAGNET 147 114 99 60 60 Wire Aluminium galvanized Magnet 90 HY 18515 147 114 99 60 90 Wire Aluminium galvanized - 90 HY 18515-MAGNET 147 114 99 60 90 Wire Aluminium galvanized Magnet 90 HY 18516 147 114 99 60 250 Wire Aluminium galvanized - 90 HY 9269 147 114 99 60 250 Wire Aluminium galvanized - 80 HY 12144 184 172 95 60 60 Wire Aluminium galvanized - 65 HY 12142 184 172 95 60 93 Wire Aluminium galvanized - 65 HY 9103 195 175 105 70 90 Wire Steel galvanized - 90 HY 10280 205 185 70 50 100 V2A Steel Steel - 90 HY 18604 224 206 99 69 60 Wire Nylon Nylon - 90 HY 18605 224 206 99 69 90 Wire Nylon Nylon - 90 HY 18606 224 206 99 69 250 Wire Nylon Nylon - 90 HY 18861 224 206 99 69 500 Wire Nylon Nylon - 90 HY 18517 237 204 99 60 60 Wire Aluminium galvanized - 90 HY 18517-MAGNET 237 204 99 60 60 Wire Aluminium galvanized Magnet 90 HY 18518 237 204 99 60 60 Wire Aluminium galvanized - 90 HY 18519 237 204 33 60 250 Wire Aluminium galvanized - 90 -
G 1-1/2" Hydraulic...
For protecting pumps in the suction path of hydraulic systems from any coarse contaminants that may enter the tank
Suitable for filtration of hydraulic fluids and lubricants
Operating temperature -20°C to +100°C
Information on volume flow dependent on test liquid and test conditions*
Flow direction from outside to inside
Increased filter surface by means of corrugation
High operational reliability due to inner perforated framework
Suction must take place below the level of the oil
Optional: can be supplied with bypassSuction Strainer G 1½" (Size B)
SF Artikel Length
L1
(mm)Length
L2
(mm)Diameter D (mm) Size
K
(mm)Fineness (µm) Material Mesh Material Thread Material Base Valve (bar)
/
MagnetVolumen-
flow* (l/min)HY 90123 91 81 126 60 100 Wire Steel Steel - 45 HY 10274 92 75 100 70 670 V2A Steel Steel - 120 HY 12148 113 99 140 60 60 Wire Aluminium galvanized - 85 HY 12146 113 99 140 60 90 Wire Aluminium galvanized - 85 HY 90151 132 113 99 46 150 Wire Nylon galvanized - 150 HY 18614 135 117 99 69 60 Wire Nylon Nylon - 150 HY 18615 135 117 99 69 90 Wire Nylon Nylon - 150 HY 18616 135 117 99 69 250 Wire Nylon Nylon - 150 HY 18567 140 122 85 68 125 Wire Plastic galvanized - 75 HY 15746 159 131 99 50 100 V2A PA6GF30 galvanized - 240 HY 18617 160 142 130 69 60 Wire Nylon Nylon - 150 HY 18618 160 142 130 69 90 Wire Nylon Nylon - 150 HY 18619 160 142 130 69 250 Wire Nylon Nylon - 150 HY 18525 172 141 130 60 90 Wire Aluminum galvanized - 150 HY 18568 178 160 86 69 125 Wire Plastic galvanized - 90 HY 90394 180 160 115 62 90 Wire Steel Steel - 90 HY 10284 182 165 100 70 100 V2A Aluminum Steel - 120 HY 10287 182 165 100 70 100 V2A Aluminum Steel 0,3 120 HY 15795 189 160 99 50 100 V2A PA6GF30 galvanized - 290 HY 18929 201 183 86 69 90 Wire Nylon Nylon - 150 HY 18569 203 180 86 69 125 Wire Plastic galvanized - 115 HY 18569-
BYP203 185 86 64 125 V2A Nylon galvanized 0,17 130 HY 13277 213 196 86 69 75 Wire Polyamide Polyamide - 80 HY 13278 213 196 86 69 125 Wire Polyamide Polyamide - 80 HY 12150 217 206 95 60 90 Wire Aluminium Steel - 90 HY 18607 224 206 99 69 60 Wire Nylon Nylon - 150 HY 18608 224 206 99 69 90 Wire Nylon Nylon - 150 HY 18609 224 206 99 69 250 Wire Nylon Nylon - 150 HY 18927 224 206 99 69 700 Wire Nylon Nylon - 150 HY 13278-
BYP228 198 86 69 125 Wire Polyamide Polyamide 0,2 80 HY 18608-
BYP230 206 99 69 90 Wire Nylon Nylon 0,3 150 HY 18520 237 204 99 60 60 Wire Aluminium galvanized - 150 HY 18521 237 204 99 60 90 Wire Aluminium galvanized - 150 HY 18522 237 204 99 60 250 Wire Aluminium galvanized - 150 For other sizes please enquire
-
G 2" Hydraulic Suction...
For protecting pumps in the suction path of hydraulic systems from any coarse contaminants that may enter the tank
Suitable for filtration of hydraulic fluids and lubricants
Operating temperature -20°C to +100°C
Information on volume flow dependent on test liquid and test conditions*
Flow direction from outside to inside
Increased filter surface by means of corrugation
High operational reliability due to inner perforated framework
Suction must take place below the level of the oil
Optional: can be supplied with bypassSuction Strainer G 2" (Size B)
SF Article Length
L1
(mm)Length
L2
(mm)Diameter D (mm) Size
K
(mm)Fineness(µm) Material Mesh Material Thread Material Base Valve (bar)
/
MagnetVolume flow* (l/min) HY 10311 93 82 100 75 640 Wire Steel galvanized - HY 22502 130 110 124 70 60 Wire Electro- galvanized - 337 HY 90237 130 110 124 70 150 Wire Electro- galvanized - 337 HY 18573 148 125 150 105 125 Wire Plastic galvanized - 227 HY 12155 153 139 140 80 30 Cellulose Aluminium Steel - 60 HY 12156 153 139 140 80 60 Wire Aluminium Steel - 116 HY 12154 153 139 140 80 90 Wire Aluminium Steel - 116 HY 18527 160 140 130 80 60 Wire Aluminium galvanized - 315 HY 18528 160 140 130 80 90 Wire Aluminium galvanized - 315 HY 18529 160 140 130 80 250 Wire Aluminium galvanized - 315 HY 18620 160 142 130 60 60 Wire Nylon Nylon - 315 HY 18621 160 142 130 69 90 Wire Nylon Nylon - 315 HY 18622 160 142 130 69 250 Wire Nylon Nylon - 315 HY 11616 180 158 110 75 130 V2A Plastic galvanized - 175 HY 90419 190 175 86 74 125 V2A Plastic galvanized - 170 HY 10291 213 197 100 70 100 V2A Aluminium Steel - 200 HY 10375 213 197 100 70 100 V2A Aluminium Steel 0,3 150 HY 12159 220 207 140 80 30 Cellulose Aluminium Steel - 90 HY 12160 220 207 140 80 60 Wire Aluminium Steel - 186 HY 12158 220 207 140 80 90 Wire Aluminium Steel - 186 HY 12161 220 207 140 80 250 Wire Aluminium Steel - 186 HY 18610 227 208 99 69 60 Wire Nylon Nylon - 315 HY 18611 227 208 99 69 90 Wire Nylon Nylon - 315 HY 18613 227 208 99 69 250 Wire Nylon Nylon - 230 HY 90157 250 206 140 80 250 Wire Aluminium Steel Stirrup 135 HY 18570 260 240 86 69 125 Wire Plastic galvanized - 315 HY 18623 263 245 130 69 60 Wire Nylon Nylon - 315 HY 18624 263 245 130 69 90 Wire Nylon Nylon - 315 HY 18625 266 245 130 69 250 Wire Nylon v - 315 HY 18530 266 240 130 80 60 Wire Aluminium galvanized - 315 HY 18532 266 240 130 80 90 Wire Aluminium galvanized - 315 HY 18532-
MAGNET266 240 130 80 90 Wire Aluminium galvanized Magnet 315 HY 18534 266 240 130 80 250 Wire Aluminium galvanized - 315 HY 18625-
BYP270 245 130 69 250 Wire Nylon Nylon 0,3 315 HY 18571 311 290 86 69 125 Wire Plastic galvanized - 180 HY 13645 311 295 87 70 75 Wire Polyamide Polyamide - 200 HY 18538 320 298 136 80 60 Wire Aluminium galvanized - 315 HY 18540 320 298 136 80 250 Wire Aluminium galvanized - 315 HY 9142 327 305 105 70 40 Wire Steel galvanized - HY 9143 327 305 105 70 100 Wire Steel galvanized - HY 18572 331 310 86 69 125 Wire Plastic galvanized - 223 For other sizes please enquire
-
G 2-1/2" Hydraulic...
For protecting pumps in the suction path of hydraulic systems from any coarse contaminants that may enter the tank
Suitable for filtration of hydraulic fluids and lubricants
Operating temperature -20°C to +100°C
Information on volume flow dependent on test liquid and test conditions*
Flow direction from outside to inside
Increased filter surface by means of corrugation
High operational reliability due to inner perforated framework
Suction must take place below the level of the oil
Optional: can be supplied with bypassSuction Strainer G 2½" (Size B)
SF Article Length
L1
(mm)Length
L2
(mm)Diameter D (mm) Size
K
(mm)Fineness (µm) Material Mesh Material Thread Material Base Valve (bar)
/
MagnetVolume
flow* (l/min)HY 10293 191 165 150 Ø89 100 V2A Steel Steel - 350 HY 18574 218 190 150 105 125 Wire Plastic galvanized - 340 HY 18626 270 245 130 101 60 Wire Nylon Nylon - 490 HY 18627 270 245 130 10 90 Wire Nylon Nylon - 490 HY 18628 270 245 130 101 250 Wire Nylon Nylon - 490 HY 18627-BYP 277 245 130 101 90 Wire Nylon Nylon 0,3 490 HY 18628-BYP 277 245 130 101 250 Wire Nylon Nylon 0,3 490 HY 18535 280 250 136 91 60 Wire Aluminium galvanized - 490 HY 18536 280 250 136 91 90 Wire Aluminium galvanized - 490 HY 18537 280 250 136 91 250 Wire Aluminium galvanized - 490 HY 18535-MAGNET 280 250 136 91 60 Wire Aluminium galvanized Magnet 490 HY 18536-MAGNET 280 250 136 91 90 Wire Aluminium galvanized Magnet 490 -
G 3" Hydraulic Suction...
For protecting pumps in the suction path of hydraulic systems from any coarse contaminants that may enter the tank
Suitable for filtration of hydraulic fluids and lubricants
Operating temperature -20°C to +100°C
Information on volume flow dependent on test liquid and test conditions*
Flow direction from outside to inside
Increased filter surface by means of corrugation
High operational reliability due to inner perforated framework
Suction must take place below the level of the oil
Optional: can be supplied with bypassSuction Strainer G 3" (Size B)
SF Article Length
L1
(mm)Length
L2
(mm)Diameter D (mm) Size
K
(mm)Fineness (µm) Material Mesh Material Thread Material Base Valve (bar) / Magnet Volume flow** (l/min) HY 18629 270 245 130 101 60 Wire Nylon Nylon - 525 HY 18630 270 245 130 101 90 Wire Nylon Nylon - 525 HY 18631 270 245 130 101 250 Wire Nylon Nylon - 525 HY 18575 270 245 150 105 125 Wire Plastic galvanized - 455 HY 9659 277 245 130 101 60 Wire Nylon Nylon 0,3 525 HY 18630-
BYP277 245 130 101 90 Wire Nylon Nylon 0,3 525 HY 18632 330 303 130
101 60 Wire Nylon Nylon - 525 HY 18633 330 303 130 101 90 Wire Nylon Nylon - 525 HY 18634 330 303 130 101 250 Wire Nylon Nylon - 525 HY 18541 333 300 136 106 60 Wire Aluminium galvanized - 525 HY 18542 333 300 136 106 90 Wire Aluminium galvanized - 525 HY 18543 333 300 136 106 250 Wire Aluminium galvanized - 525 HY 18576 352 325 150 106 125 Wire Aluminium galvanized - 570 For other sizes please enquire
