SF hydraulic filter

SF hydraulic filters

Subcategories

  • Air breather dryer filter

    Air breather dryer filter are a combination between an air breather filter and an air dryer
    Application: ventilation of hydraulic oil tanks and gear units
    Lubrication (water) downgrades the quality of the oil additives and accelerates the oil ageing
    Temperature variations in the hydraulic system let water condense and cause corrosion in system components
    Consequence: unplanned availability time of the system and high maintenance costs
    For the installation five sizes of adaptors are available (see below second chart)
    Non-recurrent expense for the reusable adapter reduced the follow-up costs

    category_280867.jpg?time=1533650213

    SF-part number SBL 26060
    Housing plastic material
    De-airing valve -
    Replacement granulate -
    Water absorption 320 ml
    Volume 1000 ml
    Volume flow (nominal) 550 l/min.
    Volume flow (maximal) 1000 l/min.
    Dimension Ø 132 x 160 mm
    Working temperature -20°C - +70°C
    Fineness of filtration 3 micron
    Humidity removal granulate silica gel (colour indicator orange to green)



    SF-part number Adaptor
    SBL 26060 Air breather filter
    SF-ZUB 26060/1 G 3/4" BSPT external thread
    SF-ZUB 26060/2 G 1" BSPT external thread
    SF-ZUB 26060/3 G 1 1/4" BSPT external thread
    SF-ZUB 26060/4 G 1 1/2" BSPT external thread
    SF-ZUB 26060/5 G 2" BSPT external thread

  • Fluid Level Gauge SNA
    SBy using the SNA, the fluid level can be easily seen on the outside of the tank
    The fluid is clearly visible in the tube
    5 sizes from 76 mm to 381 mm centre distance of bolts
    optional: visual thermometer with °C and °F scale
    Mounting with banjo bolt thread M10 or M12
    Seals: NBR (Perbunan), optional: viton
    other types on request
    category_280868.jpg?time=1535109864
    Centre distance of bolts L3 L1 L2
    76 108 37 76
    127 159 88 127
    176 208 137 176
    254 286 215 254
    381 413 342 381
  • Pressure Filters...

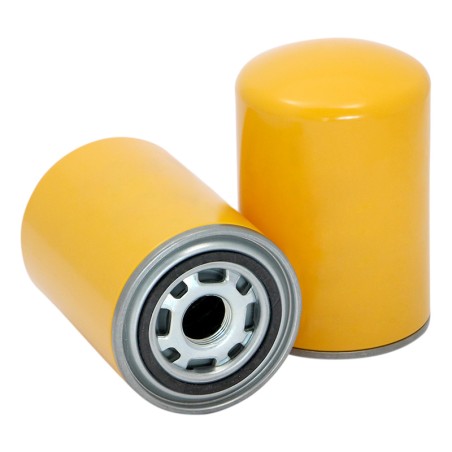

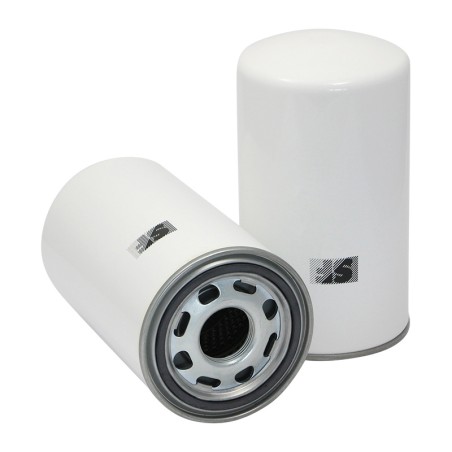

  • Spin-On Filter Suction...
