    Spin-On In-Line Filter Suction - Return MPS 50 max. flow rate 69 l/min. - thread G ¾"

    The MPS spin-on filter series are for suction and return applications in hydraulic
    and lubrication circuits
    Element material: resin impregnated paper media (P), inorganic microfiber (A)
    or wire mesh (M)
    Filter head: Aluminium, Port size G ¾"
    - MPS 50-0 - Head without bypass valve, visual indicator available for suction and return flow
    - MPS 50-R - Head with bypass valve, differential opening pressure 1,75 bar ± 10%, visual indicator for return flow available
    - MPS 50-S - Head with bypass valve, differential opening pressure 0,3 bar ± 10%,
    visual indicator for suction flow available
    Working temperature -25°C - +110°C
    Working pressure max. 12 bar - differential pressure max. 4 bar
    MPS 50

    MPS 50 Material - fineness Return/Line flow (l/min) Suction flow (l/min) Length H (mm) Length H1 (mm) Filtering area (cm²)
    SPH 18847 A 03 40 9 180 200 1900
    SPH 18848 A 06 44 11 180 200 1900
    SPH 18049 A 10 48 14 180 200 1900
    SPH 18648 A 25 58 18 180 200 1900
    SPH 18052 M 60 --- 24 180 200 1000
    SPH 18053 M 125 --- 24 180 200 1000

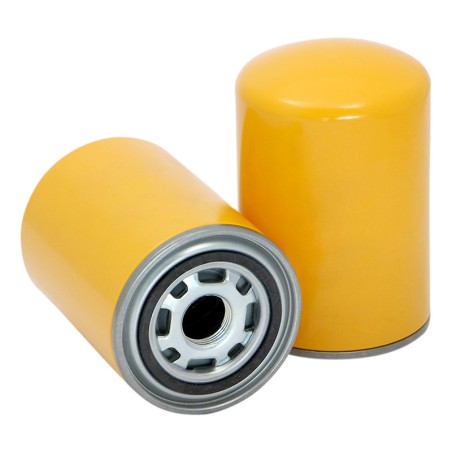

    SPH 18649 M 150 --- 24 180 200 1000
    SPH 18050 P 10 55 16 180 200 2440
    SPH 18051 P 25 66 18 180 200 2440
    max. flow rate measured with oil kinematic viscosity of 30 mm²/s and ?P 0,4 bar in return and 8 kPa in suction

      Material - fineness Return/Line flow (l/min) Suction flow (l/min) Length H (mm) Length H1 (mm) Filtering area (cm²)

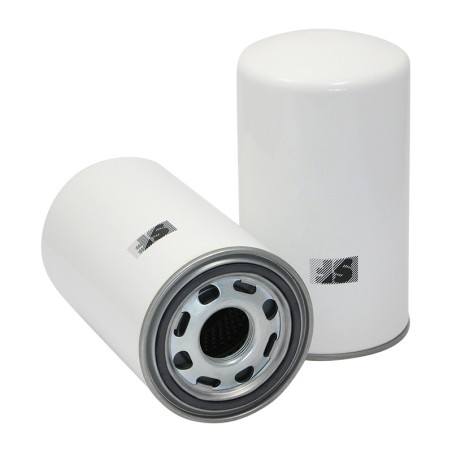

    SPH 18710 A 03 45 11 248 268 3160
    SPH 18711 A 06 49 13 248 268 3160
    SPH 18650 A 10 53 15 248 268 3160
    SPH 18651 A 25 63 20 248 268 3160
    SPH 18056 M 60 --- 26 248 268 1270
    SPH 18057 M 125 --- 26 248 268 1270
    SPH 18054 P 10 58 18 248 268 4140
    SPH 18055 P 25 69 20 248 268 4140
  • G 1¼" MPS 100 max. flow rate 170 l/min
    G 1¼" MPS 100 max....

    Spin-On In-Line Filter Suction - Return MPS 100 max. flow rate 170 l/min. - thread G 1¼"

    The MPS spin-on filter series are for suction and lubrication circuits
    Element material: resin impregnated paper media (P), inorganic microfiber (A)
    or wire mesh (M)
    Filter head: Aluminium, Port size G 1¼"
    - MPS 100-0 - Head without bypass valve, visual indicator available for suction an return flow
    - MPS 100-R - Head with bypass valve, differential opening pressure 1,75 bar ± 10%,
    visual indicator for return flow available
    - MPS 100-S - Head with bypass valve, differential opening pressure 0,3 bar ± 10%,
    visual indicator for suction flow available
    Working temperature -25°C - +110°C
    Working pressure max. 12 bar - differential pressure max. 4 bar
    MPS 100

    Image Part Number Type Note
    MPS100-R Filter flange
    MPS100-S Filter flange
    MPS100-0 Filter flange filter head - input/output G 1 1/4" - thread 1 1/2"-16 UNF - only for canister with 129 mm diameter

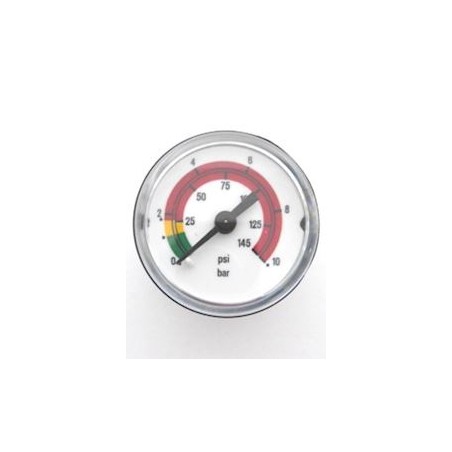

    0390002.1 Manometer visual indicator for return and in-line filter
    ER-MANOMETER Manometer pressure switch with N.O. contacts
    EC-MANOMETER Manometer pressure switch with N.C. contacts
    0390004.1 Manometer visual indicator for suction filter
    ES-MANOMETER Manometer vacuum switch with change over contact for suction filter

    MPS-100 Spin-On in-line filters

    MPS 100 Material - fineness Return/Line flow (l/min) Suction flow (l/min) Length H (mm) Length H1 (mm) Filtering area (cm²)
    SPH 18690 A 03 75 16 241 266 3950
    SPH 18059 A 06 85 19 241 266 3950
    SPH 18060 A 10 110 25 241 266 3950
    SPH 18061 A 25 140 40 241 266 3950
    SPH 18063 M 60 --- 65 241 266 1990
    SPH 18064 M 125 --- 65 241 266 1990
    SPH 18058 P 10 130 35 241 266 4300
    SPH 18062 P 25 140 42 241 266 4300
    max. flow rate measured with oil kinematic viscosity of 30 mm²/s and ?P 0,4 bar in return and 8 kPa in suction

      Material - fineness Return/Line flow (l/min) Suction flow (l/min) Length H (mm) Length H1 (mm) Filtering area (cm²)
    SPH 18905 A 03 85 18 286 311 5390
    SPH 18912 A 06 100 22 286 311 5390
    SPH 18065 A 10 115 30 286 311 5390
    SPH 18066 A 25 160 45 286 311 5390
    SPH 18069 M 60 --- 68 286 311 2400
    SPH 18070 M 125 --- 68 286 311 2400
    SPH 18067 P 10 150 40 286 311 5760
    SPH 18068 P 25 170 48 286 311 5760
    max. flow rate measured with oil kinematic viscosity of 30 mm²/s and ?P 0,4 bar in return and 8 kPa in suction
  • G 1½"MPS 200 max. flow rate 330 l/min
    G 1½"MPS 200 max. flow...

    Spin-On In-Line Filter Suction - Return MPS 200 max. flow rate 330 l/min. - thread G 1½"

    The MPS spin-on filter series are for suction and return applications in hydraulic
    and lubrication circuits
    Element material: resin impregnated paper media (P), inorganic microfiber (A)
    or wire mesh (M)
    Filter head: Aluminium, Port size G 1½"
    - MPS 200-0 - Head without bypass valve, visual indicator available for suction an return flow
    - MPS 200-R - Head with bypass valve, differential opening pressure 1,75 bar ± 10%,
    visual indicator for return flow available
    - MPS 200-S - Head with bypass valve, differential opening pressure 0,3 bar ± 10%,
    visual indicator for suction flow available
    Working temperature -25°C - +110°C
    Working pressure max. 12 bar - differential pressure max. 4 bar
    MPS 200

    MPS 200 Material - fineness Return/Line flow (l/min) Suction flow (l/min) Length H (mm) Length H1 (mm) Filtering area (cm²)
    2 x SPH 18690 A 03 130 30 216 241 7900
    2 x SPH 18059 A 06 170 45 216 241 7900
    2 x SPH 18060 A 10 220 65 216 241 7900
    2 x SPH 18061 A 25 290 110 216 241 7900
    2 x SPH 18063 M 60 --- 120 216 241 3980
    2 x SPH 18064 M 125 --- 120 216 241 3980
    2 x SPH 18058 P 10 270 100 216 241 8600
    2 x SPH 18062 P 25 290 120 216 241 8600
    max. flow rate measured with oil kinematic viscosity of 30 mm²/s and ?P 0,4 bar in return and 8 kPa in suction

      Material - fineness Return/Line flow (l/min) Suction flow (l/min) Length H (mm) Length H1 (mm) Filtering area (cm²)
    2 x SPH 18905 A 03 180 50 216 286 10780
    2 x SPH 18912 A 06 210 60 216 286 10780
    2 x SPH 18065 A 10 250 80 216 286 10780
    2 x SPH 18066 A 25 310 125 216 286 10780
    2 x SPH 18069 M 60 --- 130 216 286 4800
    2 x SPH 18070 M 125 --- 130 216 286 4800
    2 x SPH 18067 P 10 280 118 216 286 11520
    2 x SPH 18068 P 25 330 158 216 286 11520
    max. flow rate measured with oil kinematic viscosity of 30 mm²/s and ?P 0,4 bar in return and 8 kPa in suction
  • G 1½"MPS 300 max. flow rate 330 l/min
    G 1½"MPS 300 max. flow...

    Spin-On In-Line Filter Suction - Return MPS 300 max. flow rate 330 l/min. - thread G 1½"

    The MPS spin-on filter series are for suction and return applications in hydraulic
    and lubrication circuits
    Element material: resin impregnated paper media (P), inorganic microfiber (A)
    or wire mesh (M)
    Filter head: Aluminium, Port size G 1½"
    - MPS 300-0 - Head without bypass valve, visual indicator available for suction an return flow
    - MPS 300-R - Head with bypass valve, differential opening pressure 1,75 bar ± 10%,
    visual indicator for return flow available
    - MPS 300-S - Head with bypass valve, differential opening pressure 0,3 bar ± 10%,
    visual indicator for suction flow available
    Working temperature -25°C - +110°C
    Working pressure max. 12 bar - differential pressure max. 4 bar
    MPS 300



    MPS 300 Material - fineness Return/Line flow (l/min) Suction flow (l/min) Length H (mm) Length H1 (mm) Filtering area (cm²)
    2 x SPH 18690 A 03 130 30 265 290 7900
    2 x SPH 18059 A 06 170 45 265 290 7900
    2 x SPH 18060 A 10 220 65 265 290 7900
    2 x SPH 18061 A 25 290 110 265 290 7900
    2 x SPH 18063 M 60 --- 120 265 290 3980
    2 x SPH 18064 M 125 --- 120 265 290 3980
    2 x SPH 18058 P 10 270 100 265 290 8600
    2 x SPH 18062 P 25 290 120 265 290 8600

    max. flow rate measured with oil kinematic viscosity of 30 mm²/s and ?P 0,4 bar in return and 8 kPa in suction

      Material - fineness Return/Line flow (l/min) Suction flow (l/min) Length H (mm) Length H1 (mm) Filtering area (cm²)
    2 x SPH 18905 A 03 180 50 310 335 10780
    2 x SPH 18912 A 06 210 60 310 335 10780
    2 x SPH 18065 A 10 250 80 310 335 10780
    2 x SPH 18066 A 25 310 125 310 335 10780
    2 x SPH 18069 M 60 --- 130 310 335 4800
    2 x SPH 18070 M 125 --- 130 310 335 4800
    2 x SPH 18067 P 10 280 118 310 335 11520
    2 x SPH 18068 P 25 330 158 310 335 11520

    max. flow rate measured with oil kinematic viscosity of 30 mm²/s and ?P 0,4 bar in return and 8 kPa in suction
