G 3/8" Hydraulic Suction Strainers

For protecting pumps in the suction path of hydraulic systems from any coarse contaminants that may enter the tank
Suitable for filtration of hydraulic fluids and lubricants
Operating temperature -20°C to +100°C
Information on volume flow dependent on test liquid and test conditions*
Flow direction from outside to inside
Increased filter surface by means of corrugation
High operational reliability due to inner perforated framework
Suction must take place below the level of the oil
Optional: can be supplied with bypass
Suction Strainer G 3/8" (Size B)
Suction Strainer G 1 1/4" Hydraulic Suction Strainers G 1 1/4"
SF Article Length
L1
(mm)		 Length
L2
(mm)		 Diameter D (mm) Size
K
(mm)		 Fineness (µm) Material Mesh Material Thread Material Base Valve / Magnet Volume flow* (l/min)

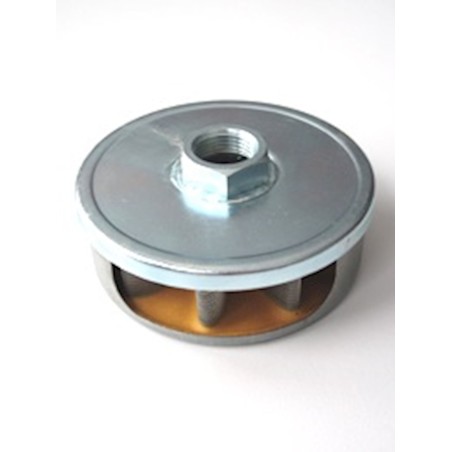

HY 5971 34 27 80 22 100 Wire galvanized galvanized - 14
HY 5990 35 26 50 22 90 Wire galvanized galvanized - 14
HY 5992 35 27 80 22 90 Wire galvanized galvanized - 16
HY 5976 59 51 32 22 90 Wire galvanized galvanized - 14
HY 15741 60 41 46 22 100 V2A PA6GF30 galvanized - 15

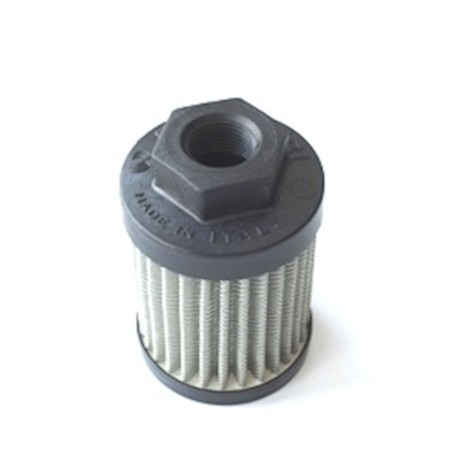

HY 18580 78 66 52 30 60 Wire Nylon Nylon - 10

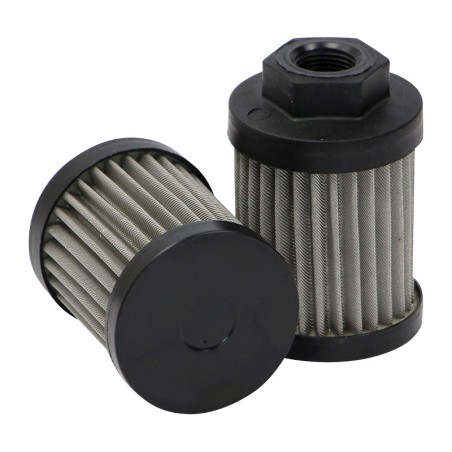

HY 18581 78 66 52 30 90 Wire Nylon Nylon - 10

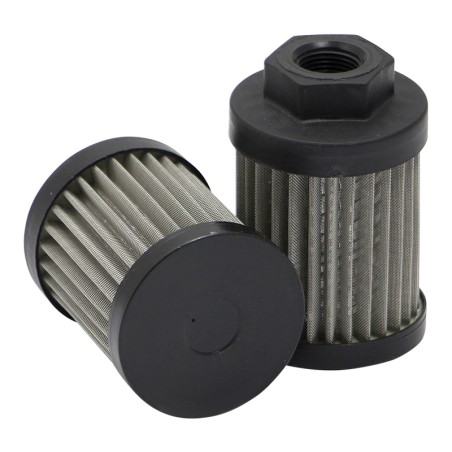

HY 18583 78 66 52 30 250 Wire Nylon Nylon - 10

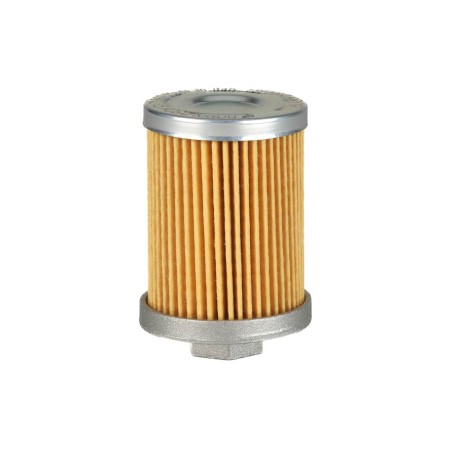

HY 12119 78 69 52 22 30 Cellulose Aluminium Steel - 5

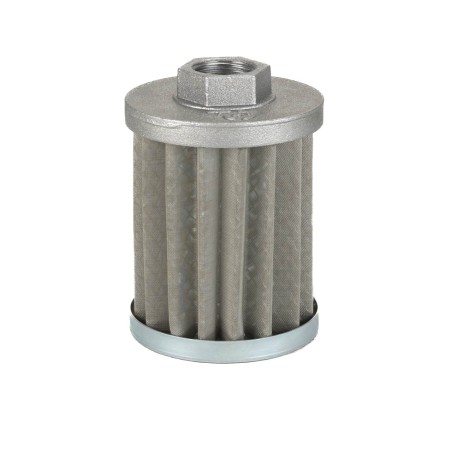

HY 12120
 78 69 52 22 60 Wire Aluminium Steel - 10
HY 12118 78 69 52 22 90 Wire Aluminium Steel - 10

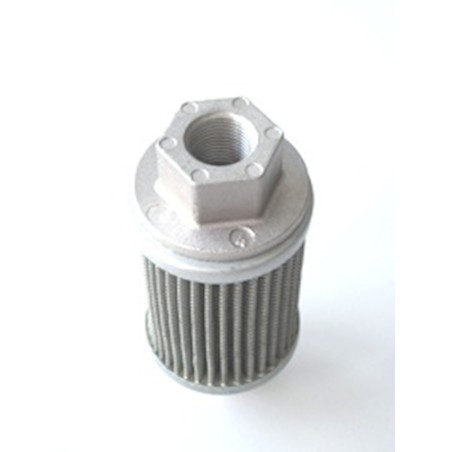

HY 18490 97 75 50 28 60 Wire Aluminium galvanized - 10

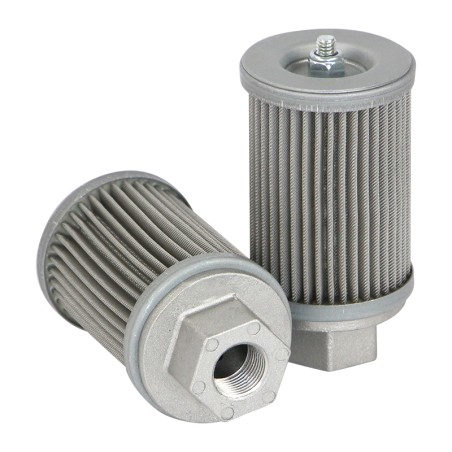

HY 18491 97 75 50 28 90 Wire Aluminium galvanized - 10
HY 18492 97 75 50 28 250 Wire Aluminium galvanized - 10

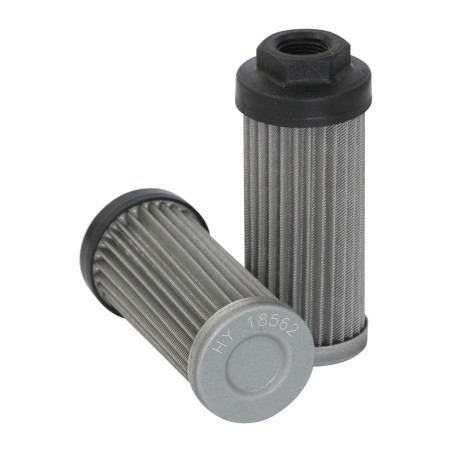

HY 18562 106 95 44 22 125 Wire Plastic galvanized - 15

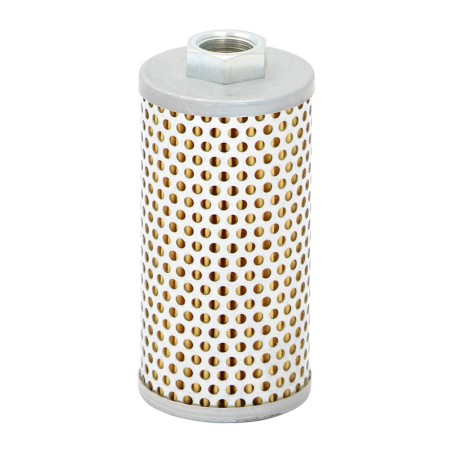

HY 90338 106 97 50 22 30 Cellulose galvanized galvanized - 15
For other sizes please enquire
