Brass & plastic filter housings polycarbonate TP + spare

Brass & plastic filter housings polycarbonate TP + spare

Subcategories

  • WF/M 1 housing: with...

    WF/M 1 housing: with and without drain tap in the housing container operating pressure: 5-10 bar - flow rate: 2000-8000l/h

    Uses:


    Water treatment
    Chemicals and pharmaceuticals industry
    Food and beverages
    Photographic industry
    Product properties:

    Filter head Brass
    Thread material Brass
    Filter bowl Polycarbonate (TP)
    Bowl union nut Brass
    Seal - filter bowl NBR
    Maximum temperature resistance (°C) 50°C
    Maximum operating pressure (bar) 10 bar


    Dimensions:

    Size Capacity (l/h) Width (Thr.-Thr.) (mm) Height (filter head - bowl base) (mm) Thread size in inches (BSP) Element series, see
    5"Mignon 2000 l/h 90 mm 175 mm G½" SW 5/…
    10" 6000 l/h 135 mm 337 mm G½", G¾", G1", G1¼", G1½", G2" SW 10/…
    20" 8000 l/h 135 mm 571 mm G¾", G1", G1½", G2" SW 20/…


    The complete spare parts and accessories list can be found on the data sheet "WF/M 1 housing: Spare parts and accessories".

    Filter cartridges for 5" Mignon housings are available in the following series:
    Depth filtration: PO / polypropylene,
    Surface filtration: N / nylon, P / paper,
    Inox version: M / Solinox RA, MX / Retinox

    Filter cartridges for 10" and 20" housings are available in all series.
    category_280973.jpg?time=1533653378
  • WF/M 1 housing: Spare...

    WF/M 1 housing: Spare parts and accessories

    Uses for WF/M 1 housings:


    Water treatment
    Chemicals and pharmaceuticals industry
    Food and beverages
    Photographic industry
    Spare parts and accessories :

    Spare parts and accessories Reference number

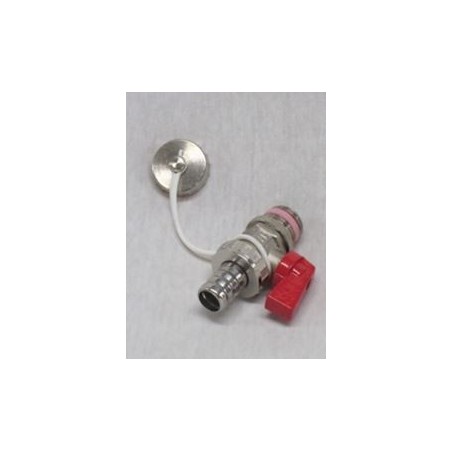

    Drain tap WF-FS/ABLASSHAHN

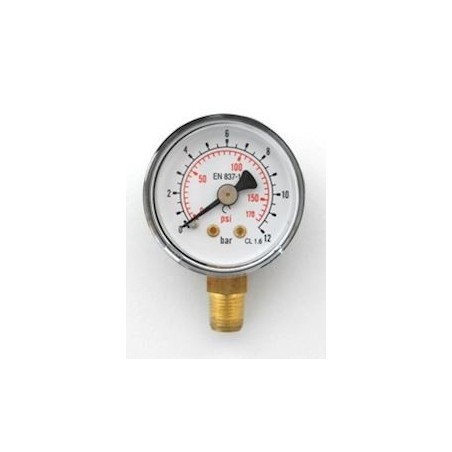

    Manometer WF-MANOMETER
    Spanner for 5“Mignon union nut SCH-WF/Q
    Spanner for 10“ and 20“ union nut SF-ZUB 70302
    Wall holder for 5“Mignon housing WF/M-5"MIGN/HALTER
    Wall holder for 10“ and 20“ housing SF-ZUB 70304
    Bowl for 5“Mignon housing WF/M 1-5/BEHÄLTER
    Bowl for 10“ housing SF-ZUB 70306
    Bowl for 10“ housing with threaded bore hole for drain tap SF-ZUB 70305
    Bowl for 20“ housing SF-ZUB 70307
    Bowl for 20“ housing with threaded bore hole for drain tap SF-ZUB 70308
    O-ring for 5“Mignon bowl (Buna NBR) DG-OR 63.09X3.53
    O-ring for 10“ and 20“ bowl (Buna NBR) DG-WF/M6-DICHTUNG
    O-ring for 10“ and 20“ bowl (Viton) DG-OR 91,67X3,53/V


    Filter cartridges for 5"Mignon housings are available in the following series:
    Depth filtration: PO / polypropylene,
    Surface filtration: N / nylon, P / paper,
    Inox version: M / Solinox RA, MX / Retinox

    Filter cartridges for 10" and 20" housings are available in all series.
    category_280974.jpg?time=1533653379
