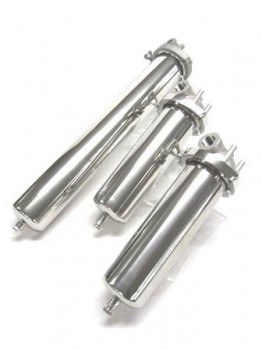

WF 6 /WF 6A housing operating pressure: 15 - 25 bar - flow rate: 6000-8000 l/h
7 products
WF 6 /WF 6A housing operating pressure: 15 - 25 bar - flow rate: 6000-8000 l/h
Uses:
Water treatment
Chemicals and pharmaceuticals industry
Beverages and foodstuffs industry
Electroplating
Surface technology
Petrochemicals
Oil
Paint and varnish
Solvents
Compressed air
Product properties:
Dimensions:
Spare parts and accessories:
Filter cartridges for 10" and 20" housings are available in all series.
| Filter head | Inox |
| Thread material | Inox |
| Filter bowl | Inox |
| Clamping ring with wing screw | Inox |
| Seal - filter bowl | NBR |
| Maximum temperature resistance (°C) | 200°C depending on the seal material |
| Maximum operating pressure, WF 6 series (bar) | 15 bar |
| Maximum operating pressure, WF 6A series (bar) | 25 bar |
Dimensions:
| Size | Capacity (l/h) | Width (Thr.-Thr.) (mm) | Height (filter head - bowl base) (mm) | Thread in inches (BSP) | Element series, see |
| 10" | 6000 l/h | 110 mm | 337 mm | G¾", G1" | SW 10/… |
| 20" | 8000 l/h | 110 mm | 571 mm | G¾", G1" | SW 20/… |
Spare parts and accessories:
| Spare parts and accessories | Reference number |
| Drain tap | unavailable |
| Manometer | unavailable |
| O-ring for 10“ and 20“ bowl (Buna NBR) | DG-OR85X7,5 |
| O-ring for 10“ and 20“ bowl (Viton) | DG-OR85X7,5/VITON |
Filter cartridges for 10" and 20" housings are available in all series.
