Inox - filter housings + spare parts/accessories

Subcategories

•

  WF 6 B housing...

  WF 6 B housing operating pressure: 40 bar - flow rate: 6000-8000 l/h

  Uses:



  Water treatment
  Chemicals and pharmaceuticals industry
  Beverages and foodstuffs industry
  Electroplating
  Surface technology
  Petrochemicals
  Oil
  Paint and varnish
  Solvents
  Compressed air

  Product properties:



  Filter head	Inox
  Thread material	Inox
  Filter bowl (screw fitted)	Inox
  Seal - filter bowl	NBR
  Maximum temperature resistance (°C)	200°C depending on the seal material
  Maximum operating pressure (bar)	40 bar



  Dimensions:



  Size	Capacity (l/h)	Width (Thr.-Thr.) (mm)	Height (filter head - bowl base) (mm)	Thread in inches (BSP)	Element series, see
  10"	6000 l/h	130 mm	360 mm	G1"	SW 10/…
  20"	8000 l/h	130 mm	610 mm	G1"	SW 20/…





  Spare parts and accessories	Reference number
  Drain tap	unavailable
  Manometer	unavailable



  Filter cartridges for 10" and 20" housings are available in all series.


•

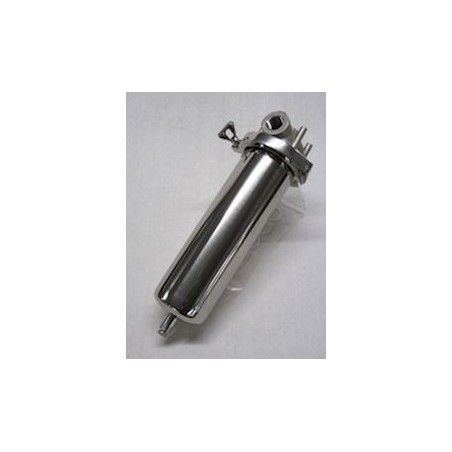

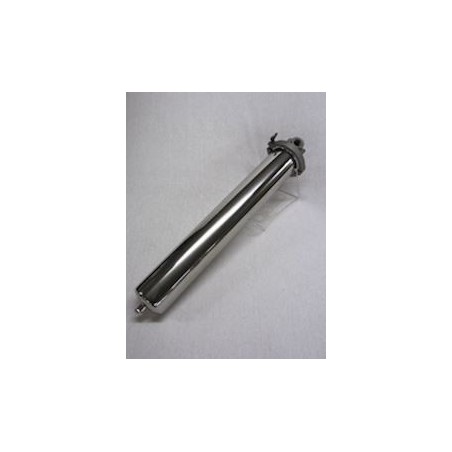

  WF 6 /WF 6A housing...

  WF 6 /WF 6A housing operating pressure: 15 - 25 bar - flow rate: 6000-8000 l/h

  Uses:



  Water treatment
  Chemicals and pharmaceuticals industry
  Beverages and foodstuffs industry
  Electroplating
  Surface technology
  Petrochemicals
  Oil
  Paint and varnish
  Solvents
  Compressed air

  Product properties:



  Filter head	Inox
  Thread material	Inox
  Filter bowl	Inox
  Clamping ring with wing screw	Inox
  Seal - filter bowl	NBR
  Maximum temperature resistance (°C)	200°C depending on the seal material
  Maximum operating pressure, WF 6 series (bar)	15 bar
  Maximum operating pressure, WF 6A series (bar)	25 bar



  Dimensions:



  Size	Capacity (l/h)	Width (Thr.-Thr.) (mm)	Height (filter head - bowl base) (mm)	Thread in inches (BSP)	Element series, see
  10"	6000 l/h	110 mm	337 mm	G¾", G1"	SW 10/…
  20"	8000 l/h	110 mm	571 mm	G¾", G1"	SW 20/…



  Spare parts and accessories:



  Spare parts and accessories	Reference number
  Drain tap	unavailable
  Manometer	unavailable
  O-ring for 10“ and 20“ bowl (Buna NBR)	DG-OR85X7,5
  O-ring for 10“ and 20“ bowl (Viton)	DG-OR85X7,5/VITON



  Filter cartridges for 10" and 20" housings are available in all series.


•

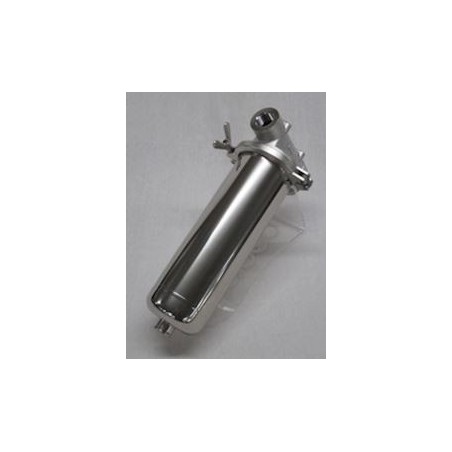

  WF 6 /FS housing...

  WF 6 /FS housing operating pressure: 15 bar - flow rate: 6000-8000 l/h

  Water treatment
  Chemicals and pharmaceuticals industry
  Beverages and foodstuffs industry
  Electroplating
  Surface technology
  Petrochemicals
  Oil
  Paint and varnish
  Solvents
  Compressed air

  Product properties:



  Filter head	Inox
  Thread material	Inox
  Filter bowl	Inox
  Clamping ring with wing screw	Inox
  Seal - filter bowl	NBR
  Maximum temperature resistance (°C)	200°C depending on the seal material
  Maximum operating pressure (bar)	15 bar



  Dimensions:



  Size	Capacity (l/h)	Width (Thr.-Thr.) (mm)	Height (filter head - bowl base) (mm)	Thread in inches (BSP)	Element series, see
  10"	6000 l/h	135 mm	337 mm	G¾", G1"	SW 10/…
  20"	8000 l/h	135 mm	565 mm	G¾", G1"	SW 20/…



  The complete spare parts and accessories list can be found on the data sheet "WF 6 /FS housing: Spare parts and accessories".

  Filter cartridges for 10" and 20" housings are available in all series.


•

  WF 6 /FS housing:...

  WF 6 /FS housing: Spare parts and accessories

  Uses for WF 6 /FS housings:



  Water treatment
  Chemicals and pharmaceuticals industry
  Beverages and foodstuffs industry
  Electroplating
  Surface technology
  Petrochemicals
  Oil
  Paint and varnish
  Solvents
  Compressed air

  Spare parts and accessories :



  Spare parts and accessories	Reference number
  Drain tap	WF-FS/Drain tap
  Manometer	WF-MANOMETER
  Wall holder for 10“ and 20“ housing	WF/M 10"/HALTER
  Bowl with screw plug for drain tap for 10" housing	WF6-10/BEHÄ-ABL FS
  Bowl with screw plug for drain tap for 20" housing	WF6-20/BEHÄLTER FS
  O-ring for 10“ and 20“ bowl (Buna NBR)	DG-OR 88,27X5,33
  O-ring for 10“ and 20“ bowl (Viton)	DG-OR 88,27X5,33/V



  Filter cartridges for 10" and 20" housings are available in all series.
