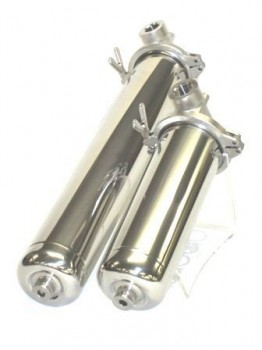

WF 6 /FS housing operating pressure: 15 bar - flow rate: 6000-8000 l/h

WF 6 /FS housing operating pressure: 15 bar - flow rate: 6000-8000 l/h

WF 6 /FS housing operating pressure: 15 bar - flow rate: 6000-8000 l/h

Water treatment
Chemicals and pharmaceuticals industry
Beverages and foodstuffs industry
Electroplating
Surface technology
Petrochemicals
Oil
Paint and varnish
Solvents
Compressed air
Product properties:

Filter head Inox
Thread material Inox
Filter bowl Inox
Clamping ring with wing screw Inox
Seal - filter bowl NBR
Maximum temperature resistance (°C) 200°C depending on the seal material
Maximum operating pressure (bar) 15 bar


Dimensions:

Size Capacity (l/h) Width (Thr.-Thr.) (mm) Height (filter head - bowl base) (mm) Thread in inches (BSP) Element series, see
10" 6000 l/h 135 mm 337 mm G¾", G1" SW 10/…
20" 8000 l/h 135 mm 565 mm G¾", G1" SW 20/…


The complete spare parts and accessories list can be found on the data sheet "WF 6 /FS housing: Spare parts and accessories".

Filter cartridges for 10" and 20" housings are available in all series.
