Fluid Management

SF Fluid Management

Subcategories

  • A 016/FAPC 016 - Oil Service Units
    A 016/FAPC 016 - Oil...
    With the FA 016 hydraulic and lubricating systems can be filled or cleaned in off-line filtration

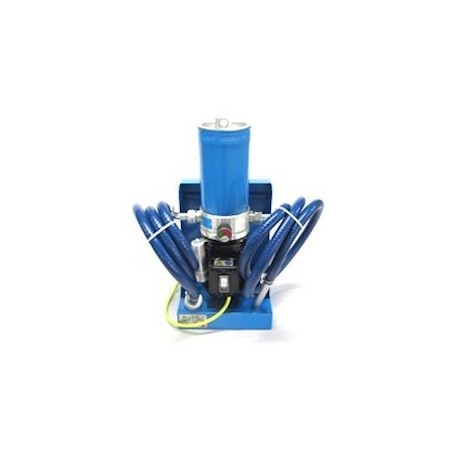

    FAPC 016 with oil cleanliness monitor, the cleanliness class monitored permanently during the cleaning or filling process, the display area allows a choice of particle sizes: 4, 6, 14 and 21 micron, the display shows the classification number of the selected particle size, as specified by ISO 4406:1999)
    Optional: trolley for easy transportation for FA 016 and FAPC 016
    No tools are needed to open the housing and the filter element can be pulled out through the hang-in technique in the cover
    On the bottom of the from inside to outside flown through filter elements there is a dirt retention valve. If the filter element is pulled out of the housing, the dirt retention
    valve will close. Sedimented dirt is removed from the housing with the filter element.
    Longer service intervals and higher machine availability
    FA 016/FAPC 016
    Hydraulic fluids Mineral oil and biodegradable fluids (other fluids on request)
    Temperature range of fluids 0°C - +60°C
    Length of hoses Suction hose NG20 x 1.8 m long with suction strainer 250 µm; Pressure hose NG20 x 2 m long – lance 0.20 m long
    Ambient temperature range 0°C - +50°C
    Operating and transportation position Upright and horizontal


    Pump design Internal gear pump
    Suction height maximal 1.5 m
    Clogging indicator Manometer


    FA 016-1100 FA 016-1300 FA 016-1110 FAPC016-2105
    Nominal flow rate
    		 16 l/min* 16 l/min* 19 l/min* 16 l/min*
    Filter fineness
    		 3EN2 ß3(C)=200 5EN2 ß5(C)=200 3EN2 ß3(C)=200 3EN2 ß3(C)=200
    Dirt capacity Mi at Q
    		 280 g 270 g 280 g 280 g
    Operating voltage
    		 1 ~ 230 V 1 ~ 230 V 1 ~ 110 V 1 ~ 230 V
    Operating frequency
    		 50/60 Hz 50/60 HZ 60 Hz 50/60 HZ
    Motor power
    		 0,45 kW* 0,45 kW* 0,3 kW* 0,45 kW*
    Viscosity: continuous operation min.
    		 15 mm²/s 15 mm²/s 15 mm²/s 15 mm²/s
    Viscosity: continuous operation max.
    		 250 mm²/s 250 mm²/s 200 mm²/s 150 mm²/s
    Viscosity: short-term operation max.
    		 400 mm²/s 400 mm²/s 400 mm²/s 150 mm²/s
    Operating pressure max.
    		 4 bar 4 bar 4 bar 4 bar
    Weight
    		 18,9 kg 18,9 kg 18,9 kg 24 kg
    Particle monitor
    		 - - - OPComII

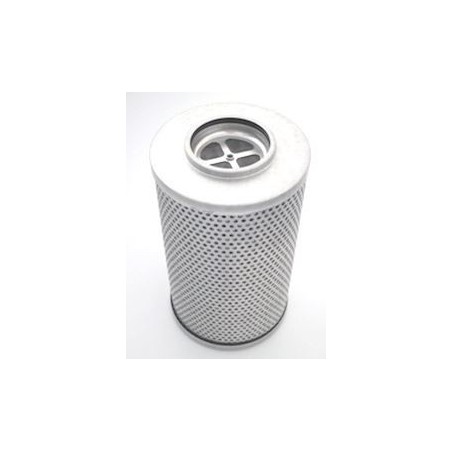

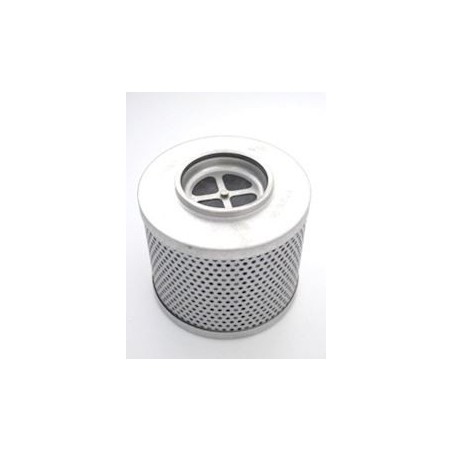

    Replacement element
    		 V 7.1220-113 V 7.1220-13 V 7.1220-113 V 7.1220-113
    *Indications at 50 Hz.

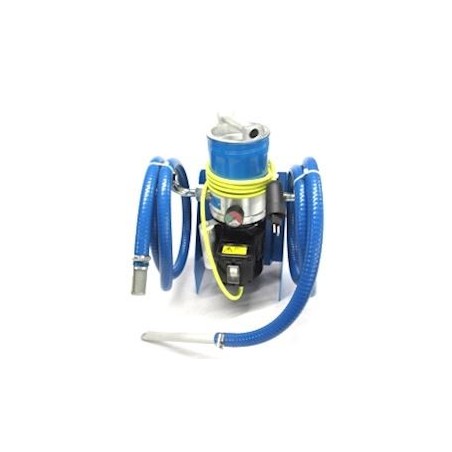

  • FA 014-1600 - Oil Service Unit
    FA 014-1600 - Oil...
    With the FA 016 hydraulic and lubricating systems can be filled or cleaned in off-line filtration
    FAPC 016 with oil cleanliness monitor, the cleanliness class monitored permanently during the cleaning or filling process, the display area allows a choice of particle sizes: 4, 6, 14 and 21 micron, the display shows the classification number of the selected particle size, as specified by ISO 4406:1999)
    Optional: trolley for easy transportation for FA 016 and FAPC 016
    No tools are needed to open the housing and the filter element can be pulled out through the hang-in technique in the cover
    On the bottom of the from inside to outside flown through filter elements there is a dirt retention valve. If the filter element is pulled out of the housing, the dirt retention
    valve will close. Sedimented dirt is removed from the housing with the filter element.
    Longer service intervals and higher machine availability
    FA 016/FAPC 016
    category_280849.jpg?time=1535109392
    Hydraulic fluids Mineral oil and biodegradable fluids (other fluids on request)
    Temperature range of fluids 0°C - +60°C
    Length of hoses Suction hose NG20 x 1.8 m long with suction strainer 250 µm; Pressure hose NG20 x 2 m long – lance 0.20 m long
    Ambient temperature range 0°C - +50°C
    Operating and transportation position Upright and horizontal


    Pump design Internal gear pump
    Suction height maximal 1.5 m
    Clogging indicator Manometer


    FA 016-1100 FA 016-1300 FA 016-1110 FAPC016-2105
    Nominal flow rate
    		 16 l/min* 16 l/min* 19 l/min* 16 l/min*
    Filter fineness
    		 3EN2 ß3(C)=200 5EN2 ß5(C)=200 3EN2 ß3(C)=200 3EN2 ß3(C)=200
    Dirt capacity Mi at Q
    		 280 g 270 g 280 g 280 g
    Operating voltage
    		 1 ~ 230 V 1 ~ 230 V 1 ~ 110 V 1 ~ 230 V
    Operating frequency
    		 50/60 Hz 50/60 HZ 60 Hz 50/60 HZ
    Motor power
    		 0,45 kW* 0,45 kW* 0,3 kW* 0,45 kW*
    Viscosity: continuous operation min.
    		 15 mm²/s 15 mm²/s 15 mm²/s 15 mm²/s
    Viscosity: continuous operation max.
    		 250 mm²/s 250 mm²/s 200 mm²/s 150 mm²/s
    Viscosity: short-term operation max.
    		 400 mm²/s 400 mm²/s 400 mm²/s 150 mm²/s
    Operating pressure max.
    		 4 bar 4 bar 4 bar 4 bar
    Weight
    		 18,9 kg 18,9 kg 18,9 kg 24 kg
    Particle monitor
    		 - - - OPComII
    Replacement element
    		 V 7.1220-113 V 7.1220-13 V 7.1220-113 V 7.1220-113
    *Indications at 50 Hz.
  • FA 015-BYPASS - Mobile Filter System
    FA 015-BYPASS - Mobile...
    With the FA 015-BYPASS hydraulic systems can be filled or cleaned
    For cleaning in off-line filtration
    FA 015-BYPASS comes ready to connect, with hose packages and filter cartridge
    Maintenance without tools
    Fluids can be pumped over without using the filter function (Bypass)
    Longer service intervals and higher machine availability
    FA 015-BYPASS
    category_280850.jpg?time=1535109398
    Nominal flow rate 15 l/min
    Hydraulic fluids Hydraulic oil in according to ISO VG 46
    Temperature range of fluids 0°C - +60°C
    Filter fineness Paper 10 µm and 25 µm,
    Fibre glass 3 µm, 6 µm, 10 µm and 25 µm,
    wire mesh 60 µm and 125 µm,
    Water-absorbing filter 10 µm
    Operating pressure Maximal 3 bar
    Length of hoses Suction hose 2.5 m long – lance 0.40 m long; pressure hose 2.5 m long – lance 0.40 m long
    Ambient temperature range 0°C - +50°C
    Pump

    gear pump
    Operating voltage/-frequency 230 V / 50 Hz
    Power / protection type 0,25 kW / IP 54
    Clogging indicator indicator
    Replacement filter cartridge see first blue frame
    Weight 25 kg

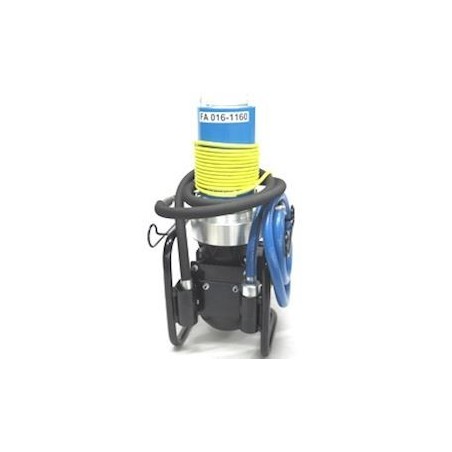

  • FA 016-1160 - Oil Service Unit Operating pressure max 30 bar
    FA 016-1160 - Oil...
    With the FA 016-1160 hydraulic and lubricating systems can be filled and cleaned
    Operating up to 30 bar filling or system pressure, this allows filling and filtering of transmission fluids over valve blocks.
    FA 016-1160 is supplied ready to connect, with hoses and filter element
    No tools are needed to open the housing and the filter element can be pulled out through the hang-in technique in the cover.
    On the bottom of the from inside to outside flown through filter elements there is a dirt retention valve. If the element is pulled out of the housing, the dirt retention valve will close. Sedimented dirt is removed from the housing with the element.
    Longer service intervals and higher machine availability
    FA 016-1160
    category_280851.jpg?time=1535109398
    Nominal flow rate 16 l/min
    Hydraulic fluids Mineral oil and biodegradable fluids (other fluids on request)
    Temperature range of fluids 0°C - +60°C
    Viscosity range Continuous operation min. 15 mm²/s, continuous operation max. 100 mm²/s, short-term operation max. 400 mm²/s
    Filter fineness 3EN2* ß3(C)=200
    Dirt-holding capacity

    280g*
    Operating pressure maximal 30 bar
    Length of hoses Spiral suction hose DN 20, 1.8 m long, suction strainer 300 µm, pressure hose DN 20, 2 m long
    Ambient temperature range 0°C - +50°C
    Electric drive 1 ~ 230V / 50Hz; 1,5 kW
    Clogging indicator Optical differential pressure indicator
    Replacement element V 7.1220-113
    Weight approx. 30 kg
    *in according to ISO 16889 with test dust
  • OF7 - Filtration Units
    OF7 - Filtration Units
    OF7 for filling hydraulic systems, flushing small hydraulic systems and for offline filtration
    Optional: with ContaminationSensor to simultaneously monitor the particle contamination in the oil, cleanliness class is given according to ISO, SAE and NAS classifications
    Optional: built-in protection against dry running and control cable for remote maintenance (OF7K)
    Optional: version for viscosities up to 1000 mm²/s
    Extension of oil lifetime and greater machine availability
    OF7S10
    category_280852.jpg?time=1535109399
    Flow rate OF7S 15 l/min
    Permitted operating fluids
    		 Mineral oil (DIN 51424)
    Fluid temperature
    		 0°C - +80°C
    Viscosity range OF7S
    		 5 – 350 mm²/s
    Fineness
    see filtration unit in the first blue frame
    Seals, gaskets
    		 NBR
    Operating pressure
    		 maximal 3,5 bar
    Permitted suction pressure at suction port
    		 -0,4 bar bis +0,6 bar
    Length of hoses
    Suction hose with lance NW 20 x 2,5 m long; Pressure hose with lance NW 16 x 2,5 m long
    Ambient temperature -20°C - +40°C
    Motor (Standard) 230 V – 50 Hz – 0,18 kW
    Pump type
    Vane pump
    Protection class
    		 IP 54
    Weigth OF7S10 12,5 kg
    For other versions please send us an enquiry.

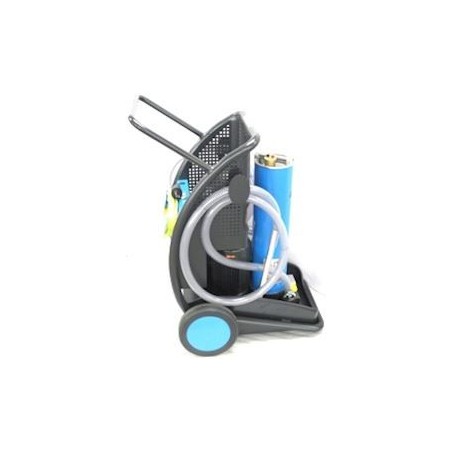

  • UM 45/UMP 45/UMPC 45 - Oil Service Units
    UM 45/UMP 45/UMPC 45 -...
    With UM 45/UMP 45/UMPC 45 hydraulic and lubrication systems can be filled, cleaned or fluid can be pumped over without using the filter function.
    UM 45/UMP 45/UMPC 45 are delivered equipped with hoses
    UMP 45 is equipped with adapters for PODS Pro
    UMPC 45 with integrated particle monitor to supervise oil cleanliness during the filtering process
    The filter element can be removed from the housing together with the cover
    On the bottom of the from inside to outside flown through filter element there is a dirt retention valve. The dirt retention valve ensures that solid particle sediment is completely removed with the filter element and eliminates the need for flushing the filter housing
    Longer service intervals und higher machine availability
    UM 45/UMP 45/UMPC 45
    category_280853.jpg?time=1535109400
    Hydraulic fluids Mineral oil and biodegradable fluids (other fluids on request)
    Temperature range of fluids 0°C - +60°C
    Hydraulic connection Suction hose NG 32, 2.7 m long with lance, with strainer 280µm; pressure hose NG 25, 2.7 m long with lance
    Ambient temperature range 0°C - +50°C
    Tank capacity approx. 13 l


    Operating position upright
    Pump design Internal gear pump
    Suction height maximal 2.0 m
    Clogging indicator optical


    UM(P) 45-1553 UM(P) 45-4553 UM(P) 45-1153
    Nominal flow rate 45 l/min* 45 l/min* 45 l/min*
    Filter fineness 3EN2 ß3(C)=200 3EN2 ß3(C)=200 5EN2 ß5(C)=200
    Dirt capacity Mi at Q 1950 g 1950 g 1980 g
    Operating voltage 1 ~ 230 V 3 ~ 400 V 50 Hz
    3 ~ 460 V 60 Hz    		 1 ~ 230 V
    Operating frequency max. 50/60 Hz 50/60 HZ 50/60 Hz
    Motor power 1,1 kW* 1,1 kW* 1,1 kW*
    Viscosity continuous operation min. 15 mm²/s 15 mm²/s 15 mm²/s
    Viscosity continuous operation max. 600 mm²/s 600 mm²/s 600 mm²/s
    Viscosity short-term operation max. 800 mm²/s 800 mm²/s 800 mm²/s
    Operating pressure max. 7 bar 7 bar 7 bar
    Weight 76,5 kg (84 kg**) 76,5 kg (84 kg**) 76,5 kg (84 kg**)
    Replacement element V 7.1560-103 V 7.1560-103 V 7.1560-03
    *Indications at 50 Hz. **Weight without PODS Pro





    UMPC 45-15535 UMPC 45-45535
    Interface RS 232 RS 232
    Data volume 500 measurements 500 measurements
    Nominal flow rate 45 l/min* 45 l/min*
    Filter fineness 3EN2 ß3(C)=200 3EN2 ß3(C)=200
    Dirt capacity Mi at Q 1950 g 1950 g
    Operating voltage 1 ~ 230 V 3 ~ 400 V 50 Hz
    3 ~ 460 V 60 Hz
    Operating frequency max. 50/60 Hz 50/60 HZ
    Motor power 1,1 kW* 1,1 kW*
    Viscosity continuous operation min. 15 mm²/s 15 mm²/s
    Viscosity continuous operation max. 600 mm²/s*** 600 mm²/s***
    Viscosity short-term operation max. 800 mm²/s 800 mm²/s
    Weight 97 kg 97 kg
    Replacement element V 7.1560-103 V 7.1560-103
    *Indications at 50 Hz. ***the exact determination of the cleanliness class is possible within a viscosity range of 15 mm²/s to 250 mm²/s.
