  • EDM Filter*
    EDM Filter*
    SF EDM filter cartridges to clean the dielectric fluid of work-piece and electrode abrasion
    Filter medium: cellulose
    Style A: plastic end plates with gaskets and recessed grips
    Style B: metal end plates with gaskets and one montage clamp
    Style A                                        Style B
    category_280841.jpg?time=1534616595
    SF-part number Style Fineness
    (µm)    		 Surface
    (cm²)    		 Height H Dimensions (mm) Ø A Ø B + C
    SE 1-3002-6 B 5 15.000 262 150 31
    SE 1-3002-40 B 40 19.000 262 150 31
    SE 1-3003-6-K A 4 38.800 373 145 31
    SE 1-3003-6-K40 A 5 34.000 375 144 31
    SE 1-3003-10 B 10 24.570 363 150 31
    SE 1-3003-10-K A 5 30.980 375 144 32
    SE 1-3003-15 B 15 21.500 359 150 32
    SE 1-3003-20 B 20 21.500 359 150 32
    SE 1-3003-25-K A 25 30.980 375 144 32
    SE 1-3003-40 B 40 21.500 359 150 32

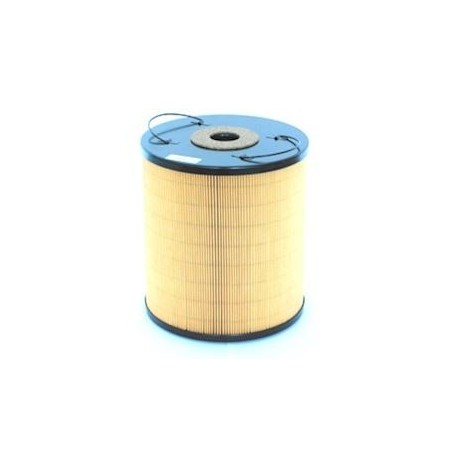

    SE 1-3010-6 B 10 55.400 290 260 50
    SE 1-3013-6 B 5 23.200 457 150 89
    SE 2-3022-50/M B 40 (wire mesh) 17.550 365 150 32
  • EDM Filter - Disk Filter
    EDM Filter - Disk Filter
    SF EDM filter cartridges to clean the dielectric fluid of work-piece and electrode abrasion
    Filter medium: cellulose disks
    Metal end plates with gaskets and one montage clamp
    Style with clamp
    category_280842.jpg?time=1534616595
    SF-part number Style Fineness
    (µm)    		 Surface
    (cm²)    		 Height H Dimensions (mm) Ø A Ø B + C
    SE 3-3000-10 clamp 5 8.850 368 150 32
    SE 3-3001-10 clamp 5 6.175 254 150 32
  • EDM Filter Housings
    EDM Filter Housings
    SF EDM filter housings: carbon steel with cast aluminium cover
    NBR gasket: compatible with mineral oils, glycol-water and oil emulsions
    Volume flow: FEC 070: 70 l/min.
    FEC 140: 140 l/min.
    Number of elements: FEC 070: 1 filter cartridge
    FEC 140: 2 filter cartridges
    working pressure: max. 6 bar
    working temperature: -20°C - +100°C
    thread: G ¾"
    other versions on enquiry
    SE 1, SE2 and SE3
     category_280843.jpg?time=1534616596
    SF-part number A-B C D E F G H I L G
    FEC 070-XXX-X-AG G ¾" 172 410 210 350 510 225 112 91 118
    FEC 140-XXX-X-AG G ¾" 172 920 720 870 1020 225 112 91 118
    dimensions in millimetres

    SF-part number Style Fineness
    (µm)    		 Surface
    (cm²)    		 Height H Dimensions (mm)Ø A Ø B + C
    SE 1-3003-6-K SE 1 4 38.800 373 145 32
    SE 1-3003-10-K SE 1 5 30.980 375 144 32
    SE 1-3003-25-K SE 1 25 30.980 375 144 32
    SE 2-3024-7 SE 2 7 22.550 370 150 32
    SE 3-3000-10 SE 3 5 8.850 368 150 32
  • EDM Filter with perforated metal outer lining
    EDM Filter with...
    SF EDM filter cartridges to clean the dielectric fluid of work-piece and electrode abrasion
    Filter medium: cellulose
    Style A: metal end plates with gaskets, without montage clamp
    Style B: metal end plates with gaskets and one montage clamp
    Style A without clamp and Style B with clamp
    category_280844.jpg?time=1534616597
    SF-part number Style Fineness
    (µm)    		 Surface
    (cm²)    		 Height H Dimensions (mm)Ø A Ø B + C

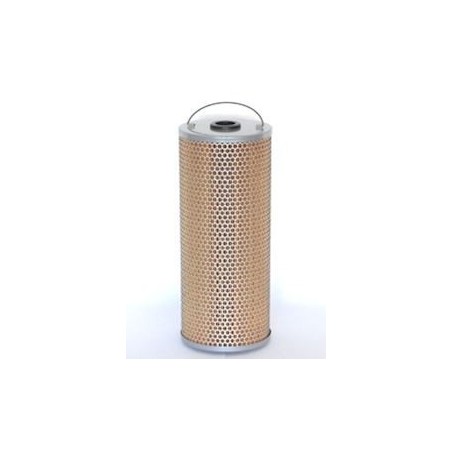

    SE 2-3003-15PH B 15 26.700 358 150 32
    SE 2-3003-35PH B 35 26.700 358 150 32
    SE 2-3005-6 B 7 25.900 362 196 30
    SE 2-3006-6 A 4 93.600 502 302 29

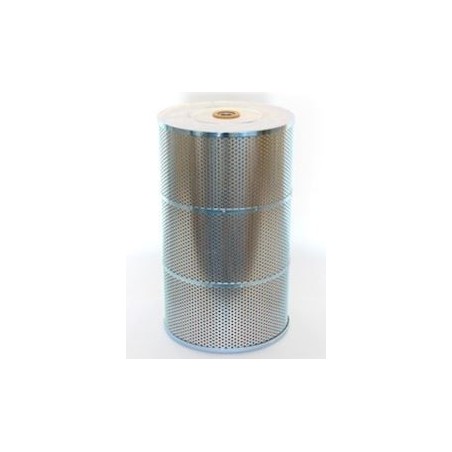

    SE 2-3006-6SK A 5 98.200 508 300 30

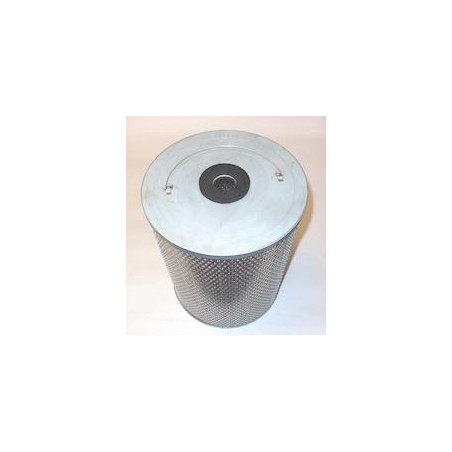

    SE 2-3008-6 B 5 28.640 340 260 36
    SE 2-3015-35PH A 35 22.400 482 137 32
    SE 2-3015-6 A 5 22.400 482 137 38

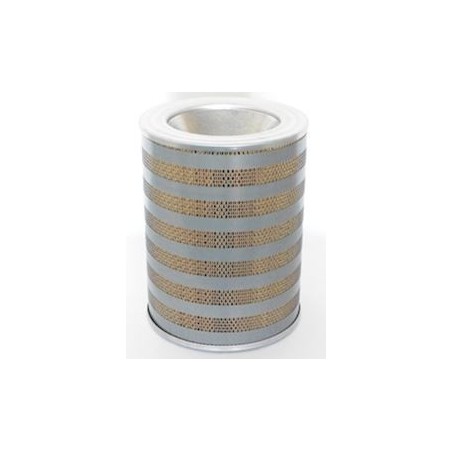

    SE 2-3016-6 A 4 96.000 441 344 46

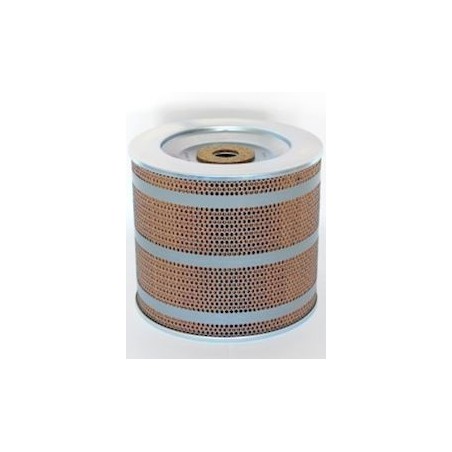

    SE 2-3017-6 A 7 50.200 303 344 45
    SE 2-3018-24 B 25 11.880 250 140 32

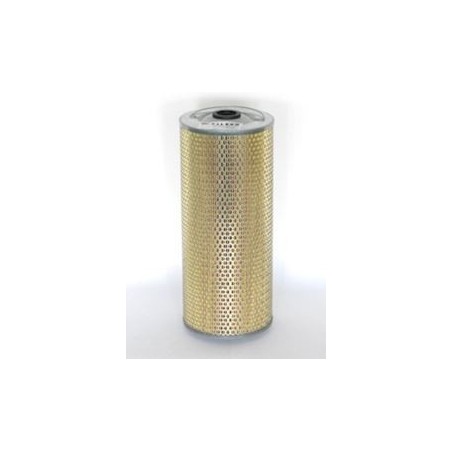

    SE 2-3024-4 B 2 38.800 362 150 32
    SE 2-3024-7 B 7 22.550 370 150 32

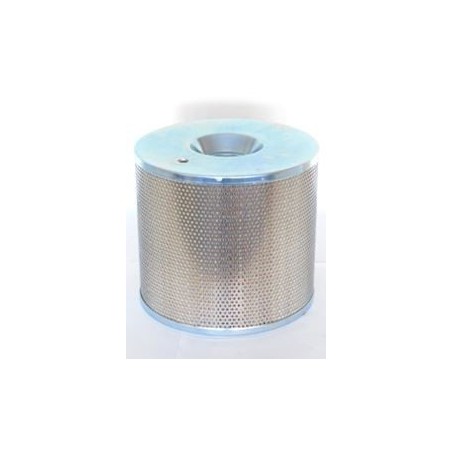

    SE 2-3026-15 A 10 113.360 300 340 76
