G 1¼" - G 2" MPF 400 max. flow rate 800 l/min

Return Filter MPF 400 max. flow rate 800 l/min. - thread G 1¼" - G 2"

The MPF return filter series are for tank top mounting in hydraulic and
lubricating oil circuits
Filter head and cover: aluminium, port size G 1¼", G 1½" or G 2",
bowl: Nylon, NBR seals
Housings compatible with mineral oils to ISO 2943, aqueous emulsions,
synthetic fluids, water and glycol
Element material: resin impregnated paper media (P), inorganic microfiber (A)
or wire mesh (M)
Elements with NBR seal are compatible with mineral oils to ISO 2943, aqueous emulsions, synthetic fluids without HS-HFDR-HFDS-HFDU fluids,
water and glycol (elements of W-series on enquiry)
Optional FPM seal for HS-HFDR-HFDS-HFDU fluids to ISO 2943
Working pressure max. 8 bar - working temperature -25°C - +110°C
MPF400
category_280933.jpg?time=1533651871
MPF 400         MPF 400
Length H (mm) H1 (mm) Ø e (mm)   Port size A
1 180 200 51   G1 G 1¼"
2 240 250 64   G2 G 1½"
3 290 310 64   G3 G 2"


MPF400-1 Material / fineness Q max (l/min) Seal Bypass valve opening pressure (bar)
HY 18453 A 03 150 NBR 1,75 ± 10%

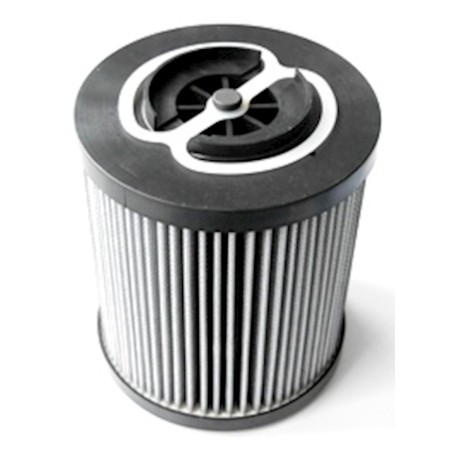

HY 18454 A 06 175 NBR 1,75 ± 10%
HY 18455 A 10 335 NBR 1,75 ± 10%
HY 18456 A 25 550 NBR 1,75 ± 10%
HY 18459 M 25 680 NBR 1,75 ± 10%
HY 18460 M 60 680 NBR 1,75 ± 10%

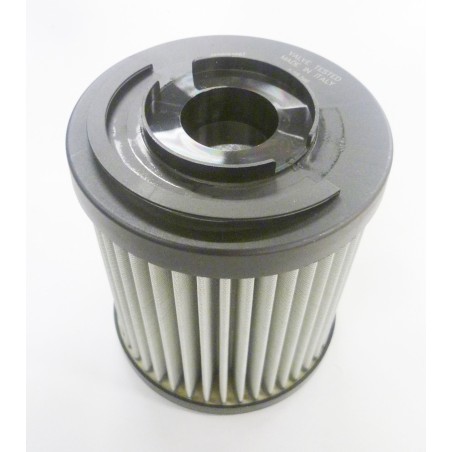

HY 18461 M 90 680 NBR 1,75 ± 10%
HY 18457 P 10 385 NBR 1,75 ± 10%
HY 18458 P 25 600 NBR 1,75 ± 10%
max. flow rate measured with oil kinematic viscosity of 30 mm²/s and ?P 0,5 bar

MPF400-2 Material / fineness Q max (l/min) Seal Bypass valve opening pressure (bar)
HY 18462 A 03 230 NBR 1,75 ± 10%

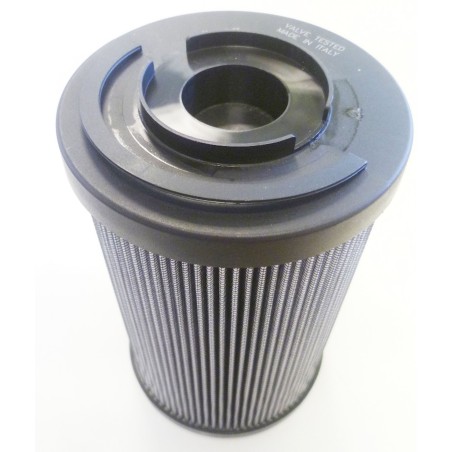

HY 18463 A 06 250 NBR 1,75 ± 10%
HY 18464 A 10 440 NBR 1,75 ± 10%

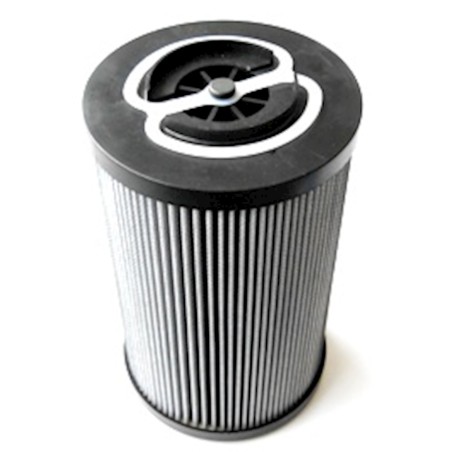

HY 18465 A 25 660 NBR 1,75 ± 10%
HY 18468 M 25 750 NBR 1,75 ± 10%
HY 18469 M 60 750 NBR 1,75 ± 10%

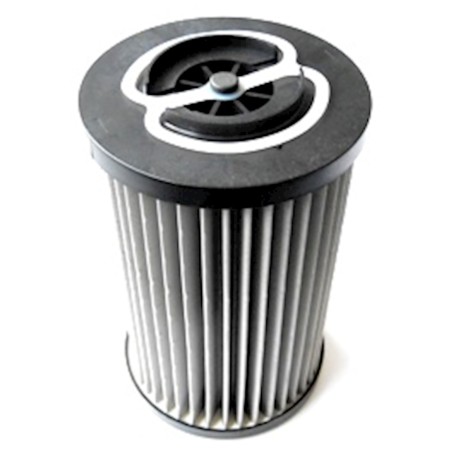

HY 18470 M 90 750 NBR 1,75 ± 10%
HY 18466 P 10 550 NBR 1,75 ± 10%
HY 18467 P 25 690 NBR 1,75 ± 10%
max. flow rate measured with oil kinematic viscosity of 30 mm²/s and ?P 0,5 bar

MPF400-3 Material / fineness Q max (l/min) Seal Bypass valve opening pressure (bar)
HY 18471 A 03 250 NBR 1,75 ± 10%
HY 18472 A 06 295 NBR 1,75 ± 10%
HY 18473 A 10 470 NBR 1,75 ± 10%

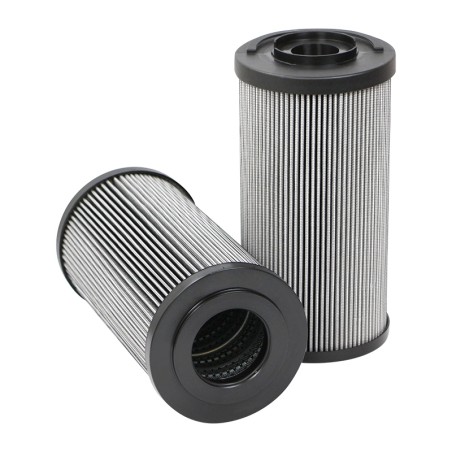

HY 18474 A 25 680 NBR 1,75 ± 10%
HY 18477 M 25 800 NBR 1,75 ± 10%
HY 18478 M 60 800 NBR 1,75 ± 10%

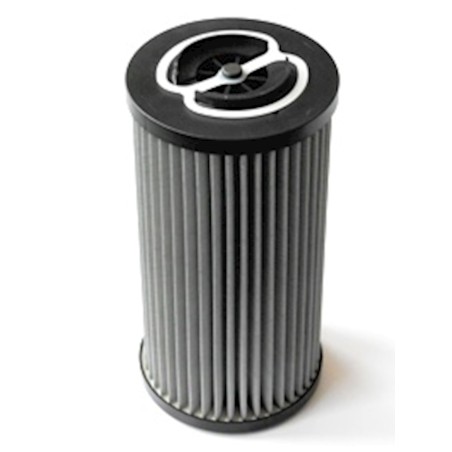

HY 18479 M 90 800 NBR 1,75 ± 10%

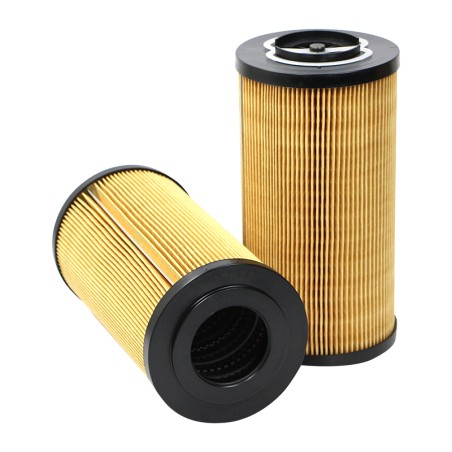

HY 18475 P 10 700 NBR 1,75 ± 10%
HY 18476 P 25 750 NBR 1,75 ± 10%
max. flow rate measured with oil kinematic viscosity of 30 mm²/s and ?P 0,5 bar

MPF450/451 series on enquiry
