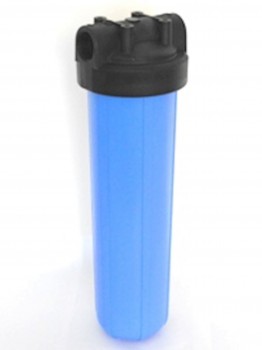

WF 15 BIG housing operating pressure: 10 bar - flow rate: 10000-14000 l/h

WF 15 BIG housing operating pressure: 10 bar - flow rate: 10000-14000 l/h

WF 15 BIG housing operating pressure: 10 bar - flow rate: 10000-14000 l/h

Uses:


Water treatment
Electroplating
Resin
Paint
Chemicals and pharmaceuticals industry
Food and beverages
Photographic industry
Product properties:

Filter head Polypropylene
Thread material Polypropylene
Filter bowl Polypropylene
Seal - filter bowl NBR
Maximum temperature resistance (°C) 50°C
Maximum operating pressure (bar) 10 bar


Dimensions:

Size Capacity (l/h) Width (Thr.-Thr.) (mm) Height (filter head - bowl base) (mm) Thread in inches (BSP) Element series, see
10" 10000 l/h 185 mm 353 mm G1½" SW 10/…BB
20" 14000 l/h 185 mm 583 mm G1", G1½" SW 20/…BB


Filter cartridges for 10" and 20" BIG housings are available in the following three series:
Depth filtration: PO BB / polypropylene
Surface filtration: PL BB / polyester
Active carbon: Z-AKX BB / active carbon filter cartridges
