TA - Metal oil filler and breather filler caps

Temperature resistance -25°C to 100°C
Volume flow 200 L/min at 10 µm / ?p: 0.02 bar
Chromed cover with NBR seal and bayonet closure –excl. valve, excl. safety chain
alternative: G ¼"thread
Resin-impregnated cellulose ventilation filter 10 µm or 40 µm
Galvanized 3-hole flange / galvanized screws
Cork seals (compatible with mineral oils to ISO 2943, emulsions containing water, synthetic fluids and water containing glycol)
Galvanized strainer, tank installation depth 64 mm

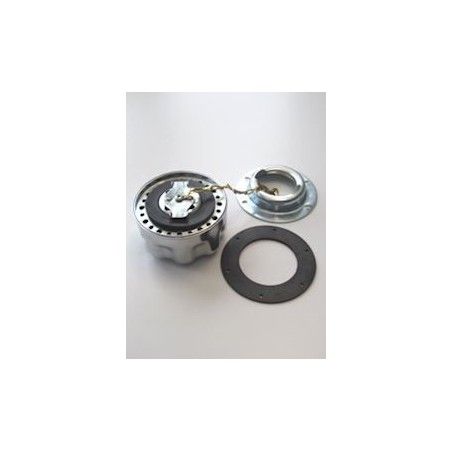

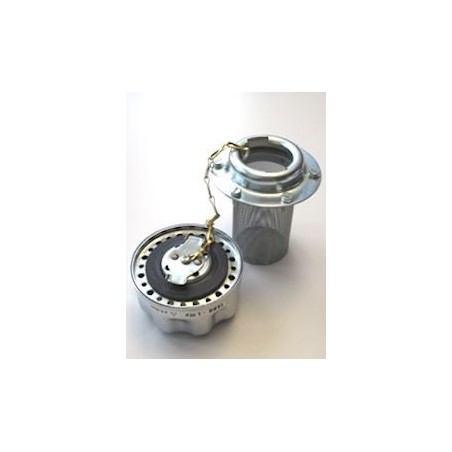

TA ..46 Series and TA ..80 Series
9100022_L_2.jpgcategory_280925.jpg?time=1535110187
Temperature resistance -25°C to 100°C
Volume flow 550 L/min at 10 µm / ?p: 0.02 bar
Chromed cover, bayonet closure and safety chain – excl. valve
Optional locking
Alternative: G ¾"thread
Resin-impregnated cellulose ventilation filter 10 µm or 40 µm
Galvanized 6-hole flange/ galvanized screws
NBR or cork seals (compatible with mineral oils to ISO 2943, emulsions containing water, synthetic fluids and water containing glycol)
Galvanized strainer, tank installation L: 80 mm or 150 mm
