Pressure Filter FHP 065 max. flow rate 108 l/min. - threadG ½" - G ¾" operating pressure max. 420 bar

FHP 065 max. flow rate 108 l/min. - threadG ½" - G ¾" operating pressure max. 420 bar

Pressure Filter FHP 065 max. flow rate 108 l/min. - threadG ½" - G ¾" operating pressure max. 420 bar

The FHP pressure filter series are for in-line mounting in hydraulic and lubricating oil circuits up to maximum 420 bar operating pressure
Filter head: cast iron, connecting thread G ½" or G ¾", bowl: steel, NBR seals, optional: bypass valve: brass (6 bar ± 10%)
Housing compatible with mineral oils to ISO 2943, aqueous emulsions,
synthetic fluids, water and glycol
Element material: resin impregnated paper media (P),
inorganic microfiber (A) or stainless steel mesh (M)
Filter elements with NBR seal compatible with mineral oils to ISO 2943,
aqueous emulsions, synthetic fluids without HS-HFDR-HFDS-HFDU-fluids,
water and glycol
Optional FPM seals for HS-HFDR-HFDS-HFDU fluids to ISO 2943
working temperature -25°C - +110°C
FHP065
category_280927.jpg?time=1533652476
FHP 065     FHP 065     FHP 065
Length H (mm)   Valve + Seal     Thread A
1 200   BA with bypass valve, NBR   G1 G ½"
2 230   SA without bypass valve, NBR   G2 G ¾"
3 330


FHP065-1 Material / fineness Q max (l/min) Seal Differential Pressure ?p (bar)
HY 18284 A 03 22 NBR 210

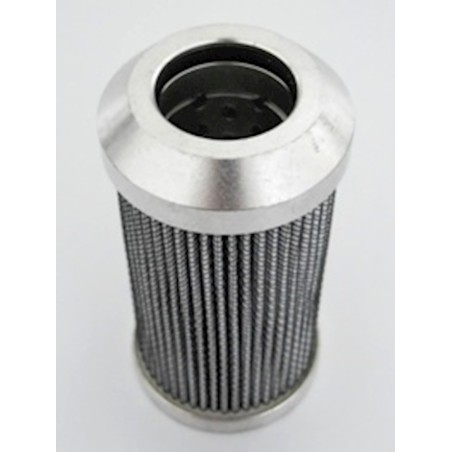

HY 18285 A 06 23 NBR 210
HY 18286 A 10 43 NBR 210
HY 18287 A 25 68 NBR 210

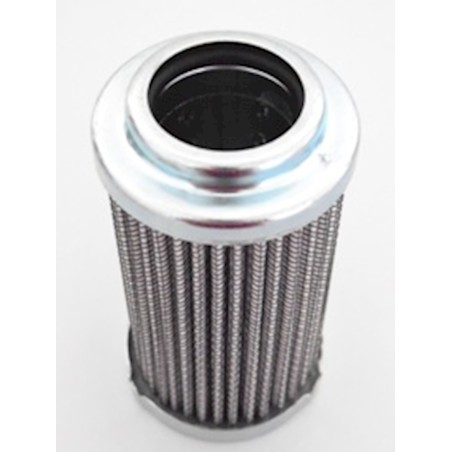

HY 18275 A 03 23 NBR 20
HY 18276 A 06 30 NBR 20
HY 18277 A 10 48 NBR 20
HY 18278 A 25 72 NBR 20
HY 18281 M 10 105 NBR 20

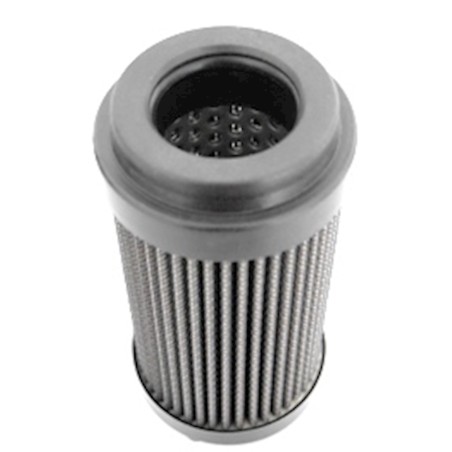

HY 18282 M 25 105 NBR 20
HY 18283 M 60 105 NBR 20
HY 18279 P 10 58 NBR 20
HY 18280 P 25 82 NBR 20
max. flow rate measured with oil kinematic viscosity of 30 mm²/s and ?P 1,5 bar

FHP065-2 Material / fineness Q max (l/min) Seal Differential Pressure ?p (bar)
HY 18298 A 03 30 NBR 210

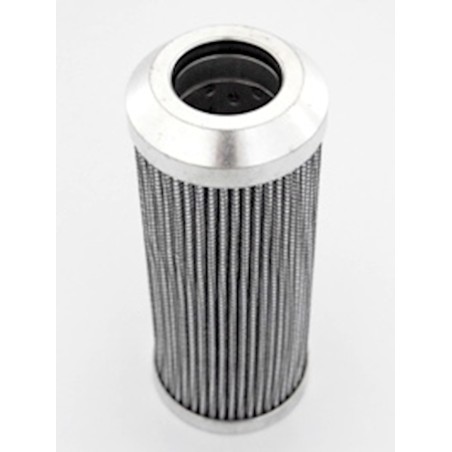

HY 18299 A 06 35 NBR 210
HY 18300 A 10 57 NBR 210
HY 18301 A 25 77 NBR 210

HY 18289 A 03 31 NBR 20
HY 18290 A 06 45 NBR 20
HY 18291 A 10 60 NBR 20
HY 18292 A 25 82 NBR 20
HY 18295 M 10 106 NBR 20
HY 18296 M 25 106 NBR 20

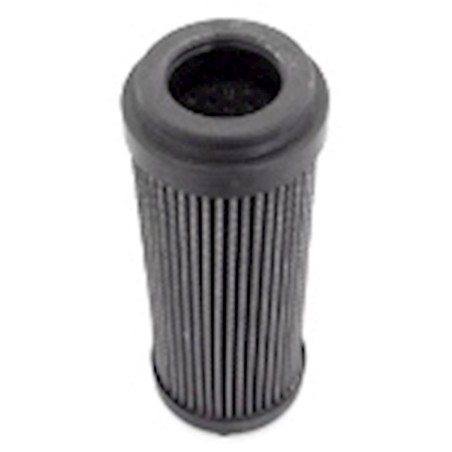

HY 18297 M 60 106 NBR 20
HY 18293 P 10 70 NBR 20
HY 18294 P 25 92 NBR 20
max. flow rate measured with oil kinematic viscosity of 30 mm²/s and ?P 1,5 bar

FHP065-3 Material / fineness Q max (l/min) Seal Differential Pressure ?p (bar)
HY 18312 A 03 52 NBR 210

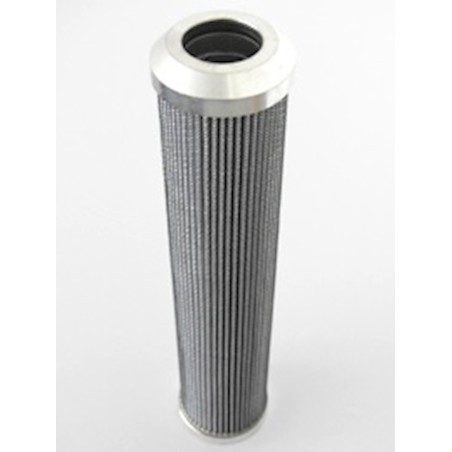

HY 18313 A 06 58 NBR 210
HY 18314 A 10 78 NBR 210
HY 18315 A 25 93 NBR 210

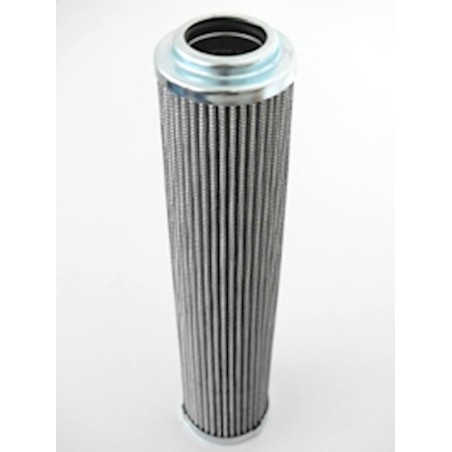

HY 18303 A 03 53 NBR 20
HY 18304 A 06 61 NBR 20
HY 18305 A 10 79 NBR 20
HY 18306 A 25 94 NBR 20

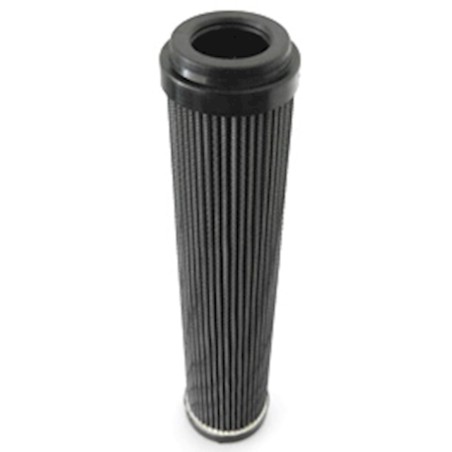

HY 18309 M 10 108 NBR 20
HY 18310 M 25 108 NBR 20
HY 18311 M 60 108 NBR 20
HY 18307 P 10 89 NBR 20
HY 18308 P 25 104 NBR 20
max. flow rate measured with oil kinematic viscosity of 30 mm²/s and ?P 1,5 bar

other versions on enquiry
