Pressure Filters In-line - operating pressure max 420

Subcategories

•

  FHP 065 max. flow rate...

  Pressure Filter FHP 065 max. flow rate 108 l/min. - threadG ½" - G ¾" operating pressure max. 420 bar

  The FHP pressure filter series are for in-line mounting in hydraulic and lubricating oil circuits up to maximum 420 bar operating pressure
  Filter head: cast iron, connecting thread G ½" or G ¾", bowl: steel, NBR seals, optional: bypass valve: brass (6 bar ± 10%)
  Housing compatible with mineral oils to ISO 2943, aqueous emulsions,
  synthetic fluids, water and glycol
  Element material: resin impregnated paper media (P),
  inorganic microfiber (A) or stainless steel mesh (M)
  Filter elements with NBR seal compatible with mineral oils to ISO 2943,
  aqueous emulsions, synthetic fluids without HS-HFDR-HFDS-HFDU-fluids,
  water and glycol
  Optional FPM seals for HS-HFDR-HFDS-HFDU fluids to ISO 2943
  working temperature -25°C - +110°C

  FHP065



  FHP 065			FHP 065			FHP 065
  Length	H (mm)		Valve + Seal			Thread A
  1	200		BA	with bypass valve, NBR		G1	G ½"
  2	230		SA	without bypass valve, NBR		G2	G ¾"
  3	330





  FHP065-1	Material / fineness	Q max (l/min)	Seal	Differential Pressure ?p (bar)
  HY 18284	A 03	22	NBR	210
  HY 18285	A 06	23	NBR	210
  HY 18286	A 10	43	NBR	210
  HY 18287	A 25	68	NBR	210
  HY 18275	A 03	23	NBR	20
  HY 18276	A 06	30	NBR	20
  HY 18277	A 10	48	NBR	20
  HY 18278	A 25	72	NBR	20
  HY 18281	M 10	105	NBR	20
  HY 18282	M 25	105	NBR	20
  HY 18283	M 60	105	NBR	20
  HY 18279	P 10	58	NBR	20
  HY 18280	P 25	82	NBR	20

  max. flow rate measured with oil kinematic viscosity of 30 mm²/s and ?P 1,5 bar



  FHP065-2	Material / fineness	Q max (l/min)	Seal	Differential Pressure ?p (bar)
  HY 18298	A 03	30	NBR	210
  HY 18299	A 06	35	NBR	210
  HY 18300	A 10	57	NBR	210
  HY 18301	A 25	77	NBR	210
  HY 18289	A 03	31	NBR	20
  HY 18290	A 06	45	NBR	20
  HY 18291	A 10	60	NBR	20
  HY 18292	A 25	82	NBR	20
  HY 18295	M 10	106	NBR	20
  HY 18296	M 25	106	NBR	20
  HY 18297	M 60	106	NBR	20
  HY 18293	P 10	70	NBR	20
  HY 18294	P 25	92	NBR	20

  max. flow rate measured with oil kinematic viscosity of 30 mm²/s and ?P 1,5 bar



  FHP065-3	Material / fineness	Q max (l/min)	Seal	Differential Pressure ?p (bar)
  HY 18312	A 03	52	NBR	210
  HY 18313	A 06	58	NBR	210
  HY 18314	A 10	78	NBR	210
  HY 18315	A 25	93	NBR	210
  HY 18303	A 03	53	NBR	20
  HY 18304	A 06	61	NBR	20
  HY 18305	A 10	79	NBR	20
  HY 18306	A 25	94	NBR	20
  HY 18309	M 10	108	NBR	20
  HY 18310	M 25	108	NBR	20
  HY 18311	M 60	108	NBR	20
  HY 18307	P 10	89	NBR	20
  HY 18308	P 25	104	NBR	20

  max. flow rate measured with oil kinematic viscosity of 30 mm²/s and ?P 1,5 bar

  other versions on enquiry
•

  FHP 135 max. flow rate...

  Pressure Filter FHP 135 max. flow rate 230 l/min. - thread G ¾" - G 1" operating pressure max. 420 bar

  The FHP pressure filter series are for in-line mounting in hydraulic and lubricating oil circuits up to maximum 420 bar operating pressure
  Filter head: cast iron, connecting thread G ¾" or G 1", bowl: steel, NBR seals, optional: bypass valve: brass (6 bar ± 10%)
  Housing compatible with mineral oils to ISO 2943, aqueous emulsions,
  synthetic fluids, water and glycol
  Element material: resin impregnated paper media (P),
  inorganic microfiber (A) or stainless steel mesh (M)
  Filter elements with NBR seal compatible with mineral oils to ISO 2943,
  aqueous emulsions, synthetic fluids without HS-HFDR-HFDS-HFDU-fluids,
  water and glycol
  Optional FPM seals for HS-HFDR-HFDS-HFDU fluids to ISO 2943
  working temperature -25°C - +110°C

  FHP135



  FHP 135			FHP 135			FHP 135
  Length	H (mm)		Valve + Seal			Thread A
  1	260		BA	with bypass valve, NBR		G1	G ¾"
  2	373		SA	without bypass valve, NBR		G2	G 1"





  FHP135-1	Material / fineness	Q max (l/min)	Seal	Differential Pressure ?p (bar)
  HY 18328	A 03	50	NBR	210
  HY 18329	A 06	57	NBR	210
  HY 18330	A 10	98	NBR	210
  HY 18331	A 25	156	NBR	210
  HY 18674	A 03	69	NBR	20
  HY 18675	A 06	74	NBR	20
  HY 18676	A 10	120	NBR	20
  HY 18677	A 25	171	NBR	20
  HY 18680	M 10	200	NBR	20
  HY 18681	M 25	200	NBR	20
  HY 18682	M 60	200	NBR	20
  HY 18678	P 10	130	NBR	20
  HY 18679	P 25	181	NBR	20

  max. flow rate measured with oil kinematic viscosity of 30 mm²/s and ?P 1,5 bar



  FHP135-2	Material / fineness	Q max (l/min)	Seal	Differential Pressure ?p (bar)
  HY 18342	A 03	91	NBR	210
  HY 18343	A 06	110	NBR	210
  HY 18344	A 10	136	NBR	210
  HY 18345	A 25	175	NBR	210
  HY 18333	A 03	110	NBR	20
  HY 18334	A 06	117	NBR	20
  HY 18335	A 10	148	NBR	20

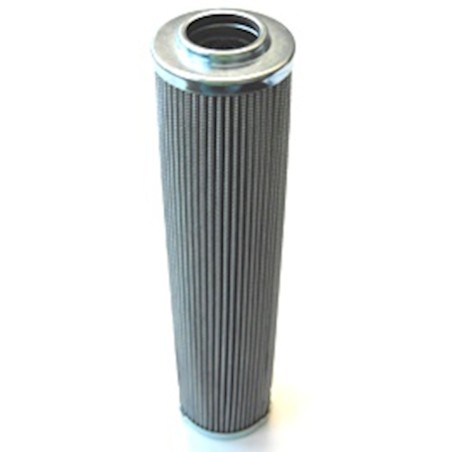

  HY 18683	A 16	151	NBR	20
  HY 18336	A 25	208	NBR	20
  HY 18339	M 10	230	NBR	20
  HY 18340	M 25	230	NBR	20
  HY 18341	M 60	230	NBR	20
  HY 18337	P 10	158	NBR	20
  HY 18338	P 25	218	NBR	20

  max. flow rate measured with oil kinematic viscosity of 30 mm²/s and ?P 1,5 bar

  other versions on enquiry
•

  FHP 320 max. flow rate...

  Pressure Filter FHP 320 max. flow rate 475 l/min. - thread G 1¼" - G 1½" operating pressure max. 420 bar

  The FHP pressure filter series are for in-line mounting in hydraulic and lubricating oil circuits up to maximum 420 bar operating pressure
  Filter head: cast iron, connecting thread G 1¼" or G 1½", bowl: steel, NBR seals, optional: bypass valve: brass (6 bar ± 10%)
  Housing compatible with mineral oils to ISO 2943, aqueous emulsions,
  synthetic fluids, water and glycol
  Element material: resin impregnated paper media (P),
  inorganic microfiber (A) or stainless steel mesh (M)
  Filter elements with NBR seal compatible with mineral oils to ISO 2943,
  aqueous emulsions, synthetic fluids without HS-HFDR-HFDS-HFDU-fluids,
  water and glycol
  Optional FPM seals for HS-HFDR-HFDS-HFDU fluids to ISO 2943
  working temperature -25°C - +110°C

  FHP 320



  FHP 135			FHP 320			FHP 320
  Length	H (mm)		Version + Seal			Thread A
  1	298		BA	with bypass valve, NBR		G1	G 1¼"
  2	422		RA	with reverse flow and bypass valve, NBR		G2	G 1½"
  3	554		SA	without bypass valve, NBR
  4	709		WA	with reverse flow, NBR





  FHP320-1	Material / fineness	Q max (l/min)	Seal	Differential Pressure ?p (bar)
  HY 18357	A 03	107	NBR	210
  HY 18358	A 06	112	NBR	210
  HY 18359	A 10	185	NBR	210
  HY 18360	A 25	292	NBR	210
  HY 18348	A 03	126	NBR	20
  HY 18349	A 06	137	NBR	20
  HY 18350	A 10	230	NBR	20
  HY 18351	A 25	330	NBR	20
  HY 18354	M 10	425	NBR	20
  HY 18355	M 25	425	NBR	20
  HY 18356	M 60	425	NBR	20
  HY 18352	P 10	240	NBR	20

  max. flow rate measured with oil kinematic viscosity of 30 mm²/s and ?P 1,5 bar



  FHP320-2	Material / fineness	Q max (l/min)	Seal	Differential Pressure ?p (bar)
  HY 18371	A 03	192	NBR	210
  HY 18372	A 06	220	NBR	210
  HY 18373	A 10	300	NBR	210
  HY 18374	A 25	378	NBR	210
  HY 12222	A 03	248	NBR	20
  HY 18363	A 06	270	NBR	20
  HY 18364	A 10	376	NBR	20
  HY 18365	A 25	440	NBR	20
  HY 18368	M 10	445	NBR	20
  HY 18369	M 25	445	NBR	20
  HY 18370	M 60	445	NBR	20

  max. flow rate measured with oil kinematic viscosity of 30 mm²/s and ?P 1,5 bar



  FHP320-3	Material / fineness	Q max (l/min)	Seal	Differential Pressure ?p (bar)
  HY 18386	A 03	255	NBR	210
  HY 18387	A 06	300	NBR	210
  HY 18388	A 10	367	NBR	210
  HY 18389	A 25	417	NBR	210
  HY 18377	A 03	319	NBR	20
  HY 18378	A 06	353	NBR	20
  HY 18379	A 10	427	NBR	20
  HY 18380	A 25	450	NBR	20
  HY 18383	M 10	465	NBR	20
  HY 18384	M 25	465	NBR	20
  HY 18385	M 60	465	NBR	20

  max. flow rate measured with oil kinematic viscosity of 30 mm²/s and ?P 1,5 bar



  FHP320-4	Material / fineness	Q max (l/min)	Seal	Differential Pressure ?p (bar)
  HY 18400	A 03	298	NBR	210
  HY 18401	A 06	320	NBR	210
  HY 18402	A 10	375	NBR	210
  HY 18403	A 25	422	NBR	210
  HY 18391	A 03	354	NBR	20
  HY 18392	A 06	375	NBR	20
  HY 18393	A 10	430	NBR	20
  HY 18394	A 25	467	NBR	20
  HY 18397	M 10	475	NBR	20
  HY 18398	M 25	475	NBR	20
  HY 18399	M 60	475	NBR	20

  max. flow rate measured with oil kinematic viscosity of 30 mm²/s and ?P 1,5 bar

  other versions (FHP321) on enquiry
