Pressure Filter FHP 135 max. flow rate 230 l/min. - thread G ¾" - G 1" operating pressure max. 420 bar

FHP 135 max. flow rate 230 l/min. - thread G ¾" - G 1" operating pressure max. 420 bar

Pressure Filter FHP 135 max. flow rate 230 l/min. - thread G ¾" - G 1" operating pressure max. 420 bar

The FHP pressure filter series are for in-line mounting in hydraulic and lubricating oil circuits up to maximum 420 bar operating pressure
Filter head: cast iron, connecting thread G ¾" or G 1", bowl: steel, NBR seals, optional: bypass valve: brass (6 bar ± 10%)
Housing compatible with mineral oils to ISO 2943, aqueous emulsions,
synthetic fluids, water and glycol
Element material: resin impregnated paper media (P),
inorganic microfiber (A) or stainless steel mesh (M)
Filter elements with NBR seal compatible with mineral oils to ISO 2943,
aqueous emulsions, synthetic fluids without HS-HFDR-HFDS-HFDU-fluids,
water and glycol
Optional FPM seals for HS-HFDR-HFDS-HFDU fluids to ISO 2943
working temperature -25°C - +110°C
FHP135
category_280928.jpg?time=1533652484
FHP 135     FHP 135     FHP 135
Length H (mm)   Valve + Seal     Thread A
1 260   BA with bypass valve, NBR   G1 G ¾"
2 373   SA without bypass valve, NBR   G2 G 1"


FHP135-1 Material / fineness Q max (l/min) Seal Differential Pressure ?p (bar)
HY 18328 A 03 50 NBR 210
HY 18329 A 06 57 NBR 210
HY 18330 A 10 98 NBR 210

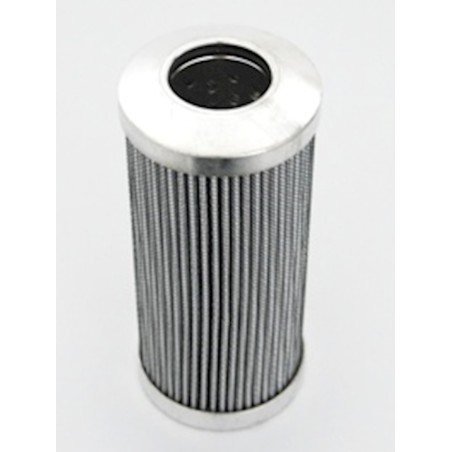

HY 18331 A 25 156 NBR 210

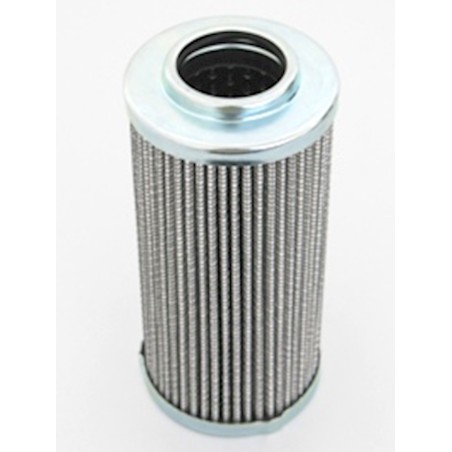

HY 18674 A 03 69 NBR 20
HY 18675 A 06 74 NBR 20
HY 18676 A 10 120 NBR 20

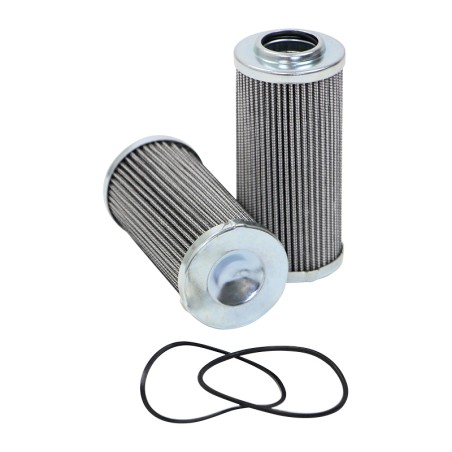

HY 18677 A 25 171 NBR 20
HY 18680 M 10 200 NBR 20
HY 18681 M 25 200 NBR 20

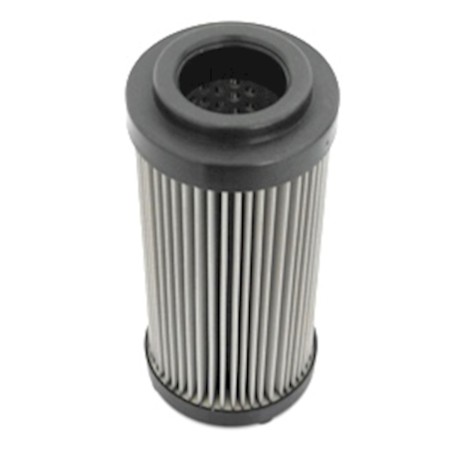

HY 18682 M 60 200 NBR 20

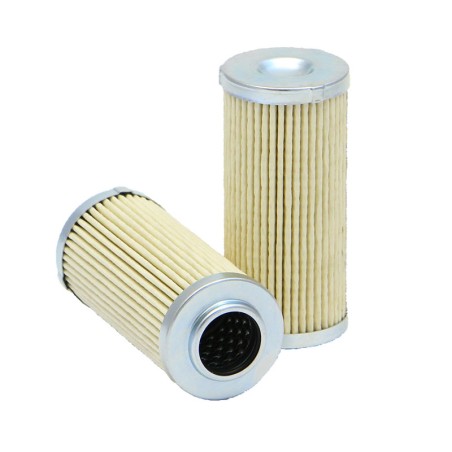

HY 18678 P 10 130 NBR 20
HY 18679 P 25 181 NBR 20
max. flow rate measured with oil kinematic viscosity of 30 mm²/s and ?P 1,5 bar

FHP135-2 Material / fineness Q max (l/min) Seal Differential Pressure ?p (bar)

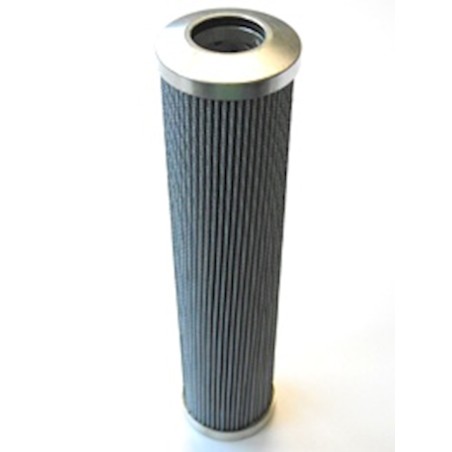

HY 18342 A 03 91 NBR 210
HY 18343 A 06 110 NBR 210

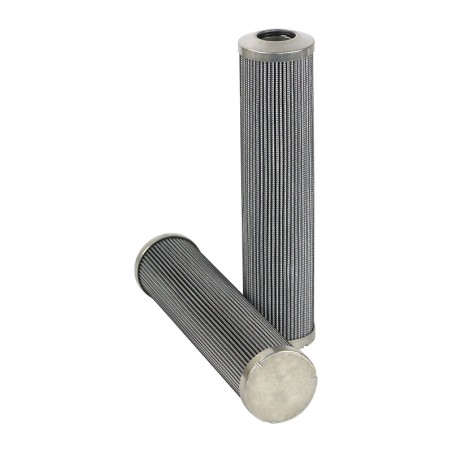

HY 18344 A 10 136 NBR 210
HY 18345 A 25 175 NBR 210

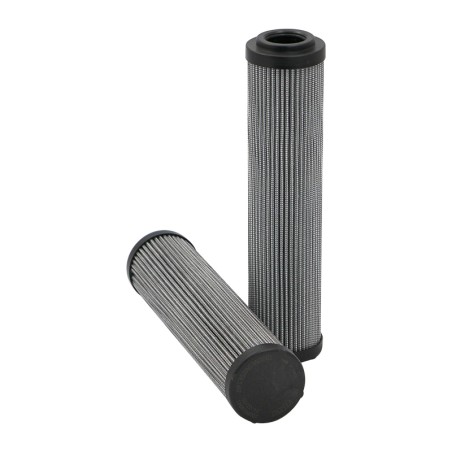

HY 18333 A 03 110 NBR 20
HY 18334 A 06 117 NBR 20
HY 18335 A 10 148 NBR 20
HY 18683 A 16 151 NBR 20
HY 18336 A 25 208 NBR 20
HY 18339 M 10 230 NBR 20
HY 18340 M 25 230 NBR 20

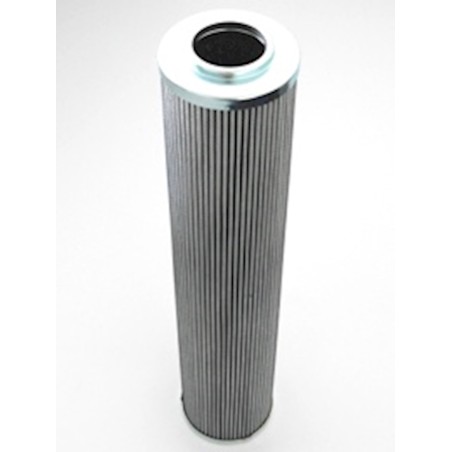

HY 18341 M 60 230 NBR 20
HY 18337 P 10 158 NBR 20

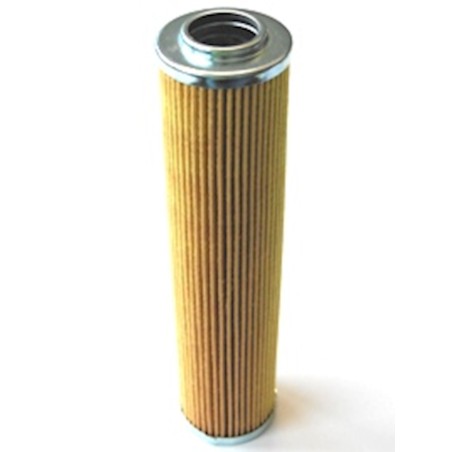

HY 18338 P 25 218 NBR 20
max. flow rate measured with oil kinematic viscosity of 30 mm²/s and ?P 1,5 bar

other versions on enquiry
