Series SL - Clip on Air Cleaners with metal end caps

SF clip on air cleaners with metal end caps are suitable for the filtration of intake air in low-dust areas
Applications: stationary engines, generators, compressors and marine engines with little dust loading and 2 and 3 cylinder engines with high pulsation
Installation: horizontal and vertical
Installation: clip on air cleaner must be mounted with a tension strap



SF-part-no. Dimensions in mm
i Ø Adapter d1 Ø d2 Height h2 Height h1 Volume flow (m³/min.)
SL 81712 41 98 133 105
SL 81048 50 145 104 83

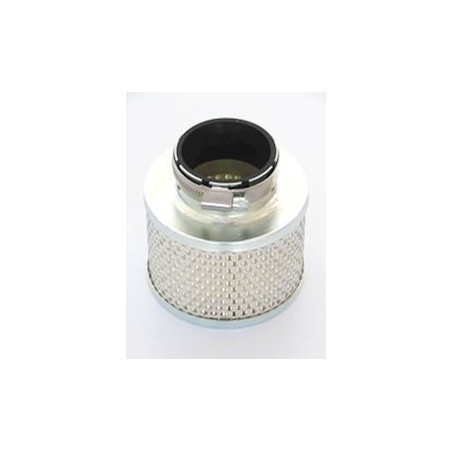

SL 81316 52 98 100 72
SL 81211 52 98 128 105
SL 81715 52 98 133 105
SL 81752 52 140 75 50
SL 81180/1 60 152 152 126
SL 81436 60 200 180 150
SL 81749 61 152 130 105
SL 81748 71 152 150 125

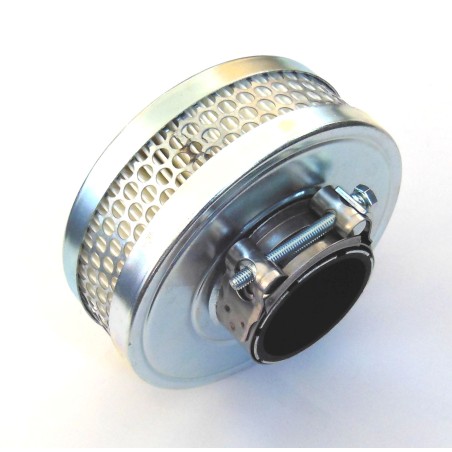

SL 81751 81 200 104 70
SL 81212 81 200 185 150
SL 81750 81 257 108 70
SL 81719 102 200 190 150
SL 81645 102 257 198 160
