Brass Inox - filter housings + spare parts/accessories

Brass Inox - filter housings + spare parts/accessories

Subcategories

  • WF/M 6 FS housing...

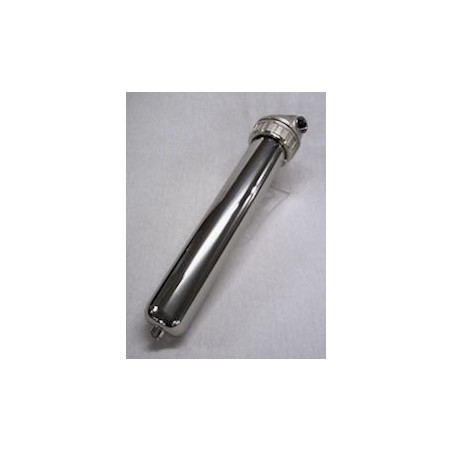

    WF/M 6 FS housing operating pressure: 15 bar - flow rate: 6000-8000 l/h

    Uses:


    Water treatment
    Industrial water
    Electroplating
    Surface technology
    Petrochemicals
    Oil
    Paint and varnish
    Solvents
    Compressed air
    Product properties:

    Filter head Brass
    Thread material Brass
    Filter bowl Inox
    Bowl union nut Brass
    Seal - filter bowl NBR
    Maximum temperature resistance (°C) 90°C
    Maximum operating pressure (bar) 15 bar


    Product properties:

    Size Capacity (l/h) Width (Thr.-Thr.) (mm) Height (filter head - bowl base) (mm) Thread in inches (BSP) Element series, see
    10" 6000 l/h 135 mm 337 mm G¾", G1" SW 10/…
    20" 8000 l/h 135 mm 571 mm G¾", G1" SW 20/…


    The complete spare parts and accessories list can be found on the data sheet "WF/M 6 FS housing: Spare parts and accessories".

    Filter cartridges for 10" and 20" housings are available in all series.
    category_280975.jpg?time=1533653441
  • WF/M 6 FS housing:...

    WF/M 6 FS housing: Spare parts and accessories

    Uses for WF/M 6 FS:


    Water treatment
    Industrial water
    Electroplating
    Surface technology
    Petrochemicals
    Oil
    Paint and varnish
    Solvents
    Compressed air
    Spare parts and accessories :

    Spare parts and accessories Reference number
    Drain tap WF-FS/ABLASSHAHN
    Manometer WF-MANOMETER
    Spanner for 10“ and 20“ union nut SF-ZUB 70302
    Wall holder for 10“ und 20“ housing SF-ZUB 70304
    O-Ring for 10“ and 20“ bowl (Buna NBR) DG-OR91,67X3,53
    O-Ring for 10“ and 20“ bowl (Viton) DG-OR91,67X3,53/V


    Filter cartridges for 10" and 20" housings are available in all series.
    category_280976.jpg?time=1533653441
