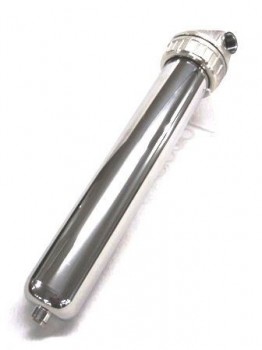

WF/M 6 FS housing operating pressure: 15 bar - flow rate: 6000-8000 l/h
6 products
WF/M 6 FS housing operating pressure: 15 bar - flow rate: 6000-8000 l/h
Uses:
Water treatment
Industrial water
Electroplating
Surface technology
Petrochemicals
Oil
Paint and varnish
Solvents
Compressed air
Product properties:
Product properties:
The complete spare parts and accessories list can be found on the data sheet "WF/M 6 FS housing: Spare parts and accessories".
Filter cartridges for 10" and 20" housings are available in all series.
| Filter head | Brass |
| Thread material | Brass |
| Filter bowl | Inox |
| Bowl union nut | Brass |
| Seal - filter bowl | NBR |
| Maximum temperature resistance (°C) | 90°C |
| Maximum operating pressure (bar) | 15 bar |
Product properties:
| Size | Capacity (l/h) | Width (Thr.-Thr.) (mm) | Height (filter head - bowl base) (mm) | Thread in inches (BSP) | Element series, see |
| 10" | 6000 l/h | 135 mm | 337 mm | G¾", G1" | SW 10/… |
| 20" | 8000 l/h | 135 mm | 571 mm | G¾", G1" | SW 20/… |
The complete spare parts and accessories list can be found on the data sheet "WF/M 6 FS housing: Spare parts and accessories".
Filter cartridges for 10" and 20" housings are available in all series.
