Fuel dispenser filter with water absorption

Fuel dispenser filter with water absorption

For filtration of contamination and water absorption in fuels
Application: gasoline and diesel
Application range: gasoline and diesel fuel dispenser
max. working pressure: 3.4 bar
10 micron and 30 micron: water absorbent media
Filter change: the filter media expand with the absorption of water and reduced the volume flow
Volume flow: 68.1 – 151 l/min.
category_280856.jpg?time=1535109707
SF-part no. Thread Fineness (µm) Volume flow (l/min.) Height (mm) Diameter (mm)
SK 3085 1"-12 UNF 10 68,1 220 95

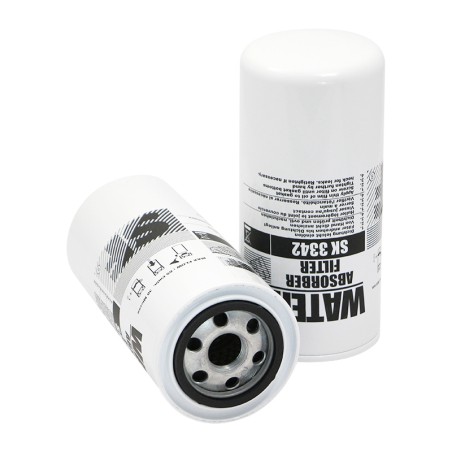

SK 3342 1"-12 UNF 30 68,1 220 95
SK 48530 1"-12 UNF 10 94,6 140 95

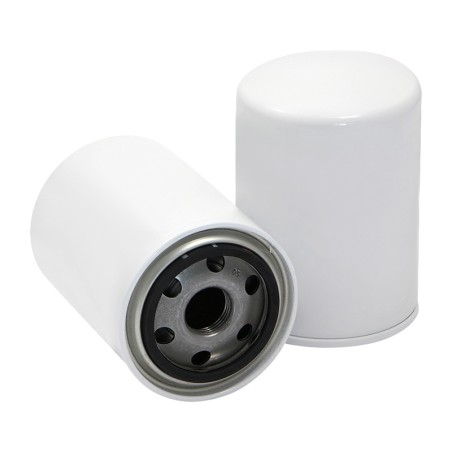

SK 3070 1"-12 UNF 30 50 140 95
SK 3341 1 1/2"-16 UNF 10 94,6 140 95

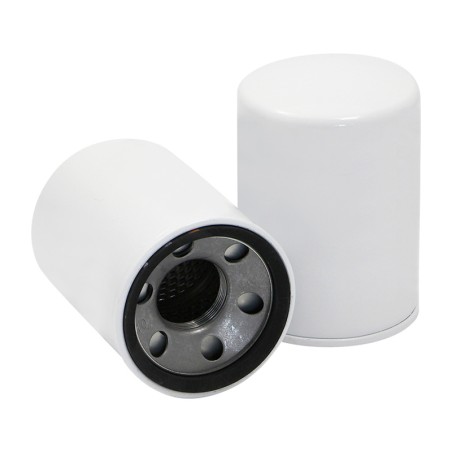

SK 3071 1 1/2"-16 UNF 30 94,6 140 95

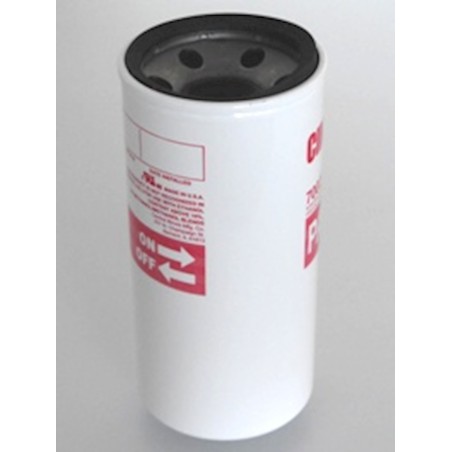

SK 48532 1 1/2"-16 UNF 10 94,6 205 95

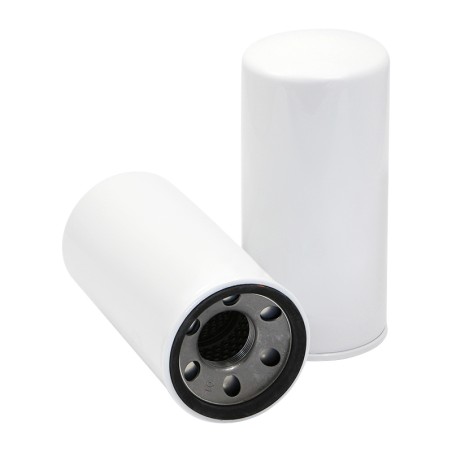

SK 48533 1 1/2"-16 UNF 30 94,6 205 95
SK 48535 1 1/2"-16 UNF 10 94,6 267 95
SK 3072 1 1/2"-16 UNF 30 94,6 267 95
SK 48531 1 1/2"-16 UNF 10 151 279 129
SK 3145 1 1/2"-16 UNF 30 151 279 129

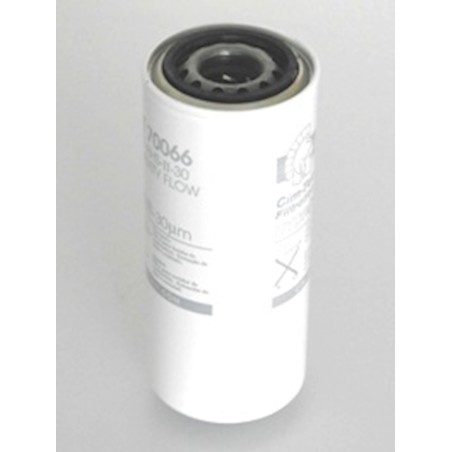

SK 3147 1 3/8"-12 UNF 30 68,1 220 95
For filtration of contamination and water absorption in fuels
Application: gasoline and diesel
Application range: gasoline and diesel fuel dispenser
max. working pressure: 3.4 bar
10 micron and 30 micron: water absorbent media
Filter change: the filter media expand with the absorption of water and reduced the volume flow
Volume flow: 68.1 – 151 l/min.
