Return Filter MPF 100 max. flow rate 360 l/min. - thread G ½" - G 1"

G ½" - G 1" MPF 100 max. flow rate 360 l/min

Return Filter MPF 100 max. flow rate 360 l/min. - thread G ½" - G 1"

he MPF return filter series are for tank top mounting in hydraulic and
lubricating oil circuits
Filter head: aluminium, port size G ½", G ¾" or G 1",
cover: Zytel, bowl: Nylon, NBR seals
Housings compatible with mineral oils to ISO 2943, aqueous emulsions,
synthetic fluids, water and glycol
Element material: resin impregnated paper media (P), inorganic microfiber (A)
or wire mesh (M)
Elements with NBR seal are compatible with mineral oils to ISO 2943, aqueous emulsions, synthetic fluids without HS-HFDR-HFDS-HFDU fluids,
water and glycol (elements of W-series on enquiry)
Optional FPM seals for HS-HFDR-HFDS-HFDU fluids to ISO 2943
Working pressure max. 8 bar - working temperature -25°C - +110°C
MPF100
category_280931.jpg?time=1533651870
MPF 100         MPF 100
Length H (mm) H1 (mm) Ø e (mm)   Port size A
1 99 120 38   G1 G ½"
2 146 170 38   G2 G ¾"
3 224 250 46,5   G3 G 1"


MPF100-1 Material / fineness Q max (l/min) Seal Bypass valve opening pressure (bar)

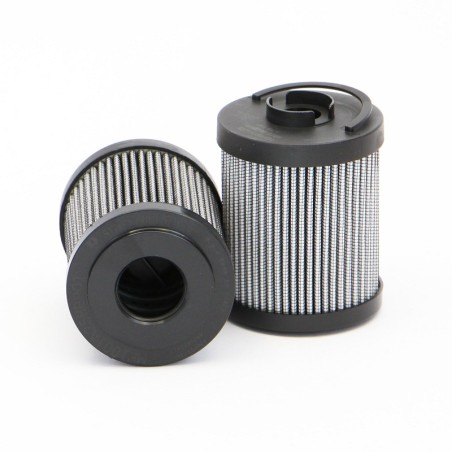

HY 18417 A 03 18 NBR 1,75 ± 10%
HY 18418 A 06 26 NBR 1,75 ± 10%
HY 18419 A 10 50 NBR 1,75 ± 10%
HY 18420 A 25 110 NBR 1,75 ± 10%

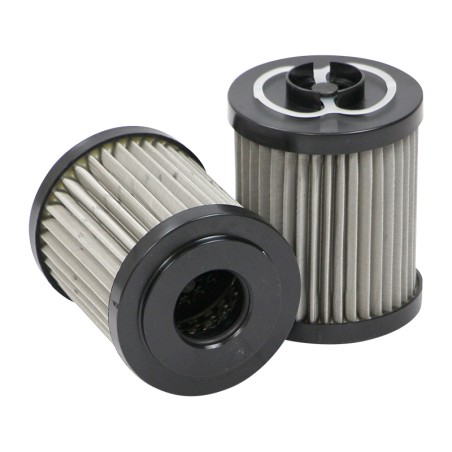

HY 18423 M 25 250 NBR 1,75 ± 10%
HY 18424 M 60 250 NBR 1,75 ± 10%
HY 18425 M 90 250 NBR 1,75 ± 10%
HY 18421 P 10 110 NBR 1,75 ± 10%
HY 18422 P 25 130 NBR 1,75 ± 10%
max. flow rate measured with oil kinematic viscosity of 30 mm²/s and ?P 0,5 bar

MPF100-2 Material / fineness Q max (l/min) Seal Bypass valve opening pressure (bar)
HY 18426 A 03 31 NBR 1,75 ± 10%
HY 18427 A 06 40 NBR 1,75 ± 10%
HY 18428 A 10 80 NBR 1,75 ± 10%
HY 18429 A 25 160 NBR 1,75 ± 10%

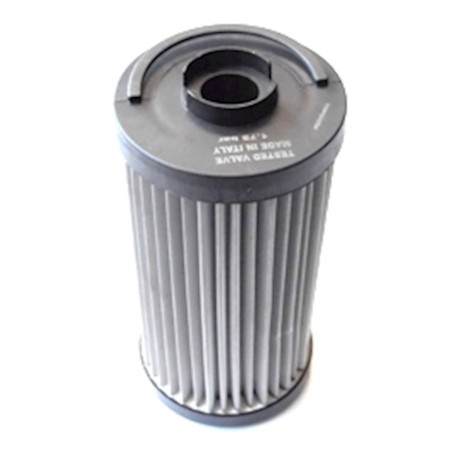

HY 18432 M 25 360 NBR 1,75 ± 10%

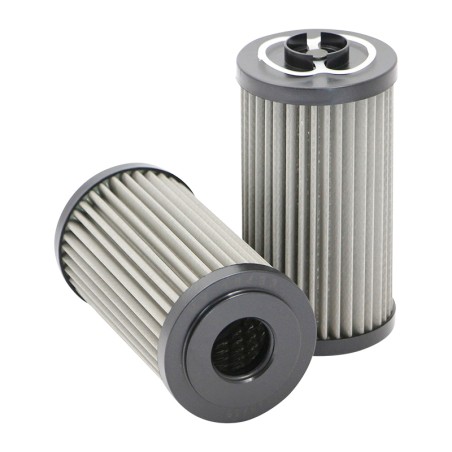

HY 18433 M 60 360 NBR 1,75 ± 10%
HY 18434 M 90 360 NBR 1,75 ± 10%
HY 18430 P 10 170 NBR 1,75 ± 10%

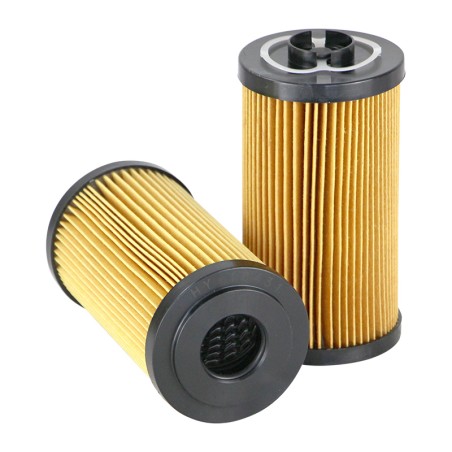

HY 18431 P 25 190 NBR 1,75 ± 10%
max. flow rate measured with oil kinematic viscosity of 30 mm²/s and ?P 0,5 bar

MPF100-3 Material / fineness Q max (l/min) Seal Bypass valve opening pressure (bar)
HY 18435 A 03 50 NBR 1,75 ± 10%
HY 18436 A 06 65 NBR 1,75 ± 10%
HY 18437 A 10 135 NBR 1,75 ± 10%
HY 18438 A 25 240 NBR 1,75 ± 10%
HY 18441 M 25 360 NBR 1,75 ± 10%
HY 18442 M 60 360 NBR 1,75 ± 10%
HY 18443 M 90 360 NBR 1,75 ± 10%

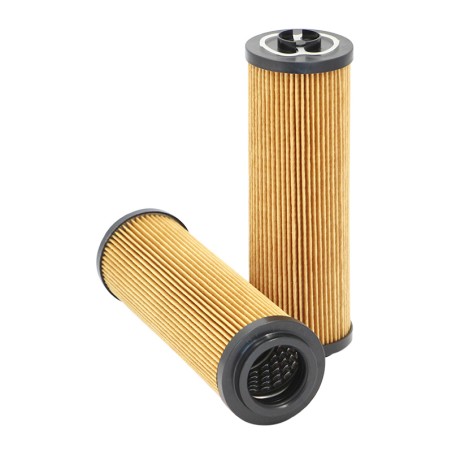

HY 18439 P 10 260 NBR 1,75 ± 10%
HY 18440 P 25 280 NBR 1,75 ± 10%
max. flow rate measured with oil kinematic viscosity of 30 mm²/s and ?P 0,5 bar
MPF104 series on enquiry
