G 3/4" Hydraulic Suction Strainers

For protecting pumps in the suction path of hydraulic systems from any coarse contaminants that may enter the tank
Suitable for filtration of hydraulic fluids and lubricants
Operating temperature -20°C to +100°C
Information on volume flow dependent on test liquid and test conditions*
Flow direction from outside to inside
Increased filter surface by means of corrugation
High operational reliability due to inner perforated framework
Suction must take place below the level of the oil
Optional: can be supplied with bypass

Suction Strainer G ¾" (Size B)

Suction Strainer G 1 1/4" Hydraulic Suction Strainers G 1 1/4"

SF Article Length
L1
(mm)		 Length
L2
(mm)		 Diameter D (mm) Size
K
(mm)		 Fineness (µm) Material Mesh Material Thread Material Base Valve (bar)/ Magnet Volume flow** (l/min)
HY 90244 72 69 62 32 150 Wire Electro- galvanized - 51
HY 90331 79 67 75 36 150 Wire Aluminium Steel - 50
HY 15743 87 75 61 32 100 V2A PA6GF30 galvanized - 50
HY 10349 90 74 59 36 100 V2A Steel Steel - 35
HY 10270 90 74 70 36 100 V2A Steel Steel - 35
HY 18591 95 83 70 41 60 Wire Nylon Nylon - 30

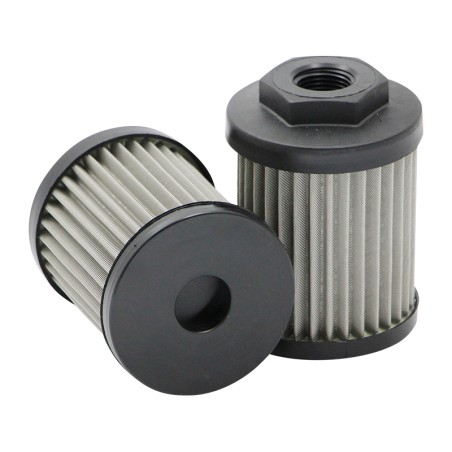

HY 18592 95 83 70 41 90 Wire Nylon Nylon - 30
HY 18593 95 83 70 41 250 Wire Nylon Nylon - 30
HY 18564 111 95 65 42 125 Wire Plastic galvanized - 25

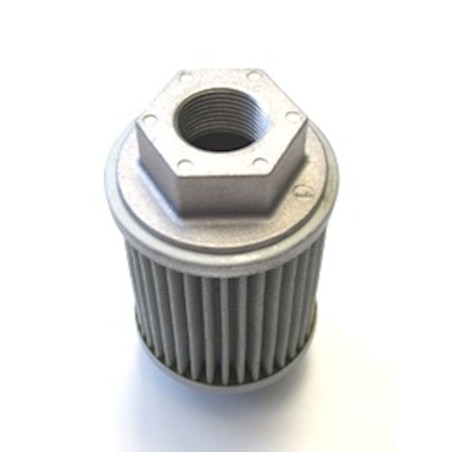

HY 18500 114 80 70 42 90 Wire Aluminium galvanized - 32
HY 18501 114 80 70 42 250 Wire Aluminium galvanized - 32
HY 13509 127 110 63 46 75 Wire Polyamide Polyamide - 40
HY 13275 127 110 63 46 125 Wire Polyamide Polyamide - 40

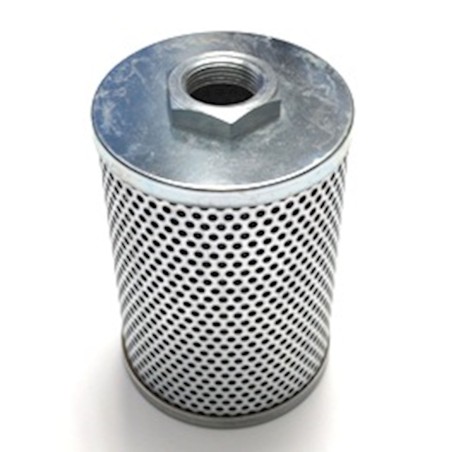

HY 5983 136 129 89 36 60 V2A galvanized   - 35

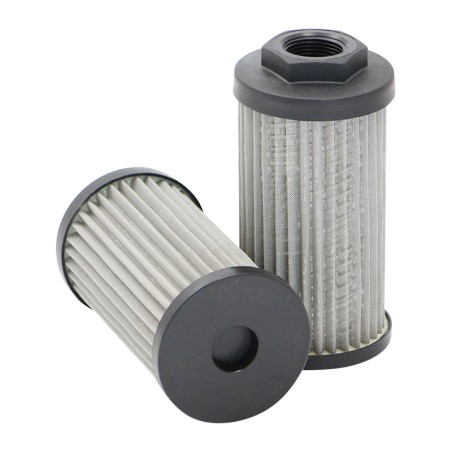

HY 18594 140 128 70 41 60 Wire Nylon Nylon - 30
HY 18594-
BYP		 144 128 70 41 60 Wire Nylon Nylon 0,3 30
HY 18595 140 128 70 41 90 Wire Nylon Nylon - 30
HY 18595-
BYP		 144 128 70 41 90 Wire Nylon Nylon 0,3 30
HY 18597 140 128 70 41 250 Wire Nylon Nylon - 30
HY 18931 144 134 65 41 90 Wire Nylon Nylon - 30

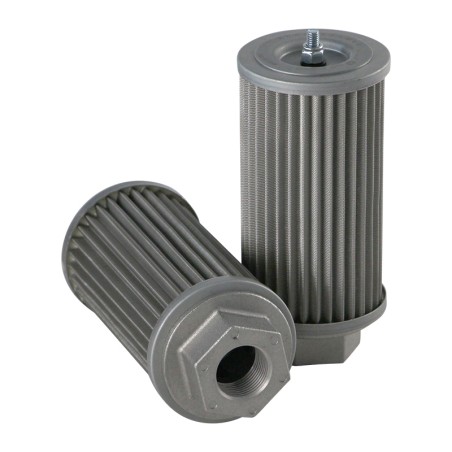

HY 18502 159 125 70 42 60 Wire Aluminium galvanized - 45
HY 18502-Magnet 159 125 70 42 60 Wire Aluminium galvanized Magnet 45

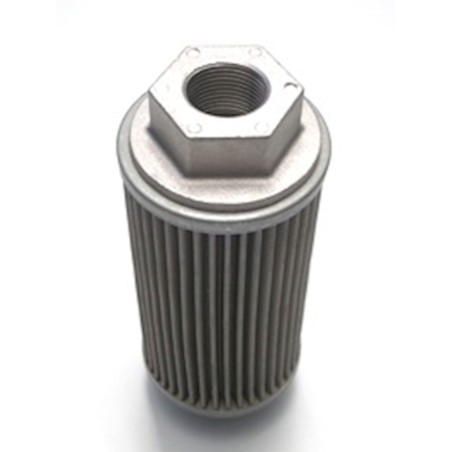

HY18503 159 125 70 42 90 Wire Aluminium galvanized - 45
HY 18503-Magnet 159 125 70 42 90 Wire Aluminium galvanized Magnet 45
HY 18504 159 125 70 42 252 Wire Aluminium galvanized - 45
For other sizes please enquire
