G 1-1/4" Hydraulic Suction Strainers

For protecting pumps in the suction path of hydraulic systems from any coarse contaminants that may enter the tank
Suitable for filtration of hydraulic fluids and lubricants
Operating temperature -20°C to +100°C
Information on volume flow dependent on test liquid and test conditions*
Flow direction from outside to inside
Increased filter surface by means of corrugation
High operational reliability due to inner perforated framework
Suction must take place below the level of the oil
Optional: can be supplied with bypass
Suction Strainer G 1¼" (Size B)
Suction Strainer G 1 1/4" Hydraulic Suction Strainers G 1 1/4"
SF Article Length
L1
(mm)		 Length
L2
(mm)		 Diameter D (mm) Size
K
(mm)		 Fine- ness (µm) Material Mesh Material Tread Material Base Valve (bar)/
Magnet		 Volume
flow* (l/min)

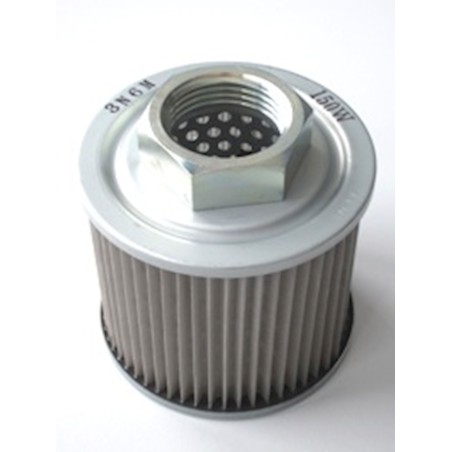

HY 22881 87 71 104 50 60 Wire Electro- galvanized - 140
HY 90243 87 71 104 50 150 Wire Electro- galvanized - 140
HY 12140 94 78 140 60 60 Wire Aluminium Steel - 64
HY 12138 94 78 140 60 90 Wire Aluminium Steel - 65

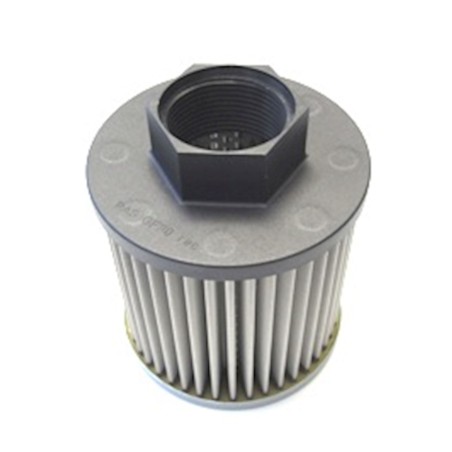

HY 15745 122 101 99 46 100 V2A PA6GF30 galvanized - 150
HY 11955 130 111 78 55 130 V2A Plastic galvanized - 130
HY 18601 135 116 99 69 60 Wire Nylon Nylon - 90
HY 18602 135 116 99 69 90 Wire Nylon Nylon - 90
HY 18603 135 116 99 69 250 Wire Nylon Nylon - 90

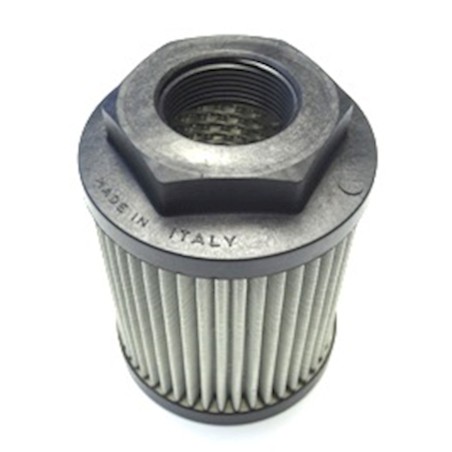

HY 18906 135 116 99 69 500 Wire Nylon Nylon - 90
HY 15745-
V4A		 143 102 11 050 100 V4A V4A V4A - 150

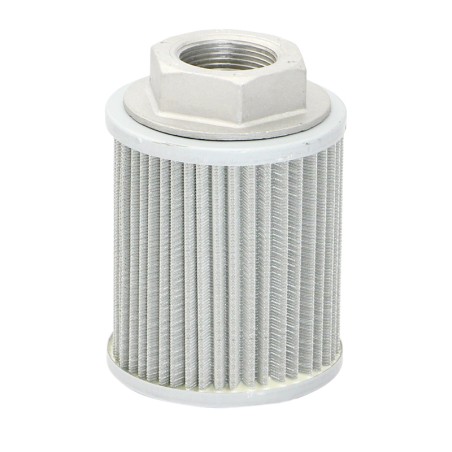

HY 18514 147 114 99 60 60 Wire Aluminium galvanized - 90
HY 18514-MAGNET 147 114 99 60 60 Wire Aluminium galvanized Magnet 90
HY 18515 147 114 99 60 90 Wire Aluminium galvanized - 90
HY 18515-MAGNET 147 114 99 60 90 Wire Aluminium galvanized Magnet 90
HY 18516 147 114 99 60 250 Wire Aluminium galvanized - 90
HY 9269 147 114 99 60 250 Wire Aluminium galvanized - 80

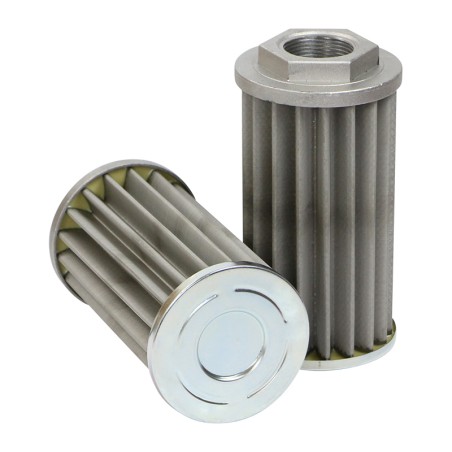

HY 12144 184 172 95 60 60 Wire Aluminium galvanized - 65
HY 12142 184 172 95 60 93 Wire Aluminium galvanized - 65

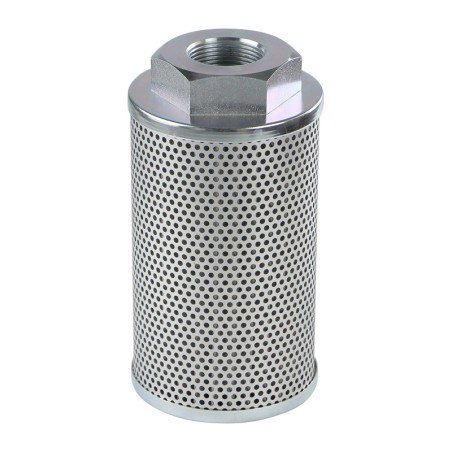

HY 9103 195 175 105 70 90 Wire Steel galvanized - 90
HY 10280 205 185 70 50 100 V2A Steel Steel - 90
HY 18604 224 206 99 69 60 Wire Nylon Nylon - 90

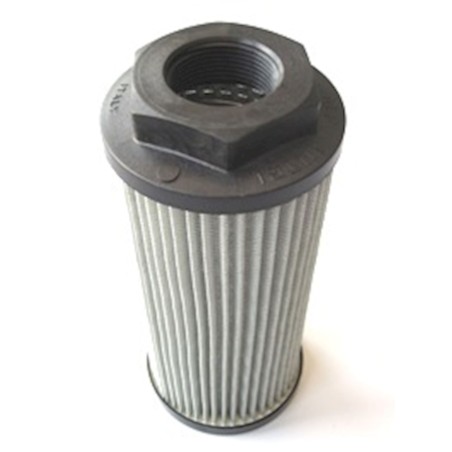

HY 18605 224 206 99 69 90 Wire Nylon Nylon - 90
HY 18606 224 206 99 69 250 Wire Nylon Nylon - 90
HY 18861 224 206 99 69 500 Wire Nylon Nylon - 90

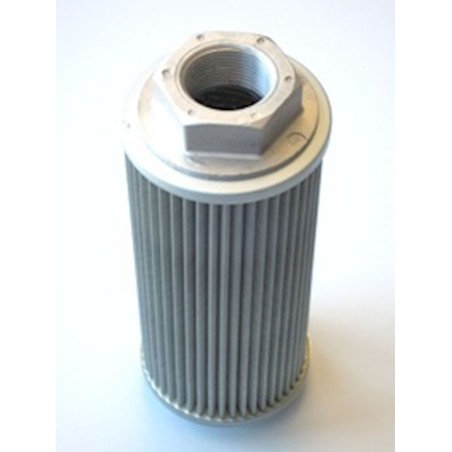

HY 18517 237 204 99 60 60 Wire Aluminium galvanized - 90
HY 18517-MAGNET 237 204 99 60 60 Wire Aluminium galvanized Magnet 90

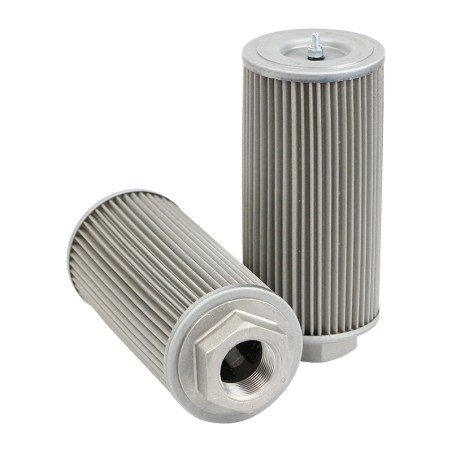

HY 18518 237 204 99 60 60 Wire Aluminium galvanized - 90
HY 18519 237 204 33 60 250 Wire Aluminium galvanized - 90

Suction Strainer G 1 1/4"
