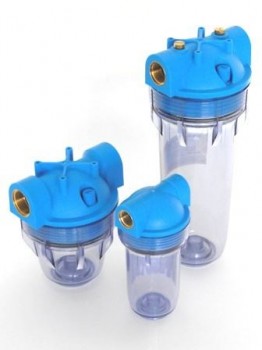

WF 2 housing operating pressure: 5-10 bar - flow rate: 2000-6000 l/h
9 products
WF 2 housing operating pressure: 5-10 bar - flow rate: 2000-6000 l/h
Food and beverages
Photographic industry
Photographic industry
Product properties:
Dimensions:
The complete spare parts and accessories list can be found on the data sheet "WF 2 housing: Spare parts and accessories".
Filter cartridges for 4" housings are available in the following series:
Depth filtration: BA / cotton, PO / polypropylene,
Surface filtration: N / nylon, P / paper,
Inox version: M / Solinox RA
Filter cartridges for 5"Mignon housings are available in the following series:
Depth filtration: PO / polypropylene,
Surface filtration: N / nylon, P / paper,
Inox version: M / Solinox RA, MX / Retinox
Filter cartridges for 10" housings are available in all series.
| Filter head | Polypropylene |
| Thread material | Brass |
| Filter bowl | Polycarbonate (TP) |
| Seal - filter bowl | NBR |
| Maximum temperature resistance (°C) | 50°C |
| Maximum operating pressure (bar) | 10 bar (5"Mignon: 5 bar) |
Dimensions:
| Size | Capacity (l/h) | Width (Thr.-Thr.) (mm) | Height (filter head - bowl base) (mm) | Thread in inches (BSP) | Element series, see |

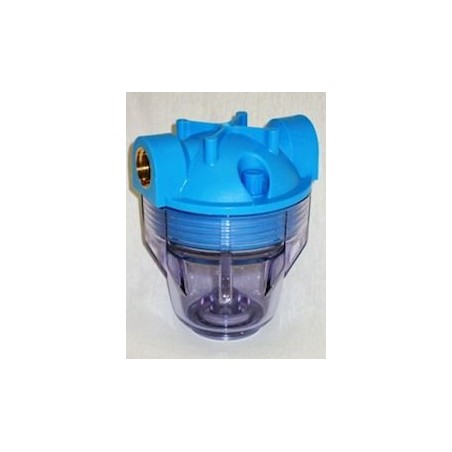

| 4" | 3000 l/h | 132 mm | 163 mm | G¾", G1" | SW 4/… |

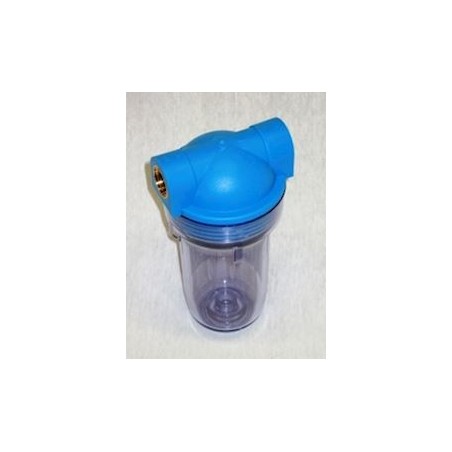

| 5"Mignon | 2000 l/h | 90 mm | 175 mm | G½" | SW 5/… |
| 10" | 6000 l/h | 132 mm | 313 mm | G¾", G1" | SW 10/… |
Filter cartridges for 4" housings are available in the following series:
Depth filtration: BA / cotton, PO / polypropylene,
Surface filtration: N / nylon, P / paper,
Inox version: M / Solinox RA
Filter cartridges for 5"Mignon housings are available in the following series:
Depth filtration: PO / polypropylene,
Surface filtration: N / nylon, P / paper,
Inox version: M / Solinox RA, MX / Retinox
Filter cartridges for 10" housings are available in all series.
