Plastic filter housings polypropylene/polycarbonate TP +

Plastic filter housings polypropylene/polycarbonate TP +

Subcategories

  • WF 1 housing operating...

    WF 1 housing operating pressure: 5-10 bar - flow rate: 2000-8000 l/h

    Uses:
    Water treatment
    Electroplating
    Resin
    Paint
    Chemicals and pharmaceuticals industry
    Food and beverages
    Photographic industry

    Product properties:

    Filter head Polypropylene
    Thread material Brass
    Filter bowl Polycarbonate (TP)
    bowl union nut Polypropylene
    Seal - filter bowl NBR
    Maximum temperature resistance (°C) 50°C
    Maximum operating pressure (bar) 10 bar (5"Mignon: 5 bar)


    Dimensions:

    Size Capacity (l/h) Width (Thr.-Thr.) (mm) Height (filter head - bowl base) (mm) Thread in inches (BSP) Element series, see
    5"Mignon 2000 l/h 90 mm 175 mm G½" SW 5/…

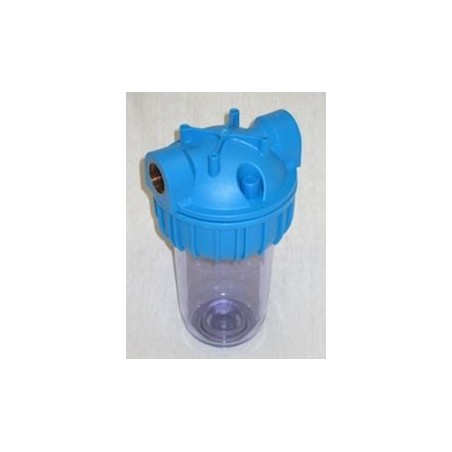

    7" 4000 l/h 132 mm 241 mm G¾", G1" SW 7/…
    10" 6000 l/h 132 mm 313 mm G½", G¾", G1", G1¼" SW 10/…
    20" 8000 l/h 132 mm 571 mm G¾", G1" SW 20/…
    The complete spare parts and accessories list can be found on the data sheet "WF 1 housing: Spare parts and accessories".

    Filter cartridges for 5"Mignon housings are available in the following series:
    Depth filtration: PO / polypropylene,
    Surface filtration: N / nylon, P / paper,
    Inox version: M / Solinox RA, MX / Retinox

    Filter cartridges for 7" housings are available in the following series:
    Depth filtration: BA / cotton, PO / polypropylene,
    Surface filtration: N / nylon, P / paper,
    Active carbon: AKPO / active carbon

    Filter cartridges for 10" and 20" housings are available in all series.
    category_281020.jpg?time=1535117875
  • WF 1 housing: Spare...

    WF 1 housing: Spare parts and accessories

    Uses for WF 1 housings:

    Water treatment
    Electroplating
    Resin
    Paint
    Chemicals and pharmaceuticals industry
    Food and beverages
    Photographic industry
    Spare parts and accessories:

    Spare parts and accessories: Reference number
    Drain tap unavailable
    Manometer WF-MANOMETER
    Spanner for 5"Mignon union nut SCH-WF/L
    Spanner for 7" / 10" and 20" union nut (Not suitable for 10" with G 1 1/4" thread - G9) SCH-WF/N
    Spanner for 10" with G 1 1/4" thread - G9 SCH-WF/R
    Wall holder for 5" Mignon housing unavailable
    Wall holder for 7" / 10" and 20" housing (Not suitable for 10" with G 1 1/4" thread - G9) WF 1-2/HALTER
    Wall holder 10" with G 1 1/4" thread - G9 WF 1-G9/HALTER
    Bowl for 5" Mignon housing WF1-3MIGN/BEHÄLTER
    Bowl for 7" housing WF 1-7/BEHAELTER
    Bowl for 10" housing (Not suitable for 10" with G 1 1/4" thread - G9) WF 1-10/BEHAELTER
    Bowl for 10" with G 1 1/4" thread - G9 SF-ZUB 70303
    Bowl for 20" housing WF 1-20/BEHAELTER
    Union nut for 5"Mignon bowl WF-5"/ÜBERWURFMUT.

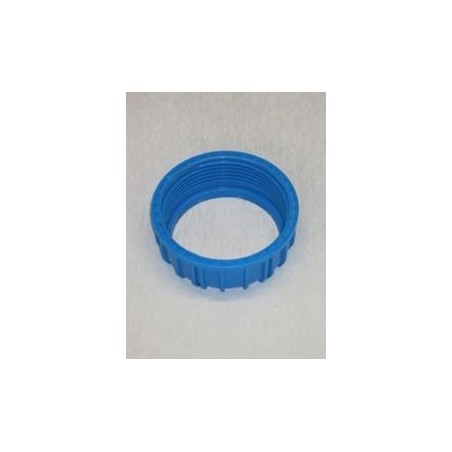

    Union nut for 7" / 10" and 20" bowl (Not suitable for 10" with G 1 1/4" thread - G9) WF-10"/ÜBERWURFMUT
    O-ring for 5"Mignon bowl (NBR) DG-WF4/MIGN-DICHT
    O-ring for 7" / 10" and 20" bowl (NBR) (Not suitable for 10" with G 1 1/4" thread - G9) DG-WF1/DICHTUNG
    O-ring for 10" with G 1 1/4" thread - G9 (NBR) DG-OR 88,49X3,53
    O-ring for 7“ / 10“ and 20“ bowl (Viton) DG-WF1/V-DICHTUNG


    Filter cartridges for 5"Mignon housings are available in the following series:
    Depth filtration: PO / polypropylene,
    Surface filtration: N / nylon, P / paper,
    Inox version: M / Solinox RA, MX / Retinox

    Filter cartridges for 7" housings are available in the following series:
    Depth filtration: BA / cotton, PO / polypropylene,
    Surface filtration: N / nylon, P / paper,
    Active carbon: AKPO / active carbon

    Filter cartridges for 10" and 20" housings are available in all series.
    category_281021.jpg?time=1535117877
  • WF 2 housing: Spare...

    WF 2 housing: Spare parts and accessories

    Uses for WF 2 housings:

    Water treatment
    Electroplating
    Resin
    Paint
    Chemicals and pharmaceuticals industry
    Food and beverages
    Photographic industry
    Spare parts and accessories :

    Spare parts and accessories Reference number
    Drain tap unavailable
    Manometer WF-MANOMETER
    Spanner for 5"Mignon bowl      SCH-WF/M
    Spanner for 4" and 10" bowl SCH-WF/V
    Wall holder for 5"Mignon housing unavailable
    Wall holder for 4" and 10" housing WF 1-2/HALTER

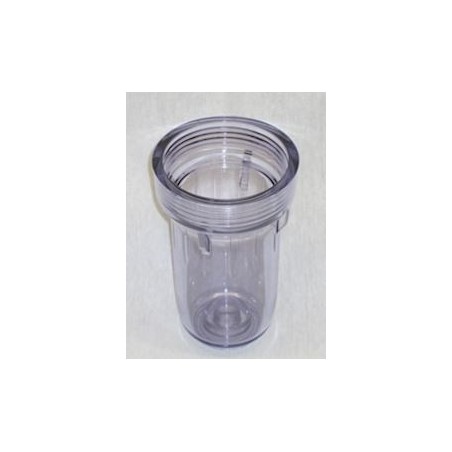

    Bowl for 5"Mignon housing WF2-4MIGN/BEHÄLTER

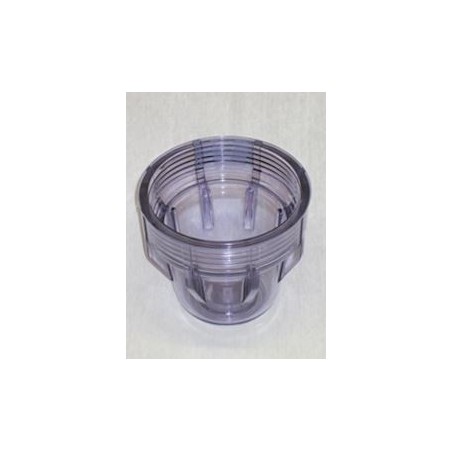

    Bowl for 4“ housing WF 2-4/BEHÄLTER

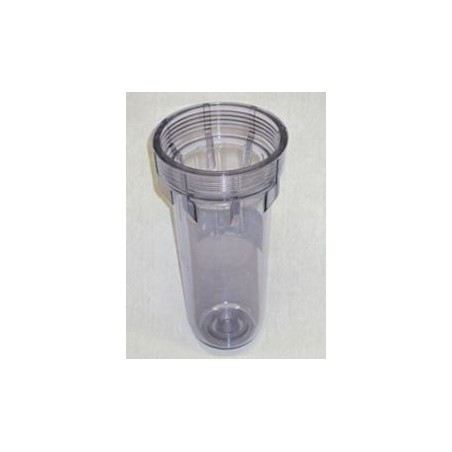

    Bowl for 10“ housing WF 2-10/BEHAELTER
    O-ring for 5“Mignon bowl (Buna NBR) DG-WF4/MIGN-DICHT
    O-ring for 4“ and 10“ bowl (Buna NBR) DG-WF2/DICHTUNG
    O-ring for 4“ and 10“ bowl (Viton) DG-WF2/V-DICHTUNG


    Filter cartridges for 4" housings are available in the following series:
    Depth filtration: BA / cotton, PO / polypropylene,
    Surface filtration: N / nylon, P / paper,
    Inox version: M / Solinox RA

    Filter cartridges for 5"Mignon housings are available in the following series:
    Depth filtration: PO / polypropylene,
    Surface filtration: N / nylon, P / paper,
    Inox version: M / Solinox RA, MX / Retinox
    Filter cartridges for 10" housings are available in all series.
    category_281022.jpg?time=1535117878
  • WF 2 housing operating...

    WF 2 housing operating pressure: 5-10 bar - flow rate: 2000-6000 l/h

    Food and beverages
    Photographic industry
    Product properties:

    Filter head Polypropylene
    Thread material Brass
    Filter bowl Polycarbonate (TP)
    Seal - filter bowl NBR
    Maximum temperature resistance (°C) 50°C
    Maximum operating pressure (bar) 10 bar (5"Mignon: 5 bar)


    Dimensions:

    Size Capacity (l/h) Width (Thr.-Thr.) (mm) Height (filter head - bowl base) (mm) Thread in inches (BSP) Element series, see
    4" 3000 l/h 132 mm 163 mm G¾", G1" SW 4/…
    5"Mignon 2000 l/h 90 mm 175 mm G½" SW 5/…
    10" 6000 l/h 132 mm 313 mm G¾", G1" SW 10/…
    The complete spare parts and accessories list can be found on the data sheet "WF 2 housing: Spare parts and accessories".

    Filter cartridges for 4" housings are available in the following series:
    Depth filtration: BA / cotton, PO / polypropylene,
    Surface filtration: N / nylon, P / paper,
    Inox version: M / Solinox RA

    Filter cartridges for 5"Mignon housings are available in the following series:
    Depth filtration: PO / polypropylene,
    Surface filtration: N / nylon, P / paper,
    Inox version: M / Solinox RA, MX / Retinox

    Filter cartridges for 10" housings are available in all series.
    category_281023.jpg?time=1535117878
  • WF 3 and WF 4 housing...

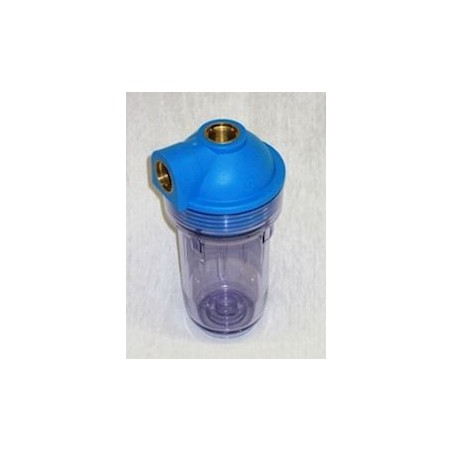

    WF 3 and WF 4 housing operating pressure: 5 bar - flow rate: 2000 l/h + spare parts and accessories

    Uses:

    Water treatment
    Electroplating
    Resin
    Paint
    Chemicals and pharmaceuticals industry
    Food and beverages
    Photographic industry
    Product properties:

    Filter head Polypropylene
    Thread material Brass
    Filter bowl Polycarbonate (TP)
    Union nut for WF3 bowl Polypropylene
    Seal - filter bowl NBR
    Maximum temperature resistance (°C) 50°C
    Maximum operating pressure (bar) 5 bar


    Dimensions:

    Size Capacity (l/h) Width (Thr.-Thr.) (mm) Height (filter head - bowl base) (mm) Thread in inches (BSP) Element series, see
    5"Mignon 2000 l/h 90 mm 175 mm G½" SW 5/…


    Filter cartridges for 5"Mignon housings are available in the following series:
    Depth filtration: PO / polypropylene,
    Surface filtration: N / nylon, P / paper,
    Inox version: M / Solinox RA, MX / Retinox

    Spare parts and accessories:

    Spare parts and accessories Reference number
    Drain tap unavailable
    Manometer unavailable
    Spanner for WF 3-5“Mignon union nut SCH-WF/L
    Spanner for WF 4-5“Mignon bowl SCH-WF/M
    Wall holder for 5“Mignon housing unavailable
    Bowl for WF 3-5“Mignon-Gehäuse WF1-3MIGN/BEHÄLTER
    Bowl for WF 4-5“Mignon-Gehäuse WF2-4MIGN/BEHÄLTER
    Union nut for WF3-5“Mignon bowl WF-5"/ÜBERWURFMUT.
    O-ring for WF 3- und WF 4-5“Mignon bowl (Buna NBR) DG-WF4/MIGN-DICHT

    category_281024.jpg?time=1535117880

  • WF 5 stepped filter...

    WF 5 stepped filter housing: Spare parts and accessories

    Uses for WF 5 - stepped filter housing:


    Water treatment
    Electroplating
    Resin
    Paint
    Chemicals and pharmaceuticals industry
    Food and beverages
    Photographic industry
    Spare parts and accessories :

    Spare parts and accessories Reference number
    Drain tap unavailable
    Manometer unavailable
    Spanner for 10" and 20" union nut SCH-WF/N

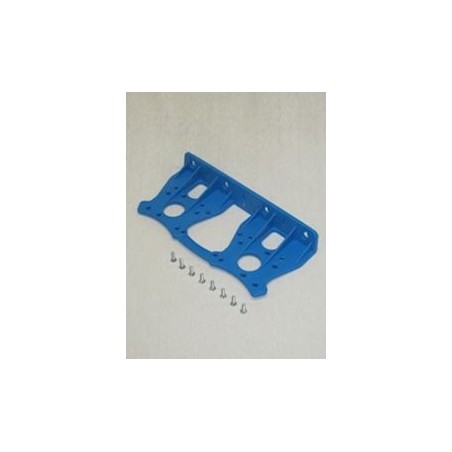

    Wall holder for 10" and 20" housing WF 5/HALTER
    Bowl for 10“ housing WF 1-10/BEHAELTER
    Bowl for 20“ housing WF 1-20/BEHAELTER
    Union nut for 10“ and 20“ bowl WF-10"/ÜBERWURFMUT
    O-ring for 10“ and 20“ bowl (Buna NBR) DG-WF1/DICHTUNG
    O-ring for 10“ and 20“ bowl (Viton) DG-WF1/V-DICHTUNG


    Filter cartridges for 10" and 20" housings are available in all series.
    category_281025.jpg?time=1535117880
  • WF 5 stepped filter...

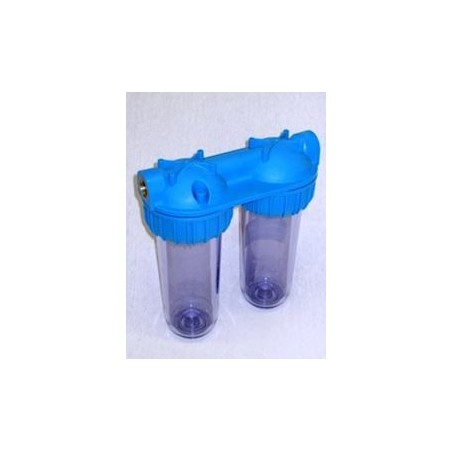

    WF 5 stepped filter housing operating pressure: 10 bar - flow rate: 6000-8000 l/h

    Uses:


    Water treatment
    Electroplating
    Resin
    Paint
    Chemicals and pharmaceuticals industry
    Food and beverages
    Photographic industry

    Product properties:

    Filter head Polypropylene
    Thread material Brass
    Filter bowl Polycarbonate (TP)
    bowl union nut Polypropylene
    Seal - filter bowl NBR
    Maximum temperature resistance (°C) 50°C
    Maximum operating pressure (bar) 10 bar


    Dimensions:

    Size Capacity (l/h) Width (Thr.-Thr.) (mm) Height (filter head - bowl base) (mm) Thread in inches (BSP) Element series, see
    10" 6000 l/h 274 mm 318 mm G¾", G1" SW 10/…
    20" 8000 l/h 274 mm 580 mm G¾", G1" SW 20/…


    The complete spare parts and accessories list can be found on the data sheet "WF 5 stepped filter housing: Spare parts and accessories".

    Filter cartridges for 10" and 20" housings are available in all series.
    category_281026.jpg?time=1535117881
