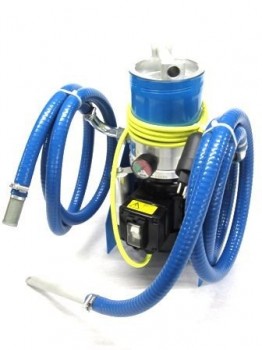

FA 014-1600 - Oil Service Unit
5 products
With the FA 016 hydraulic and lubricating systems can be filled or cleaned in off-line filtration
FAPC 016 with oil cleanliness monitor, the cleanliness class monitored permanently during the cleaning or filling process, the display area allows a choice of particle sizes: 4, 6, 14 and 21 micron, the display shows the classification number of the selected particle size, as specified by ISO 4406:1999)
Optional: trolley for easy transportation for FA 016 and FAPC 016
No tools are needed to open the housing and the filter element can be pulled out through the hang-in technique in the cover
On the bottom of the from inside to outside flown through filter elements there is a dirt retention valve. If the filter element is pulled out of the housing, the dirt retention
valve will close. Sedimented dirt is removed from the housing with the filter element.
Longer service intervals and higher machine availability
FAPC 016 with oil cleanliness monitor, the cleanliness class monitored permanently during the cleaning or filling process, the display area allows a choice of particle sizes: 4, 6, 14 and 21 micron, the display shows the classification number of the selected particle size, as specified by ISO 4406:1999)
Optional: trolley for easy transportation for FA 016 and FAPC 016
No tools are needed to open the housing and the filter element can be pulled out through the hang-in technique in the cover
On the bottom of the from inside to outside flown through filter elements there is a dirt retention valve. If the filter element is pulled out of the housing, the dirt retention
valve will close. Sedimented dirt is removed from the housing with the filter element.
Longer service intervals and higher machine availability
FA 016/FAPC 016
| Hydraulic fluids | Mineral oil and biodegradable fluids (other fluids on request) |
| Temperature range of fluids | 0°C - +60°C |
| Length of hoses | Suction hose NG20 x 1.8 m long with suction strainer 250 µm; Pressure hose NG20 x 2 m long – lance 0.20 m long |
| Ambient temperature range | 0°C - +50°C |
| Operating and transportation position | Upright and horizontal
|
| Pump design | Internal gear pump |
| Suction height | maximal 1.5 m |
| Clogging indicator | Manometer |
| FA 016-1100 | FA 016-1300 | FA 016-1110 | FAPC016-2105 | |
|
Nominal flow rate
|
16 l/min* | 16 l/min* | 19 l/min* | 16 l/min* |
|
Filter fineness
|
3EN2 ß3(C)=200 | 5EN2 ß5(C)=200 | 3EN2 ß3(C)=200 | 3EN2 ß3(C)=200 |
|
Dirt capacity Mi at Q
|
280 g | 270 g | 280 g | 280 g |
|
Operating voltage
|
1 ~ 230 V | 1 ~ 230 V | 1 ~ 110 V | 1 ~ 230 V |
|
Operating frequency
|
50/60 Hz | 50/60 HZ | 60 Hz | 50/60 HZ |
|
Motor power
|
0,45 kW* | 0,45 kW* | 0,3 kW* | 0,45 kW* |
|
Viscosity: continuous operation min.
|
15 mm²/s | 15 mm²/s | 15 mm²/s | 15 mm²/s |
|
Viscosity: continuous operation max.
|
250 mm²/s | 250 mm²/s | 200 mm²/s | 150 mm²/s |
|
Viscosity: short-term operation max.
|
400 mm²/s | 400 mm²/s | 400 mm²/s | 150 mm²/s |
|
Operating pressure max.
|
4 bar | 4 bar | 4 bar | 4 bar |
|
Weight
|
18,9 kg | 18,9 kg | 18,9 kg | 24 kg |
|
Particle monitor
|
- | - | - | OPComII |
|
Replacement element
|
V 7.1220-113 | V 7.1220-13 | V 7.1220-113 | V 7.1220-113 |
