  Strainer baskets SW-FK...

  Strainer baskets SW-FK to match WF-BFE and WF-BFS housings differential pressure: 5 bar - flow rate: to 20000 l/h Filter fineness: 10 µm - 1200 µm

  Uses:



  Process water
  Inks
  Paint
  Resin
  Electronics
  Solvents
  Coolants
  Lubricating oils
  Part cleaning systems
  Drains



  Product properties:



  Filter medium	Inox 304 / Inox 316
  Maximum temperature resistance (°C)	300°C
  Maximum flow rate, Size 01 (l/h)	20.000 l/h
  Maximum differential pressure at (bar)	5 bar



  Dimensions:



  Strainer basket size	Outside diameter (mm)	Strainer basket length (mm)
  SW-FK 01	170	300
  SW-FK 02	170	600
  SW-FK 03	100	150
  SW-FK 04	100	300

•

  WF-BFE housing...

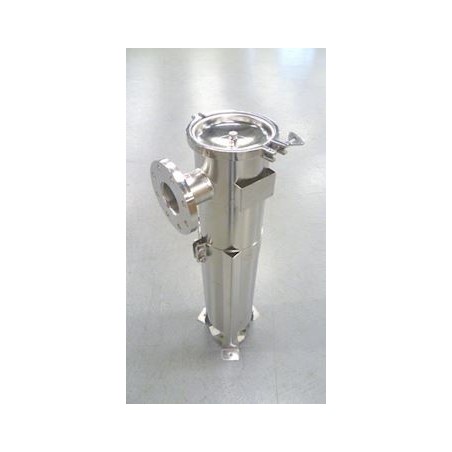

  WF-BFE housing operating pressure: 10 bar - flow rate: 7000 - 40000 l/h + spare parts and accessories

  Uses:



  Water treatment
  Chemicals and pharmaceuticals industry
  Electroplating
  Surface technology
  Food and beverages
  Paint and varnish



  Product properties:



  Filter head	Inox (304/316)
  Thread material	Inox (304/316)
  Filter bowl	Inox (304/316)
  Clamping ring with wing screw / threaded closure	Inox (304/316)
  Seal - filter bowl	NBR
  Maximum temperature resistance (°C)	90°C
  Maximum operating pressure (bar)	10 bar
  Scope of delivery	Sizes 03 and 04 without housing base frame sizes 01 and 02 with housing base frame



  Dimensions:



  Size	Capacity (l/h)	A (mm)	B (mm)	C (mm)	D (mm)	E (mm)	F (mm)	Thread in inches (BSP)	Filter bags, see
  03	7000	360	115	300	60	---	---	G1"	1 x L03 (VR)
  03	7000	360	115	300	60	---	---	G1¼"	1 x L03 (VR)
  03	7000	360	115	300	60	---	---	G1½"	1 x L03 (VR)
  04	10000	495	115	432	63	---	---	G1¼"	1 x L04 (VR)
  04	10000	495	115	432	63	---	---	G1½"	1 x L04 (VR)
  01	20000	650	220	515	115	variable	700	G2"	1 x L01 (VR)
  01	20000	650	220	515	115	variable	700	G2½"	1 x L01 (VR)
  02	40000	1050	220	915	115	variable	700	G2"	1 x L02 (VR)
  02	40000	1050	220	915	115	variable	700	DN65	1 x L02 (VR)
  02	40000	1050	220	915	115	variable	700	DN80	1 x L02 (VR)
  02	40000	1050	220	915	115	variable	700	G3"	1 x L02 (VR)



  Other versions on request.
  Spare parts and accessories:



  Spare parts and accessories	Reference number

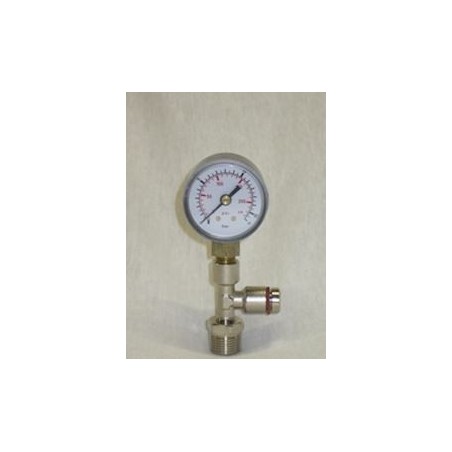

  Manometer	WF-BFE10/MANOMETER
  Clamping ring, series 01 and 02	V-BFE 01/02-A
  Clamping ring, series 03 and 04	on request
  O-ring for bowl (Buna NBR)	on request
  O-ring for bowl (Viton)	on request

•

  WF-BFS housing...

  WF-BFS housing operating pressure: 16 bar - flow rate: 7000 - 40000 l/h + spare parts and accessories

  Uses:



  Water treatment
  Chemicals and pharmaceuticals industry
  Electroplating
  Surface technology
  Food and beverages
  Paint and varnish



  Product properties:



  Filter head	Inox (304/316)
  Thread material	Inox (304/316)
  Filter bowl	Inox (304/316)
  Eyebolts	Inox (304/316)
  Seal - Filter bowl	NBR
  Maximum temperature resistance (°C)	90°C
  Maximum operating pressure (bar)	16 bar
  Scope of delivery	Sizes 03 and 04 without housing base frame, sizes 01 and 02 with housing base frame



  Dimensions:



  Size	Leistung (l/h)	A (mm)	B (mm)	C (mm)	D (mm)	E (mm)	F (mm)	Thread in inches (BSP)	Filter bags, see
  03	7000	410	115	295	115	---	---	G1¼"	1 x L03 (VR)
  03	7000	410	115	295	115	---	---	G1½ "	1 x L03 (VR)
  04	10000	545	115	425	120	---	---	G1¼"	1 x L04 (VR)
  04	10000	545	115	425	120	---	---	G1½"	1 x L04 (VR)
  01	20000	655	220	525	130	variable	700	DN 50	1 x L01 (VR)
  01	20000	650	220	515	115	variable	700	G2"	1 x L01 (VR)
  02	40000	1105	220	975	130	variable	700	DN 50	1 x L02 (VR)
  02	40000	1050	220	915	115	variable	700	G2"	1 x L02 (VR)
  02	40000	1105	220	975	130	variable	700	DN 65	1 x L02 (VR)
  02	40000	1105	220	975	130	variable	700	DN 80	1 x L02 (VR)



  Other versions on request. Spare parts and accessories:



  Spare parts and accessories	Reference number
  Manometer	WF-BFE10/MANOMETER
  O-ring for bowl (Buna NBR)	on request
  O-ring for bowl (Viton)	on request

•

  PPX / polypropylene...

  PPX / polypropylene extended filter bags Filter fineness: 1µm - 100 µm

  Uses:



  Petrochemicals
  Paint and varnish
  Water treatment
  Chemicals and pharmaceuticals industry
  Electronics
  Resin
  Polymers
  Inks
  Dispersions
  Foods



  Filter fineness: PLX – Polyester extended



  SNAP-ring (VR) VA steel ring	1 µm	5 µm	10 µm	25 µm	50 µm	100 µm
  SENT-ring (SR) Sentinel ring	1 µm	5 µm	10 µm	25 µm	50 µm	100 µm



  Size:



  Bag size	Outside diameter, ring (mm)	Filter bag length (mm)	Flow rate (m³/h)
  L01	180	380 – 420	20
  L02	180	780 – 820	40
  L03	105	230 – 250	6
  L04	105	350 – 400	12

•

  NMF / nylon...

  NMF / nylon monofilament filter bags Filter fineness: 25 µm- 1250 µm

  Petrochemicals
  Paint and varnish
  Water treatment
  Chemicals and pharmaceuticals industry
  Electronics
  Resin
  Polymers
  Inks
  Dispersions
  Foods



  Filter fineness in µm: NMF – nylon monofilament



  SNAP-ring (VR)	25	50	80	100	125	150	200	250	300	400	600	800	100	1250
  SENT-ring (SR)	25	50	80	100	125	150	200	250	300	400	600	800

  SNAP-ring (VR) = VA steel ring, SENT-ring (SR) = Sentinel ring Größe:



  Bag size	Outside diameter, ring (mm)	Filter bag length (mm)	Flow rate (m³/h)
  L01	180	380 – 420	20
  L02	180	780 – 820	40
  L03	105	230 – 250	6
  L04	105	350 – 400	12

•

  PLX / polyester...

  PLX / polyester extended filter bags Filter fineness: 1 µm - 100 µm

  Uses:



  Petrochemicals
  Paint and varnish
  Water treatment
  Chemicals and pharmaceuticals industry
  Electronics
  Resin
  Polymers
  Inks
  Dispersions
  Foods



  Filter fineness: PLX – Polyester extended



  SNAP-ring (VR) VA steel ring	1 µm	5 µm	10 µm	25 µm	50 µm	100 µm
  SENT-ring (SR) Sentinel ring	1 µm	5 µm	10 µm	25 µm	50 µm	100 µm



  Size:



  Bag size	Outside diameter, ring (mm)	Filter bag length (mm)	Flow rate (m³/h)
  L01	180	380 – 420	20
  L02	180	780 – 820	40
  L03	105	230 – 250	6
  L04	105	350 – 400	12

•

  PPO / polypropylene...

  PPO / polypropylene filter bags Filter fineness: 1 µm - 200µm

  Uses:



  Petrochemicals
  Paint and varnish
  Water treatment
  Chemicals and pharmaceuticals industry
  Electronics
  Resin
  Polymers
  Inks
  Dispersions
  Foods



  Filter fineness in µm: PPO – Polypropylene



  SNAP-ring (VR) VA steel ring	1	5	10	25	50	100	150	200
  SENT-ring (SR) Sentinelring	1	5	10	25	50	100	150	200



  Size:



  Bag size	Outside diameter, ring (mm)	Filter bag length (mm)	Flow rate (m³/h)
  L01	180	380 – 420	20
  L02	180	780 – 820	40
  L03	105	230 – 250	6
  L04	105	350 – 400	12

•

  PLE / polyester filter...

  PLE / polyester filter bags Filter fineness: 1 µm - 200 µm

  Uses:



  Petrochemicals
  Paint and varnish
  Water treatment
  Chemicals and pharmaceuticals industry
  Electronics
  Resin
  Polymers
  Inks
  Dispersions
  Foods

  Filter fineness in µm: PLE – Polyester



  SNAP-ring (VR) VA steel ring	1	5	10	25	50	100	150	200
  SENT-ring (SR) Sentinel ring	1	5	10	25	50	100	150	200

  Size:



  Bag size	Outside diameter, ring (mm)	Filter bag length (mm)	Flow rate (m³/h)
  L01	180	380 - 420	20
  L02	180	780 - 820	40
  L03	105	230 - 250	6
  L04	105	350 - 400	12
