Bypass filter housings + spare parts/accessories

Bypass filter housings + spare parts/accessories

Subcategories

  • WF/FBD and WF/FBDM...

    WF/FBD and WF/FBDM housing reversible operating pressure: 10 bar - flow rate: 6000 l/h

    Uses:


    Water treatment
    Chemicals and pharmaceuticals industry
    Food and beverages
    Photographic industry
    Product properties:

    Filter head (both versions) Brass
    Tread material (both versions) Brass
    Filter bowl WF/FBD Polycarbonate (TP)
    Filter bowl WF/FBDM  Inox
    Union nut (both versions) Brass
    Seal – filter bowl (both versions) NBR
    Maximum temperature resistance (°C) WF/FBD 50°C
    Maximum temperature resistance (°C) WF/FBDM 80°C
    Maximum operating pressure (bar), both versions 10 bar
    Scope of delivery per filter unit (both versions) 2 manometers and drain taps, fitted wall holder and 1 spanner for union nut


    Dimensions (both versions):

    Size Capacity (l/h) Width (mm) Height (mm) Thread in inches (BSP) ) Element series, see
    10" 6000 l/h 380 mm 430 mm G1" SW 10/…


    The complete spare parts and accessories list can be found on the data sheet "WF/FBD and WF/FBDM housing: Spare parts and accessories".

    Filter cartridges for 10" housings are available in all series.
    category_280977.jpg?time=1533653659
  • WF/BYP 1 housing:...

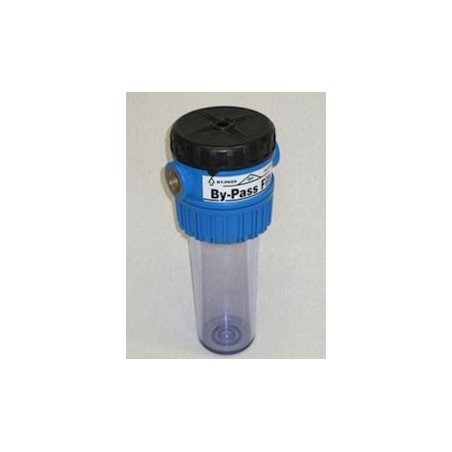

    WF/BYP 1 housing: 3-way housing operating pressure: 10 bar - flow rate: 6000-8000 l/h

    3-way housing:
    1. Filtration by the filter cartridge
    2. Liquid through bypass, without filtration
    3. Filter housing blocked, no flow


    Uses:


    Water treatment
    Chemicals and pharmaceuticals industry
    Food and beverages
    Photographic industry

    Product properties:

    Filter head Polypropylene
    Thread material Brass
    Filter bowl Polycarbonate (TP)
    Bowl union nut Polypropylene
    Seal - filter bowl NBR
    Maximum temperature resistance (°C) 50°C
    Maximum operating pressure (bar) 10 bar



    Dimensions:

    Size Capacity (l/h) Width (Thr.-Thr.) (mm) Height (filter head - bowl base) (mm) Thread in inches (BSP) Element series, see
    10" 6000 l/h 132 mm 340 mm G¾", G1" SW 10/…
    20" 8000 l/h 132 mm 571 mm G¾", G1" SW 20/…



    The complete spare parts and accessories list can be found on the data sheet "WF/BYP 1 housing: Spare parts and accessories".

    Filter cartridges for 10" and 20" housings are available in all series.

    category_280978.jpg?time=1533653660

  • WF/FB and WF/FBM...

    WF/FB and WF/FBM housing operating pressure: 10 bar - flow rate: 6000 l/h

    Uses:


    Water treatment
    Chemicals and pharmaceuticals industry
    Food and beverages
    Photographic industry
    Product properties:

    Filter head (both versions) Brass
    Thread material (both versions) Brass
    Filter bowl WF/FB Polycarbonate (TP)
    Filter bowl WF/FBM Inox
    Bowl union nut (both versions) Brass
    Seal – filter bowl (both version) NBR
    Maximum temperature resistance (°C) WF/FB 50°C
    Maximum temperature resistance (°C) WF/FBM 80°C
    Maximum operating pressure (bar), both versions 10 bar


    Dimensions (both versions):

    Size Capacity (l/h) Width (Thr.-Thr.) (mm) Height (filter head - bowl base) (mm) Thread in inches (BSP) Element series, see
    10" 6000 l/h 132 mm 340 mm G1" SW 10/…


    The complete spare parts and accessories list can be found on the data sheet "WF/FB and WF/FBM housing: Spare parts and accessories".

    Filter cartridges for 10" housings are available in all series.
    category_280979.jpg?time=1533653661
  • WF/FBD and WF/FBDM...

    WF/FBD and WF/FBDM housing reversible: Spare parts and accessories

    Uses for WF/FBD and WF/FBDM housing:


    Water treatment
    Chemicals and pharmaceuticals industry
    Food and beverages
    Photographic industry
    Spare parts and accessories:

    Spare parts and accessories Reference number
    Drain tap WF-FS/ABLASSHAHN
    Manometer WF/MANOMETER
    Spanner for union nut SCH-WF/J
    Wall holder for housing WF-FB/HALTER
    Polycarbonate (TP) bowl (closed) WF/M 1-10/BEHÄLTER
    Polycarbonate (TP) bowl with threaded bore hole for drain tap  WF/M 1-10/BEHÄ-ABL
    Inox bowl (closed) WF/M6-10/BEHÄLTER

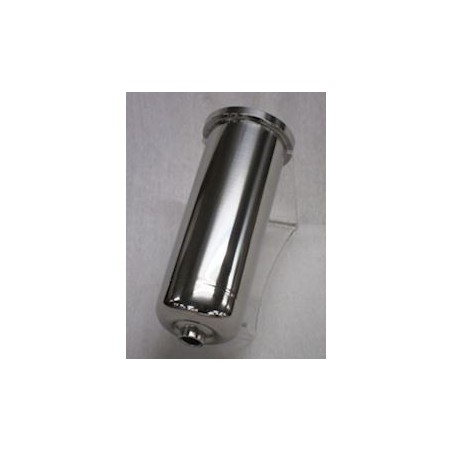

    Inox bowl with threaded bore hole for drain tap WF/M6-10/BEHÄ-ABL
    O-ring for bowl (Buna NBR) DG-WF/M6-DICHTUNG
    O-ring for bowl (Viton) DG-OR 88,49X3,53/V


    Filter cartridges for 10" housings are available in all series.
    category_280980.jpg?time=1533653661
  • WF/FB and WF/FBM...

    WF/FB and WF/FBM housing: Spare parts and accessories

    Uses for WF/FB and WF/FBM housing:


    Water treatment
    Chemicals and pharmaceuticals industry
    Food and beverages
    Photographic industry
    Spare parts and accessories:

    Spare parts and accessories Reference number
    Drain tap WF-FS/ABLASSHAHN
    Manometer WF/MANOMETER
    Spanner for union nut SCH-WF/J
    Wall holder for housing WF-FB/HALTER
    Polycarbonate bowl (TP) (closed) WF/M 1-10/BEHÄLTER
    Polycarbonate bowl (TP)with threaded bore hole for drain tap WF/M 1-10/BEHÄ-ABL
    Inox bowl (closed) WF/M6-10/BEHÄLTER
    Inox bowl with threaded bore hole for drain tap WF/M6-10/BEHÄ-ABL
    O-ring for bowl (Buna NBR) DG-WF/M6-DICHTUNG
    O-ring for bowl (Viton) DG-OR 88,49X3,53/V


    Filter cartridges for 10" housings are available in all series.

    category_280981.jpg?time=1533653662
  • WF / BYP 1 - Housing:...

    WF / BYP 1 - Housing: spare parts and accessories

    Applications for WF / BYP 1 - Housing:


    Water Treatment
    Chemical and Pharmaceutical Industry
    Food and Beverage
    Photographic Industry
    Spare parts and accessories:

    Spare parts and accessories reference
    drain cock not available
    manometer not available
    Release wrench for 10 "and 20" union nut SCH-WF / O
    Wall holder 10 "- and 20" -housing WF-BYP / HOLDER
    Container for 10 "-housing WF / BYP-10 / CONTAINERS
    Container for 20 "-housing WF / BYP-20 / CONTAINERS
    Union nut 10 "and 20" containers on demand
    O-ring for 10 "and 20" containers (Buna NBR) DG-OR 88,27X5,33
    O-ring for 10 "and 20" containers (Viton) DG-OR 88,27X5,33 / V


    Filter cartridges for 10 "and 20" housings are available in all series.
    category_280982.jpg?time=1533653662
