Fuel dispenser filter

SF Fuel dispenser filters

Subcategories

  • Fuel dispenser filter...

    For filtration of contamination in fuels
    Application: gasoline and diesel
    Application range: gasoline and diesel fuel dispenser
    10 micron, 25 micron and 40 micron: paper media,
    150 micron: wire mesh

    category_280854.jpg?time=1535109677

    SF-part no. Fuel Media Fineness (µm) Height (mm) O.D. (mm) I.D. (mm)
    SK 3784 gasoline paper 10 57 100 36
    SK 48752 gasoline  - 30 69 89 32/0
    SK 3167 gasoline paper 5-7 69 89 32/0
    SK 48767 gasoline paper 25 73 102 32/0
    SK 3782 gasoline paper 10 90 100 36
    SK 3501 gasoline paper 10 90 100 50
    SK 3789 gasoline paper 40 100 60 25

    SK 3783 diesel paper 25 57 100 36
    SK 48768 bio diesel - - 73 102 32/0
    SK 48581 diesel paper 70 90 100 50
    SK 3780 diesel paper 25 90 100 36
    SK 3781 diesel paper 40 90 100 36
    SK 3787 diesel paper 25 90 100 50
    SK 3788 diesel paper 40 90 100 50
    SK 3790 diesel paper 40 100 60 25
    SK 3793 diesel paper 25 150 100 45

    SK 3791  - wire mesh 150 90 100 36
    SK 3792  - wire mesh 150 90 100 50
  • Fuel dispenser filter...
    For use with concentration bio-fuels
    Application: see below chart
    Application range: fuel dispenserv max. working pressure: 3.4 bar
    High performance microglass media without water absorption
    (1 µm, 2 µm und 10 µm)
    Progressive hydroglass media with water absorption
    (2 µm)
    High performance microglass media with water absorption
    (10 µm)
    Volume flow: 94.6 - 151 l/min..
    category_280855.jpg?time=1535109707
    SF-part no. Water absorption Application Thread Fineness
    (µm)
    Volume flow
    (l/min.)
    Height
    (mm)
    Diameter
    (mm)
    SK 48536 no Ethanol blends up to E15, Biodiesel blends up to B100 1"-12 UNF 2 94,6 220 95

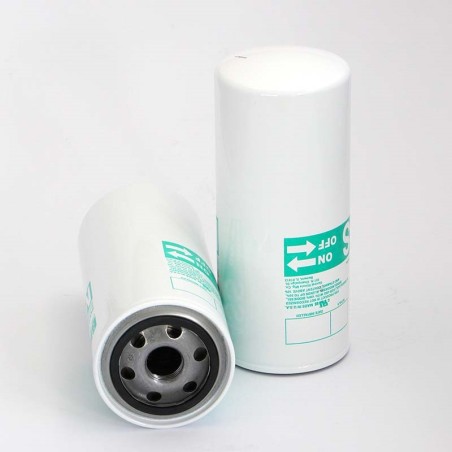

    SK 48538 no Ethanol blends up to E15, Biodiesel blends up to B100 1"-12 UNF 10 94,6 220 95

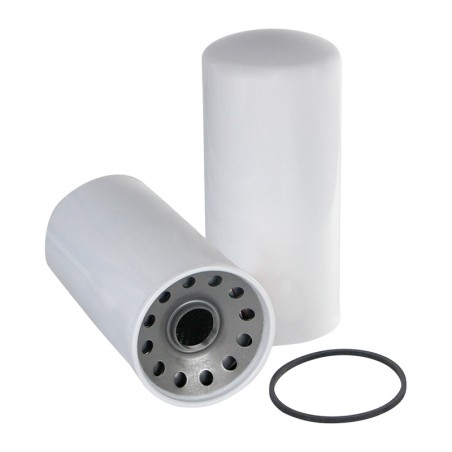

    SK 48526 no Ethanol blends up to E15, Biodiesel blends up to B100 1 ½"-16 UNF 10 151 279 129
    SK 48529 no Ethanol blends up to E85, Methanol blends up to M100, Biodiesel blends up to B100 1 ½"-16 UNF 1 94,6 - -
    SK 48537 yes Gasoline, Biodiesel blends up to B100 1"-12 UNF 2 94,6 220 95
    SK 3069 yes Gasoline, Biodiesel blends up to B100 1"-12 UNF 10

    94,9

    220 95
    SK 48528 yes Gasoline, Biodiesel blends up to B100 1 ½"-16 UNF 2 151 279 129
    SK 3727 yes Gasoline, Biodiesel blends up to B100 1 ½"-16 UNF 10 151 279 129
  • Fuel dispenser filter...
    For filtration of contamination and water absorption in fuels
    Application: gasoline and diesel
    Application range: gasoline and diesel fuel dispenser
    max. working pressure: 3.4 bar
    10 micron and 30 micron: water absorbent media
    Filter change: the filter media expand with the absorption of water and reduced the volume flow
    Volume flow: 68.1 – 151 l/min.
    category_280856.jpg?time=1535109707
    SF-part no. Thread Fineness (µm) Volume flow (l/min.) Height (mm) Diameter (mm)
    SK 3085 1"-12 UNF 10 68,1 220 95
    SK 3342 1"-12 UNF 30 68,1 220 95
    SK 48530 1"-12 UNF 10 94,6 140 95
    SK 3070 1"-12 UNF 30 50 140 95
    SK 3341 1 1/2"-16 UNF 10 94,6 140 95
    SK 3071 1 1/2"-16 UNF 30 94,6 140 95
    SK 48532 1 1/2"-16 UNF 10 94,6 205 95
    SK 48533 1 1/2"-16 UNF 30 94,6 205 95
    SK 48535 1 1/2"-16 UNF 10 94,6 267 95
    SK 3072 1 1/2"-16 UNF 30 94,6 267 95
    SK 48531 1 1/2"-16 UNF 10 151 279 129
    SK 3145 1 1/2"-16 UNF 30 151 279 129
    SK 3147 1 3/8"-12 UNF 30 68,1 220 95
  • Fuel dispenser filter...

    Application: compatible with gasoline, diesel, ethanol and methanol blends up to 10%
    Application range: gasoline and diesel fuel dispenser
    max. working pressure: 3.4 bar
    2 micron: cellulose/microglass resin impregnated media,
    10 micron and 30 micron: cellulose resin impregnated media,
    125 micron: wire mesh
    Volume flow: 94.6 – 151 l/min.

    category_280857.jpg?time=1535109708

    SF-part no. Thread Fineness (µm) Volume flow (l/min.) Height (mm) Diameter (mm)
    SK 3111 1"-12 UNF 30 94,6 140 95
    SK 3275 1 ½"-16 UNF 10 94,6 140 95
    SK 3340 1 ½"-16 UNF 30 94,6 140 95

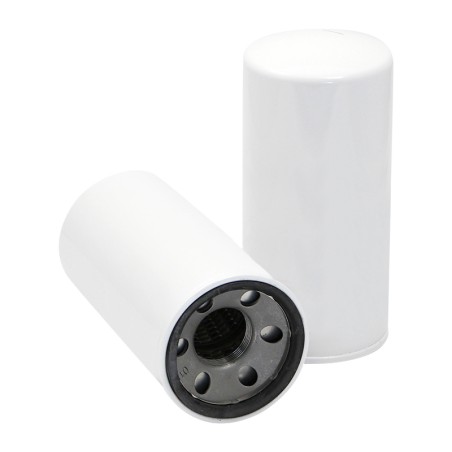

    SK 48527 1 ½"-16 UNF 10 94,6 205 95

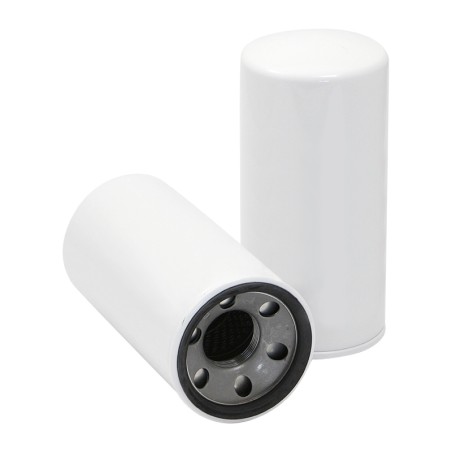

    SK 3103 1 ½"-16 UNF 30 94,6 205 95
    SK 48534 1 ½"-16 UNF 10 94,6 267 95

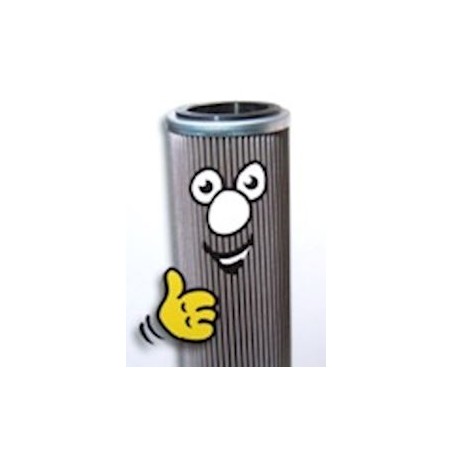

    SK 48539 1 ½"-16 UNF 2 151 279 129
    SK 48524 1 ½"-16 UNF 10 151 279 129
    SK 48525 1 ½"-16 UNF 30 151 279 129

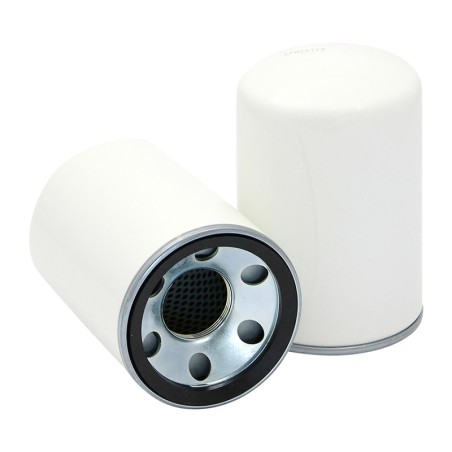

    SPH 20119 1 ½"-16 UNF 125 - 145 96
