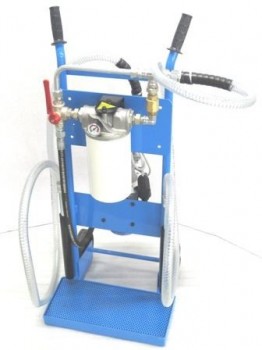

FA 015-BYPASS - Mobile Filter System
3 products
With the FA 015-BYPASS hydraulic systems can be filled or cleaned
For cleaning in off-line filtration
FA 015-BYPASS comes ready to connect, with hose packages and filter cartridge
Maintenance without tools
Fluids can be pumped over without using the filter function (Bypass)
Longer service intervals and higher machine availability
For cleaning in off-line filtration
FA 015-BYPASS comes ready to connect, with hose packages and filter cartridge
Maintenance without tools
Fluids can be pumped over without using the filter function (Bypass)
Longer service intervals and higher machine availability
FA 015-BYPASS
| Nominal flow rate | 15 l/min |
| Hydraulic fluids | Hydraulic oil in according to ISO VG 46 |
| Temperature range of fluids | 0°C - +60°C |
| Filter fineness | Paper 10 µm and 25 µm, Fibre glass 3 µm, 6 µm, 10 µm and 25 µm, wire mesh 60 µm and 125 µm, Water-absorbing filter 10 µm |
| Operating pressure | Maximal 3 bar |
| Length of hoses | Suction hose 2.5 m long – lance 0.40 m long; pressure hose 2.5 m long – lance 0.40 m long |
| Ambient temperature range | 0°C - +50°C |
| Pump |
gear pump |
| Operating voltage/-frequency | 230 V / 50 Hz |
| Power / protection type | 0,25 kW / IP 54 |
| Clogging indicator | indicator |
| Replacement filter cartridge | see first blue frame |
| Weight | 25 kg |
