G 1-1/2" Hydraulic Suction Strainers

For protecting pumps in the suction path of hydraulic systems from any coarse contaminants that may enter the tank
Suitable for filtration of hydraulic fluids and lubricants
Operating temperature -20°C to +100°C
Information on volume flow dependent on test liquid and test conditions*
Flow direction from outside to inside
Increased filter surface by means of corrugation
High operational reliability due to inner perforated framework
Suction must take place below the level of the oil
Optional: can be supplied with bypass

Suction Strainer G 1½" (Size B)

Suction Strainer G 1 1/4" Hydraulic Suction Strainers G 1 1/4"

SF Artikel Length
L1
(mm)		 Length
L2
(mm)		 Diameter D (mm) Size
K
(mm)		 Fineness (µm) Material Mesh Material Thread Material Base Valve (bar)
/
Magnet		 Volumen-
flow* (l/min)
HY 90123 91 81 126 60 100 Wire Steel Steel - 45
HY 10274 92 75 100 70 670 V2A Steel Steel - 120
HY 12148 113 99 140 60 60 Wire Aluminium galvanized - 85
HY 12146 113 99 140 60 90 Wire Aluminium galvanized - 85
HY 90151 132 113 99 46 150 Wire Nylon galvanized - 150
HY 18614 135 117 99 69 60 Wire Nylon Nylon - 150

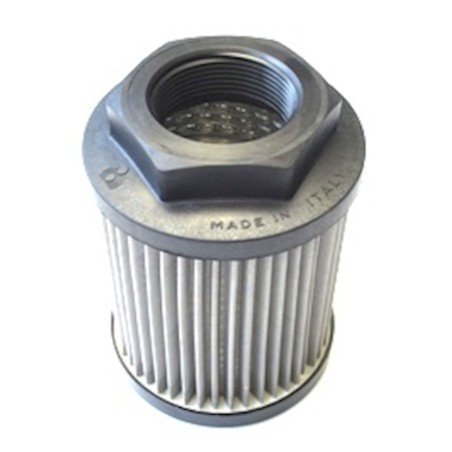

HY 18615 135 117 99 69 90 Wire Nylon Nylon - 150

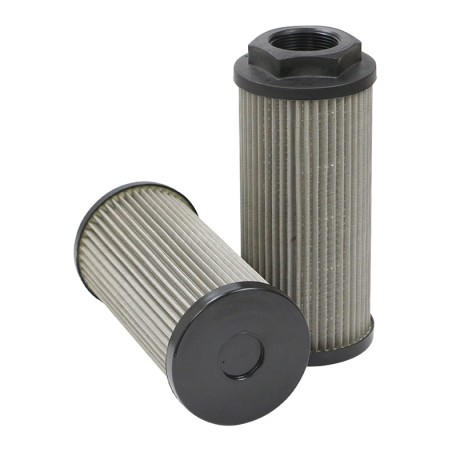

HY 18616 135 117 99 69 250 Wire Nylon Nylon - 150
HY 18567 140 122 85 68 125 Wire Plastic galvanized - 75

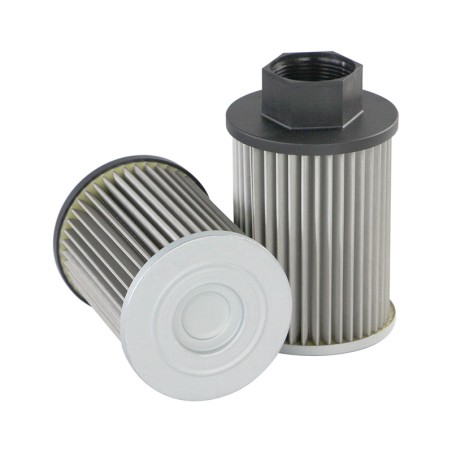

HY 15746 159 131 99 50 100 V2A PA6GF30 galvanized - 240
HY 18617 160 142 130 69 60 Wire Nylon Nylon - 150
HY 18618 160 142 130 69 90 Wire Nylon Nylon - 150
HY 18619 160 142 130 69 250 Wire Nylon Nylon - 150
HY 18525 172 141 130 60 90 Wire Aluminum galvanized - 150
HY 18568 178 160 86 69 125 Wire Plastic galvanized - 90
HY 90394 180 160 115 62 90 Wire Steel Steel - 90
HY 10284 182 165 100 70 100 V2A Aluminum Steel - 120

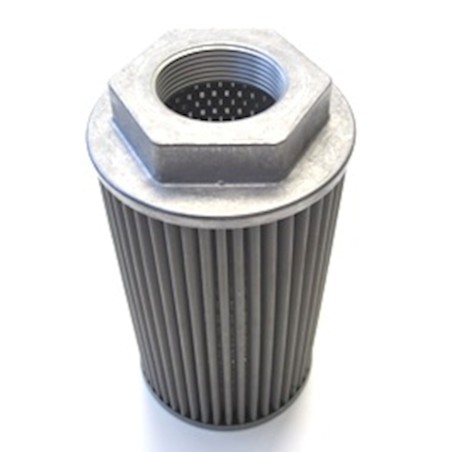

HY 10287 182 165 100 70 100 V2A Aluminum Steel 0,3 120

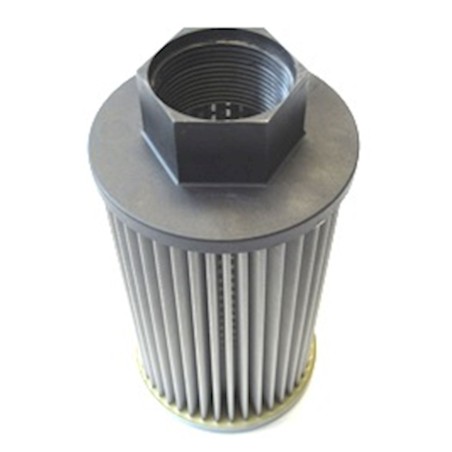

HY 15795 189 160 99 50 100 V2A PA6GF30 galvanized - 290
HY 18929 201 183 86 69 90 Wire Nylon Nylon - 150
HY 18569 203 180 86 69 125 Wire Plastic galvanized - 115
HY 18569-
BYP		 203 185 86 64 125 V2A Nylon galvanized 0,17 130

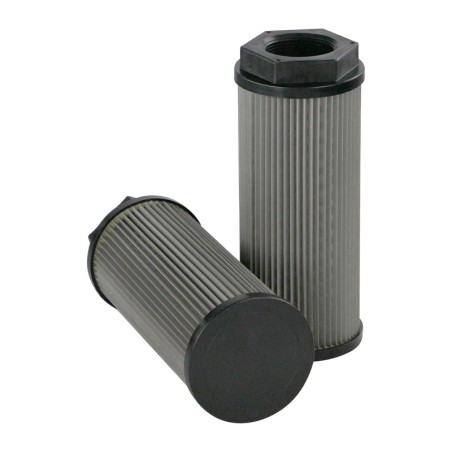

HY 13277 213 196 86 69 75 Wire Polyamide Polyamide - 80
HY 13278 213 196 86 69 125 Wire Polyamide Polyamide - 80
HY 12150 217 206 95 60 90 Wire Aluminium Steel - 90

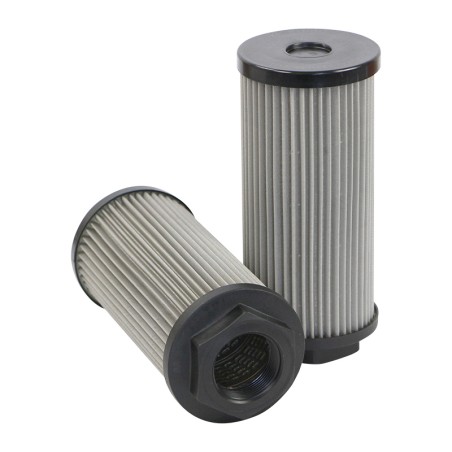

HY 18607 224 206 99 69 60 Wire Nylon Nylon - 150
HY 18608 224 206 99 69 90 Wire Nylon Nylon - 150
HY 18609 224 206 99 69 250 Wire Nylon Nylon - 150

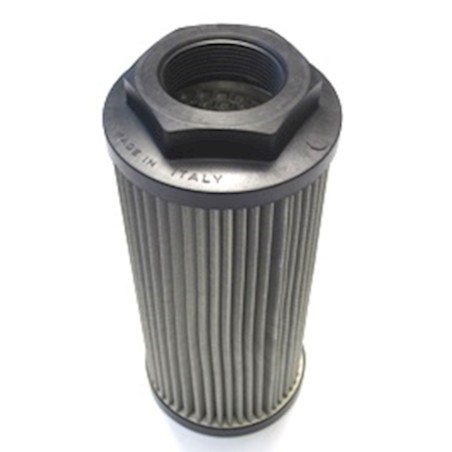

HY 18927 224 206 99 69 700 Wire Nylon Nylon - 150
HY 13278-
BYP		 228 198 86 69 125 Wire Polyamide Polyamide 0,2 80
HY 18608-
BYP		 230 206 99 69 90 Wire Nylon Nylon 0,3 150
HY 18520 237 204 99 60 60 Wire Aluminium galvanized - 150
HY 18521 237 204 99 60 90 Wire Aluminium galvanized - 150

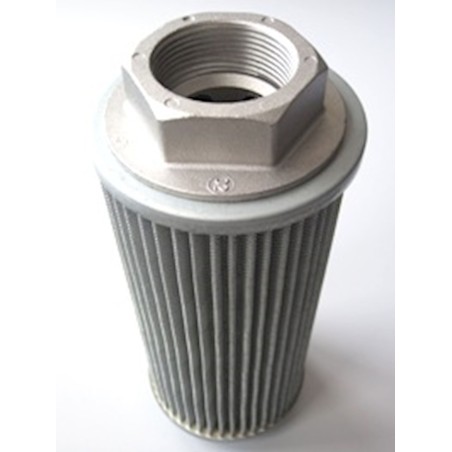

HY 18522 237 204 99 60 250 Wire Aluminium galvanized - 150

For other sizes please enquire
