G 2-1/2" Hydraulic Suction Strainers

For protecting pumps in the suction path of hydraulic systems from any coarse contaminants that may enter the tank
Suitable for filtration of hydraulic fluids and lubricants
Operating temperature -20°C to +100°C
Information on volume flow dependent on test liquid and test conditions*
Flow direction from outside to inside
Increased filter surface by means of corrugation
High operational reliability due to inner perforated framework
Suction must take place below the level of the oil
Optional: can be supplied with bypass

Suction Strainer G 2½" (Size B)

Suction Strainer G 1 1/4" Hydraulic Suction Strainers G 1 1/4"

SF Article Length
L1
(mm)		 Length
L2
(mm)		 Diameter D (mm) Size
K
(mm)		 Fineness (µm) Material Mesh Material Thread Material Base Valve (bar)
/
Magnet		 Volume
flow* (l/min)
HY 10293 191 165 150 Ø89 100 V2A Steel Steel - 350
HY 18574 218 190 150 105 125 Wire Plastic galvanized - 340
HY 18626 270 245 130 101 60 Wire Nylon Nylon - 490
HY 18627 270 245 130 10 90 Wire Nylon Nylon - 490

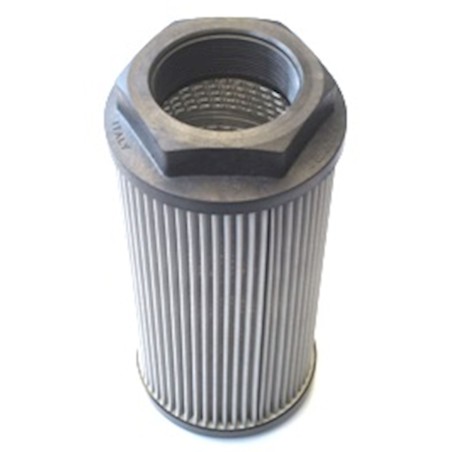

HY 18628 270 245 130 101 250 Wire Nylon Nylon - 490
HY 18627-BYP 277 245 130 101 90 Wire Nylon Nylon 0,3 490
HY 18628-BYP 277 245 130 101 250 Wire Nylon Nylon 0,3 490

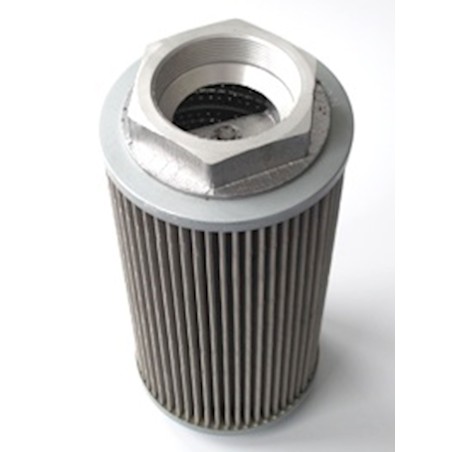

HY 18535 280 250 136 91 60 Wire Aluminium galvanized - 490
HY 18536 280 250 136 91 90 Wire Aluminium galvanized - 490
HY 18537 280 250 136 91 250 Wire Aluminium galvanized - 490
HY 18535-MAGNET 280 250 136 91 60 Wire Aluminium galvanized Magnet 490
HY 18536-MAGNET 280 250 136 91 90 Wire Aluminium galvanized Magnet 490
Suction Strainer G 2 1/2"
